Combustion burner of a mixture of hydrogen and oxygen

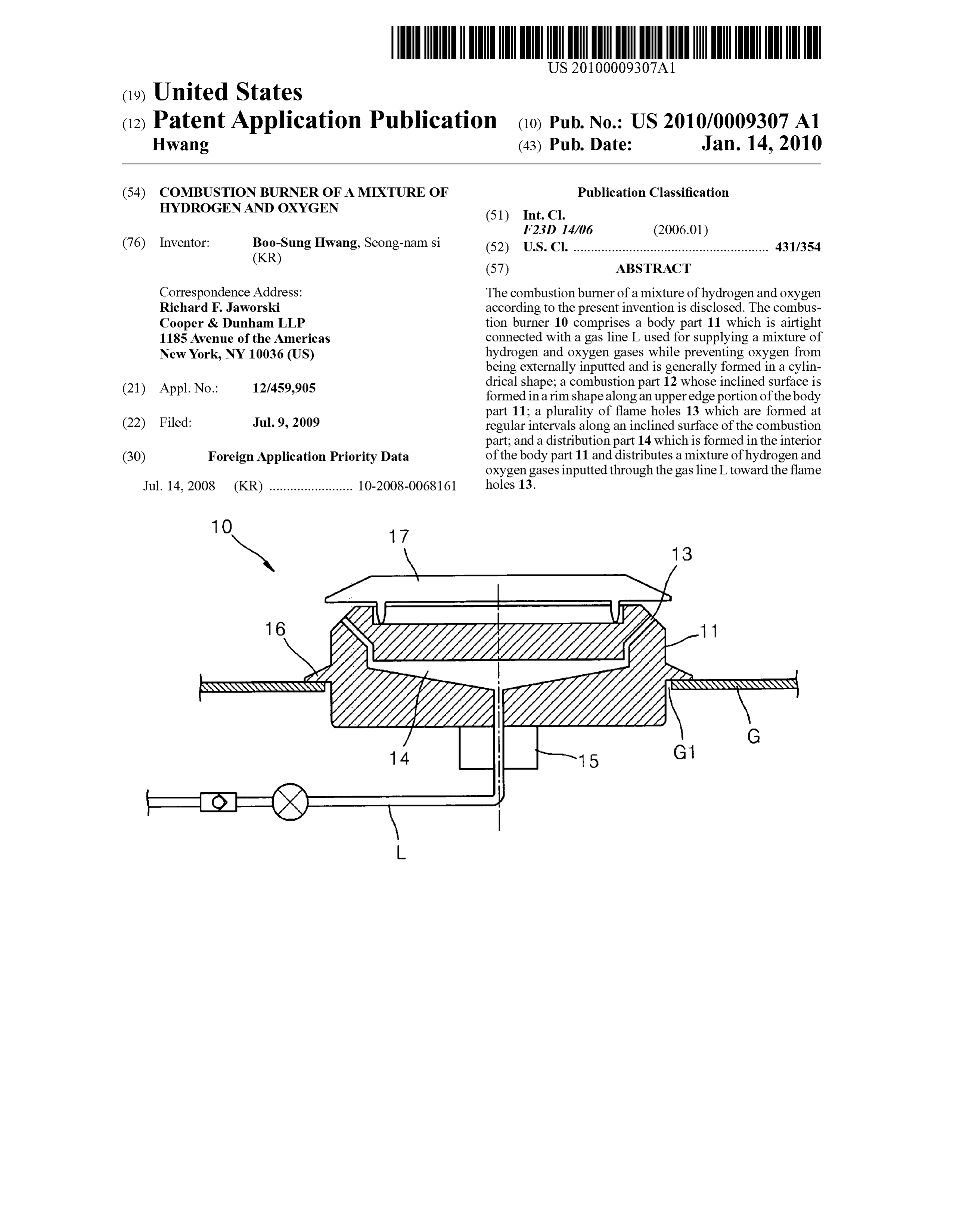

Page 1 — bibliographic record

Page 2

Drawing sheet — no readable text.

Page 3

Drawing sheet — no readable text.

Page 4

Drawing sheet — no readable text.

Page 5

Drawing sheet — no readable text.

Page 6

Drawing sheet — no readable text.

Page 7

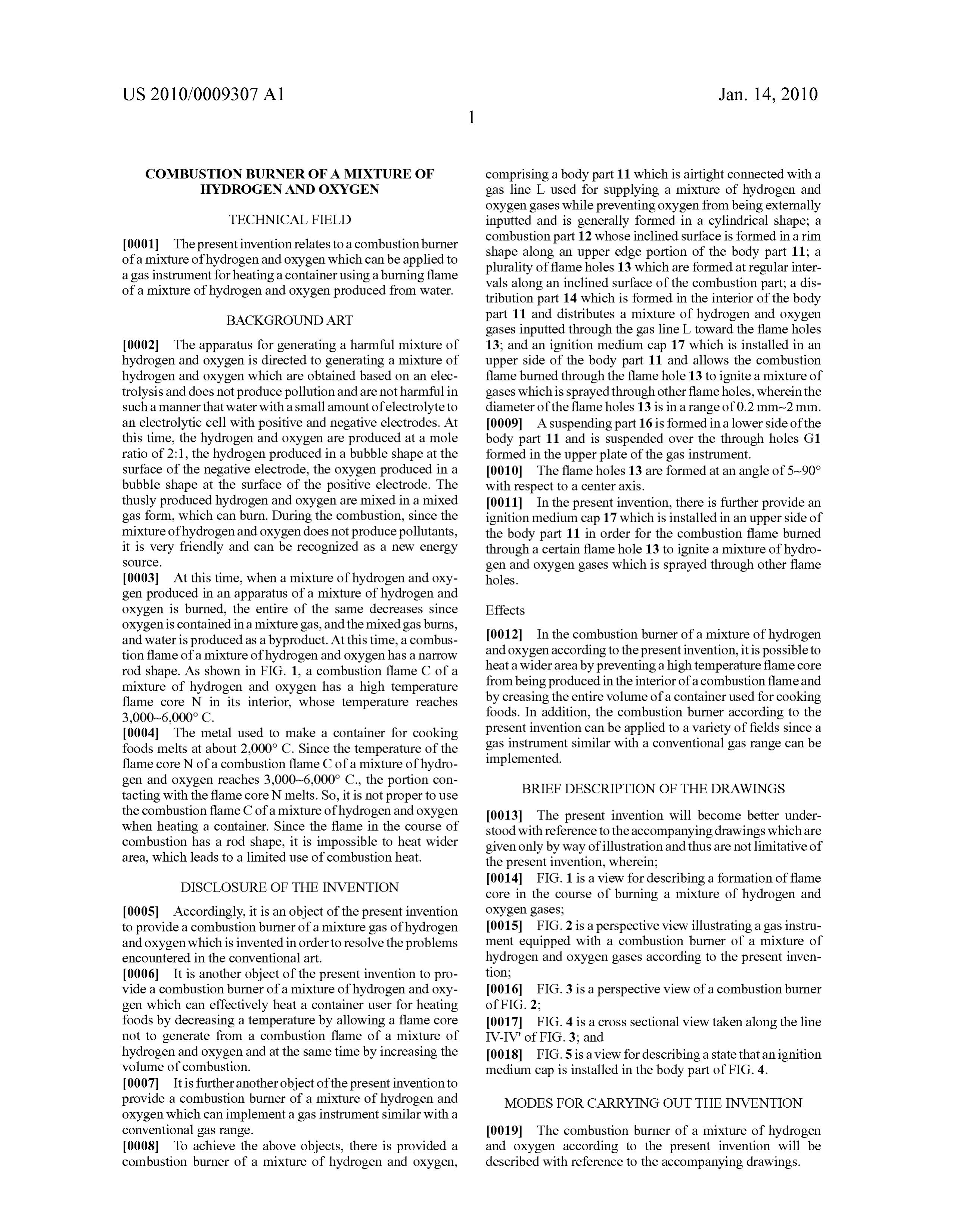

US 2010/0009307 A1 Jan. 14, 2010

COMBUSTION BURNER OF A MIXTURE OF comprising a body part 11 which is airtight connected with a HYDROGEN AND OXYGEN gas line L used for Supplying a mixture of hydrogen and oxygen gases while preventing oxygen from being externally

TECHNICAL FIELD inputted and is generally formed in a cylindrical shape; a 0001. The present invention relates to a combustion burner combustion part 12 whose inclined surface is formed in a rim of a mixture of hydrogen and oxygen which can be applied to shape along an upper edge portion of the body part 11; a a gas instrument for heating a container using a burning flame plurality of flame holes 13 which are formed at regular inter of a mixture of hydrogen and oxygen produced from water. vals along an inclined surface of the combustion part; a dis tribution part 14 which is formed in the interior of the body

BACKGROUND ART part 11 and distributes a mixture of hydrogen and oxygen gases inputted through the gas line L toward the flame holes 0002 The apparatus for generating a harmful mixture of 13; and an ignition medium cap 17 which is installed in an hydrogen and oxygen is directed to generating a mixture of upper side of the body part 11 and allows the combustion hydrogen and oxygen which are obtained based on an elec flame burned through the flame hole 13 to ignite a mixture of trolysis and does not produce pollution and are not harmful in gases which is sprayed through other flame holes, wherein the Such a manner that water with a small amount of electrolyte to diameter of the flame holes 13 is in a range of 0.2 mm-2 mm. an electrolytic cell with positive and negative electrodes. At 0009. A suspending part 16 is formed in a lower side of the this time, the hydrogen and oxygen are produced at a mole body part 11 and is suspended over the through holes G1 ratio of 2:1, the hydrogen produced in a bubble shape at the formed in the upper plate of the gas instrument. Surface of the negative electrode, the oxygen produced in a (0010. The flame holes 13 are formed at an angle of 5-90° bubble shape at the surface of the positive electrode. The with respect to a center axis.

thusly produced hydrogen and oxygen are mixed in a mixed 0011. In the present invention, there is further provide an gas form, which can burn. During the combustion, since the ignition medium cap 17 which is installed in an upper side of mixture of hydrogen and oxygen does not produce pollutants, the body part 11 in order for the combustion flame burned it is very friendly and can be recognized as a new energy through a certain flame hole 13 to ignite a mixture of hydro SOUC. gen and oxygen gases which is sprayed through other flame 0003. At this time, when a mixture of hydrogen and oxy holes.

gen produced in an apparatus of a mixture of hydrogen and oxygen is burned, the entire of the same decreases since Effects oxygen is contained in a mixture gas, and the mixed gas burns, and water is produced as a byproduct. At this time, a combus 0012. In the combustion burner of a mixture of hydrogen tion flame of a mixture of hydrogen and oxygen has a narrow and oxygen according to the present invention, it is possible to rod shape. As shown in FIG. 1, a combustion flame C of a heat a wider area by preventing a high temperature flame core mixture of hydrogen and oxygen has a high temperature from being produced in the interior of a combustion flame and flame core N in its interior, whose temperature reaches by creasing the entire Volume of a container used for cooking 3,000-6,000° C. foods. In addition, the combustion burner according to the 0004. The metal used to make a container for cooking present invention can be applied to a variety of fields since a foods melts at about 2.000° C. Since the temperature of the gas instrument similar with a conventional gas range can be flame core N of a combustion flame C of a mixture of hydro implemented.

gen and oxygen reaches 3,000-6,000° C., the portion con BRIEF DESCRIPTION OF THE DRAWINGS tacting with the flame core N melts. So, it is not proper to use the combustion flame C of a mixture of hydrogen and oxygen 0013 The present invention will become better under when heating a container. Since the flame in the course of stood with reference to the accompanying drawings which are combustion has a rod shape, it is impossible to heat wider given only by way of illustration and thus are not limitative of area, which leads to a limited use of combustion heat. the present invention, wherein;

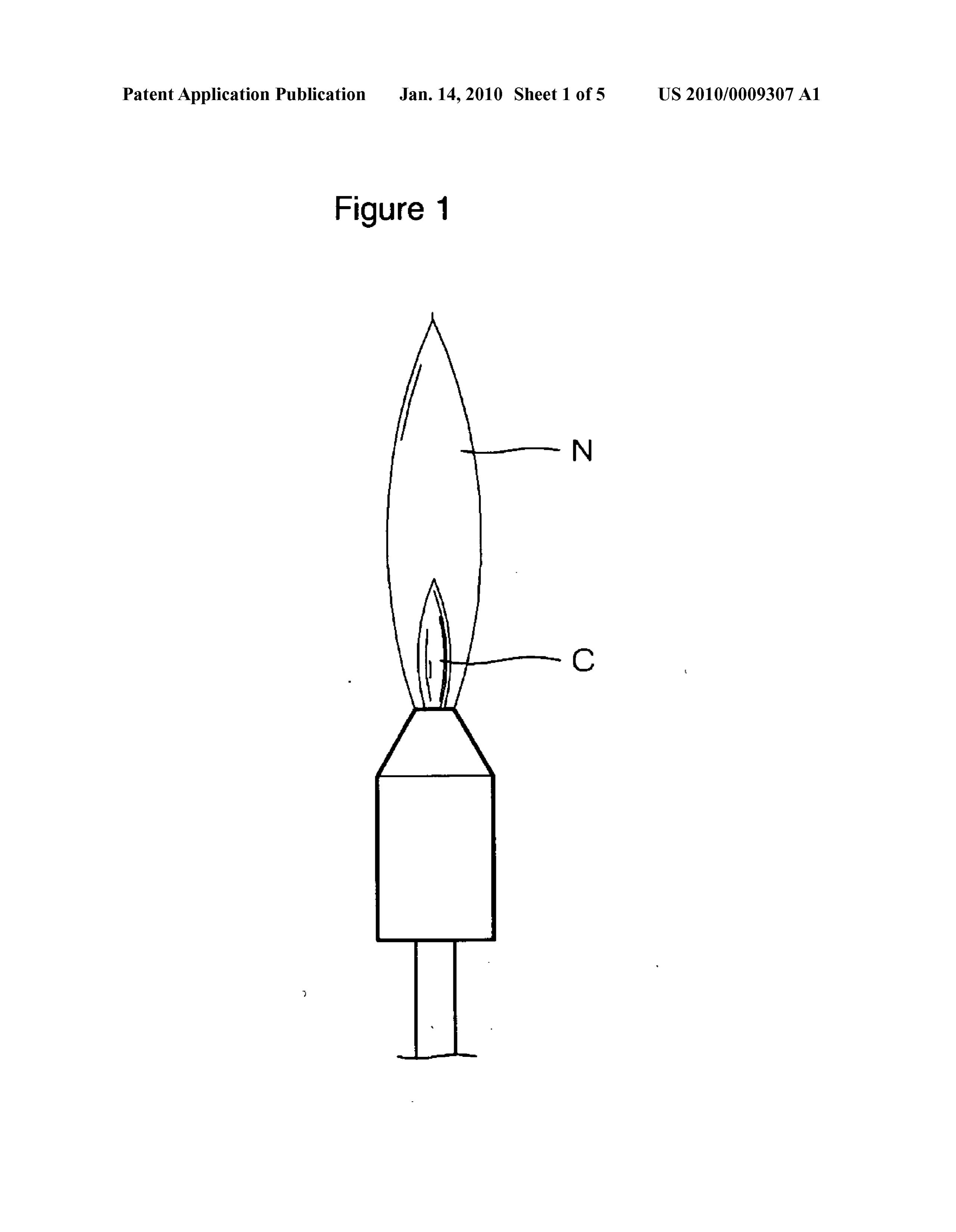

DISCLOSURE OF THE INVENTION 0014 FIG. 1 is a view for describing a formation of flame core in the course of burning a mixture of hydrogen and 0005 Accordingly, it is an object of the present invention OXygen gases;

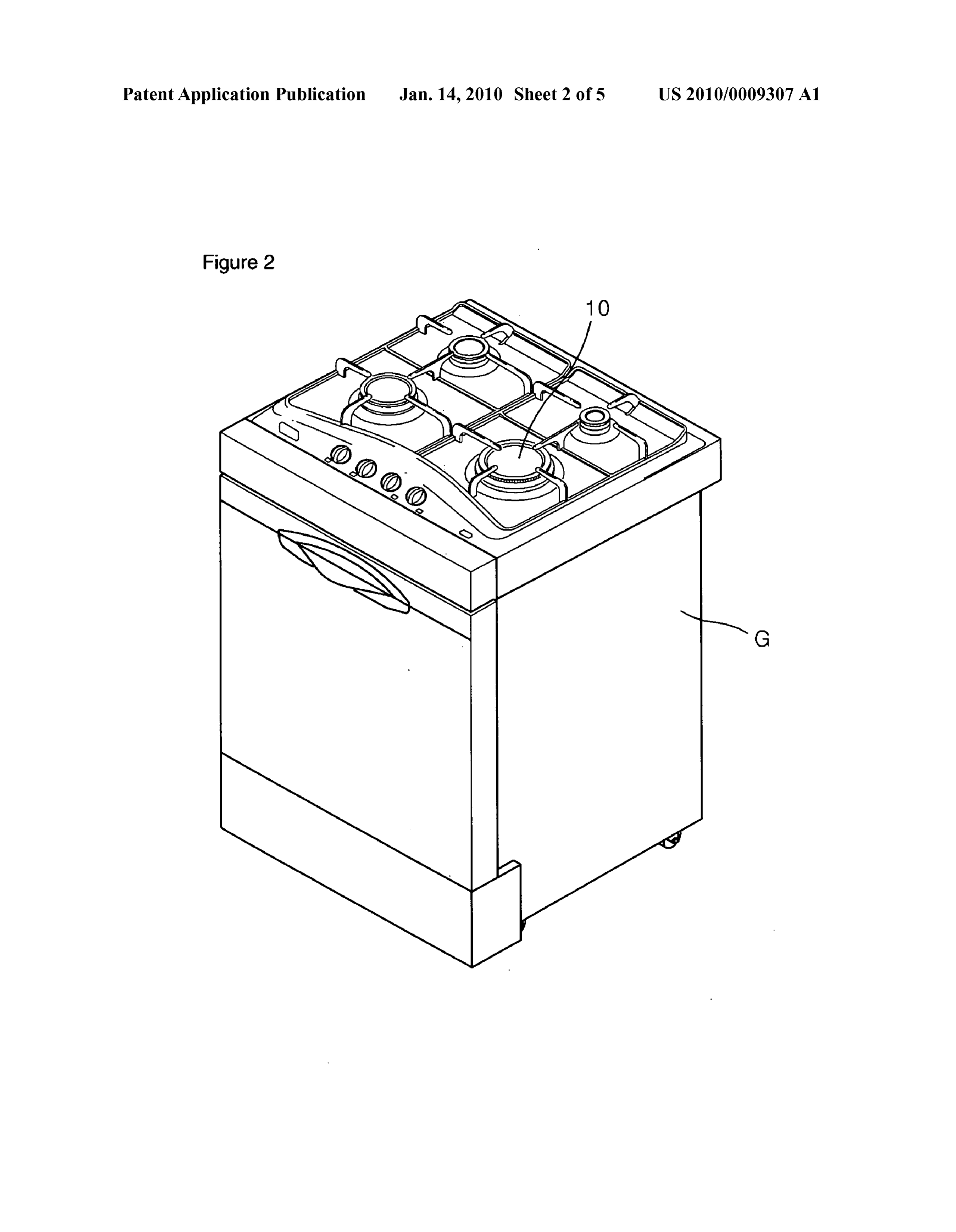

to provide a combustion burner of a mixture gas of hydrogen 0015 FIG. 2 is a perspective view illustrating a gas instru and oxygen which is invented in order to resolve the problems ment equipped with a combustion burner of a mixture of encountered in the conventional art. hydrogen and oxygen gases according to the present inven 0006. It is another object of the present invention to pro tion;

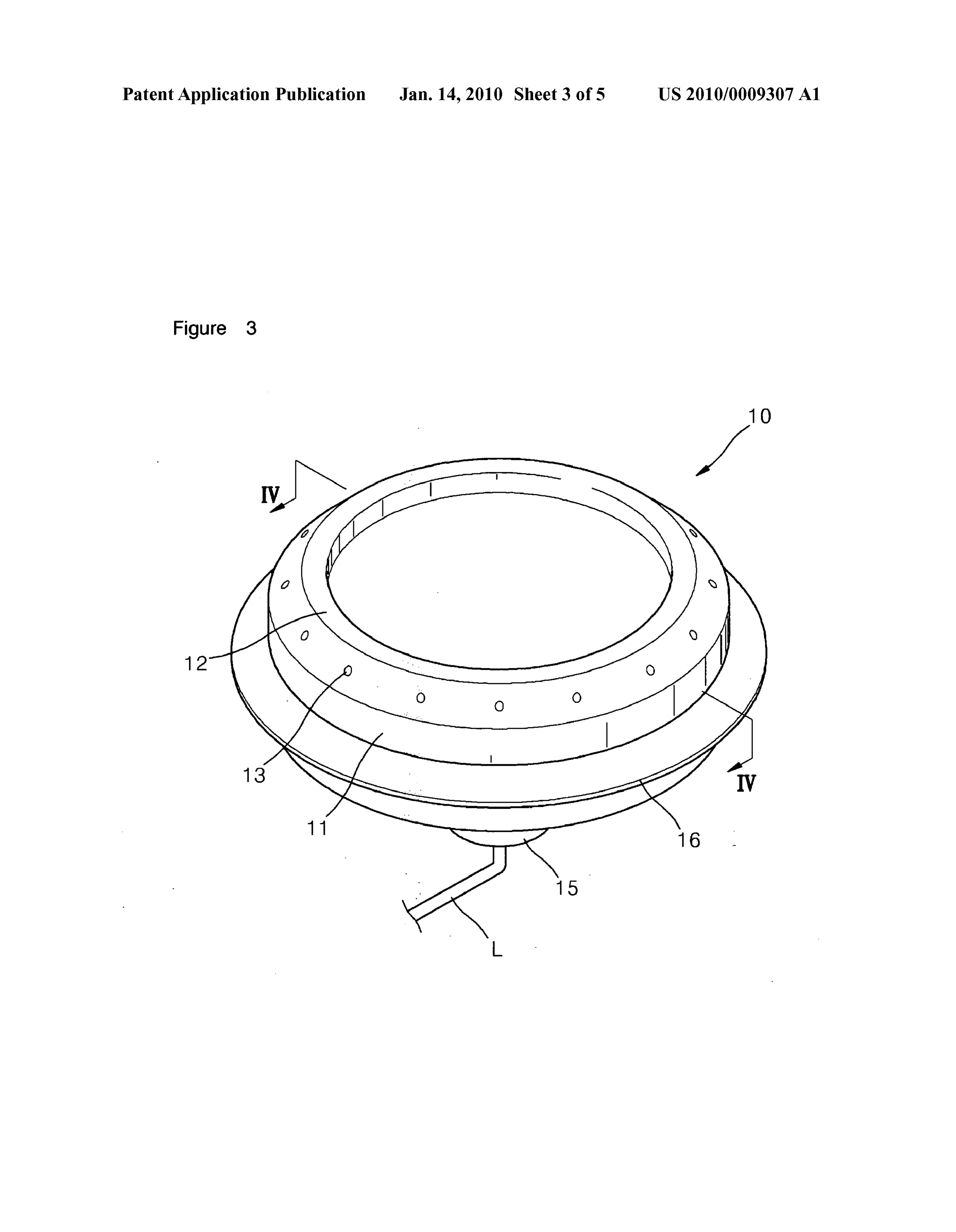

vide a combustion burner of a mixture of hydrogen and oxy 0016 FIG. 3 is a perspective view of a combustion burner gen which can effectively heat a container user for heating of FIG. 2:

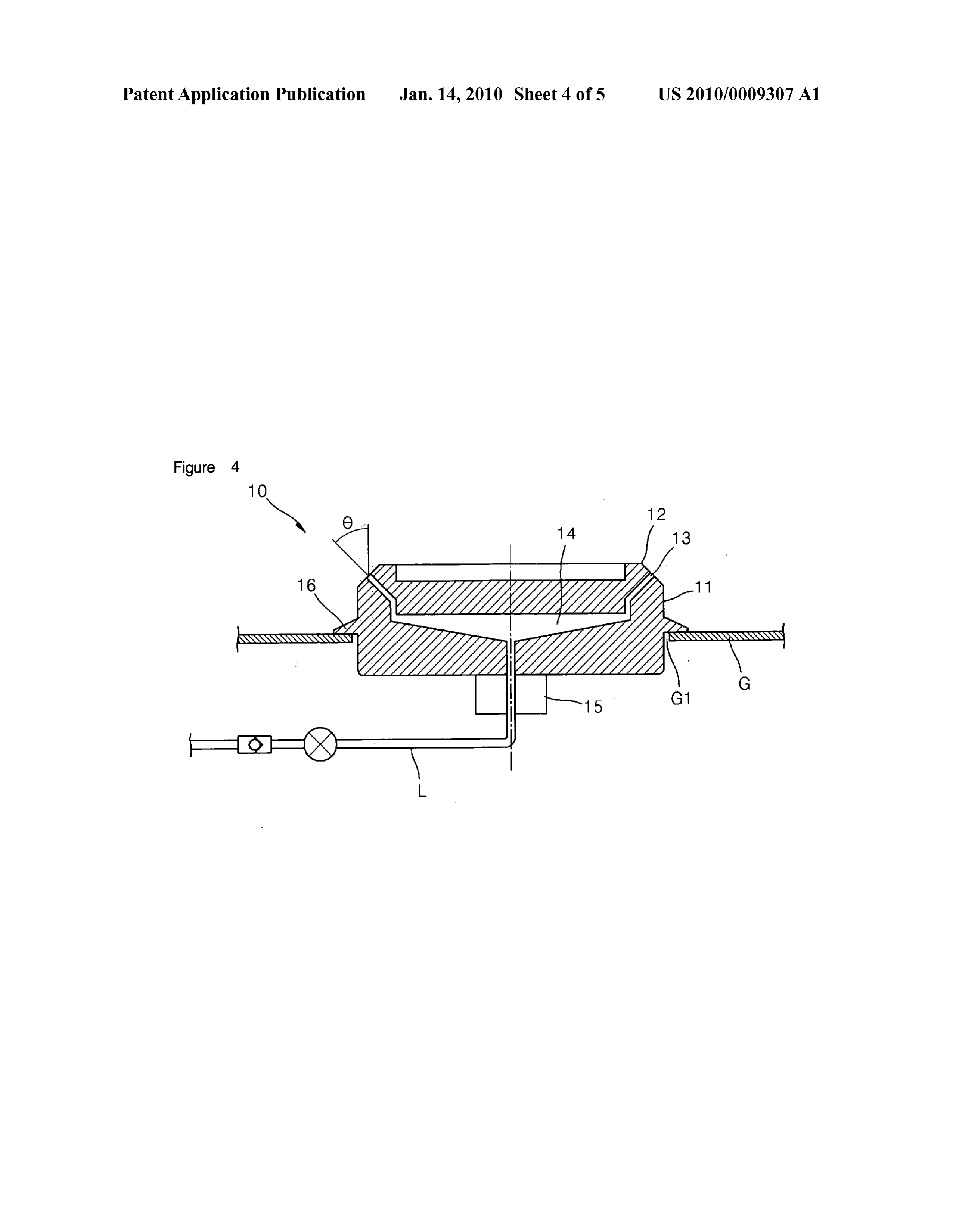

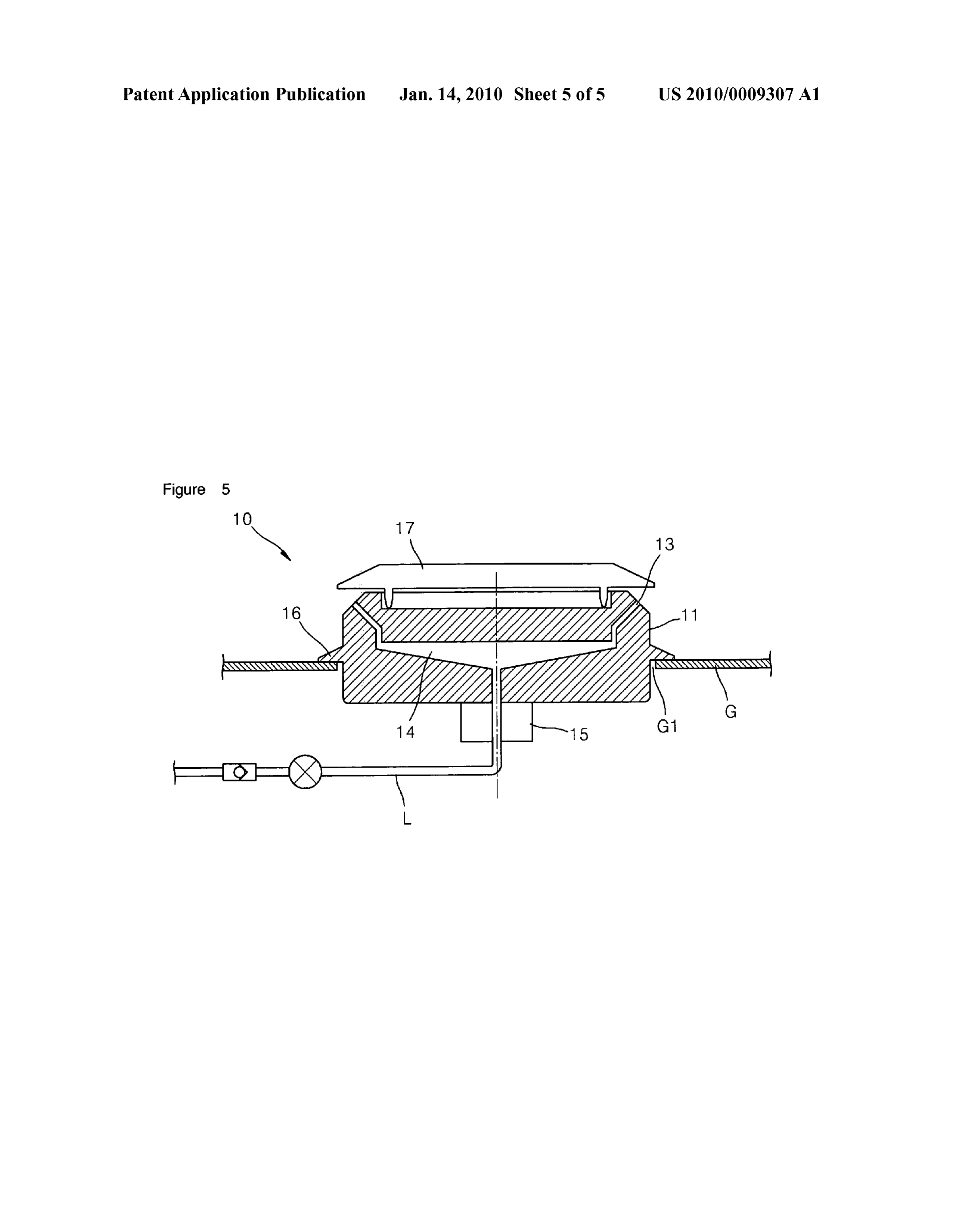

foods by decreasing a temperature by allowing a flame core 0017 FIG. 4 is a cross sectional view taken along the line not to generate from a combustion flame of a mixture of IV-IV of FIG. 3; and hydrogen and oxygen and at the same time by increasing the 0018 FIG. 5 is a view for describing a state that an ignition Volume of combustion. medium cap is installed in the body part of FIG. 4. 0007. It is further another object of the present invention to provide a combustion burner of a mixture of hydrogen and MODES FOR CARRYING OUT THE INVENTION oxygen which can implement a gas instrument similar with a conventional gas range. 0019. The combustion burner of a mixture of hydrogen 0008 To achieve the above objects, there is provided a and oxygen according to the present invention will be combustion burner of a mixture of hydrogen and oxygen, described with reference to the accompanying drawings.

Page 8

US 2010/0009307 A1 Jan. 14, 2010

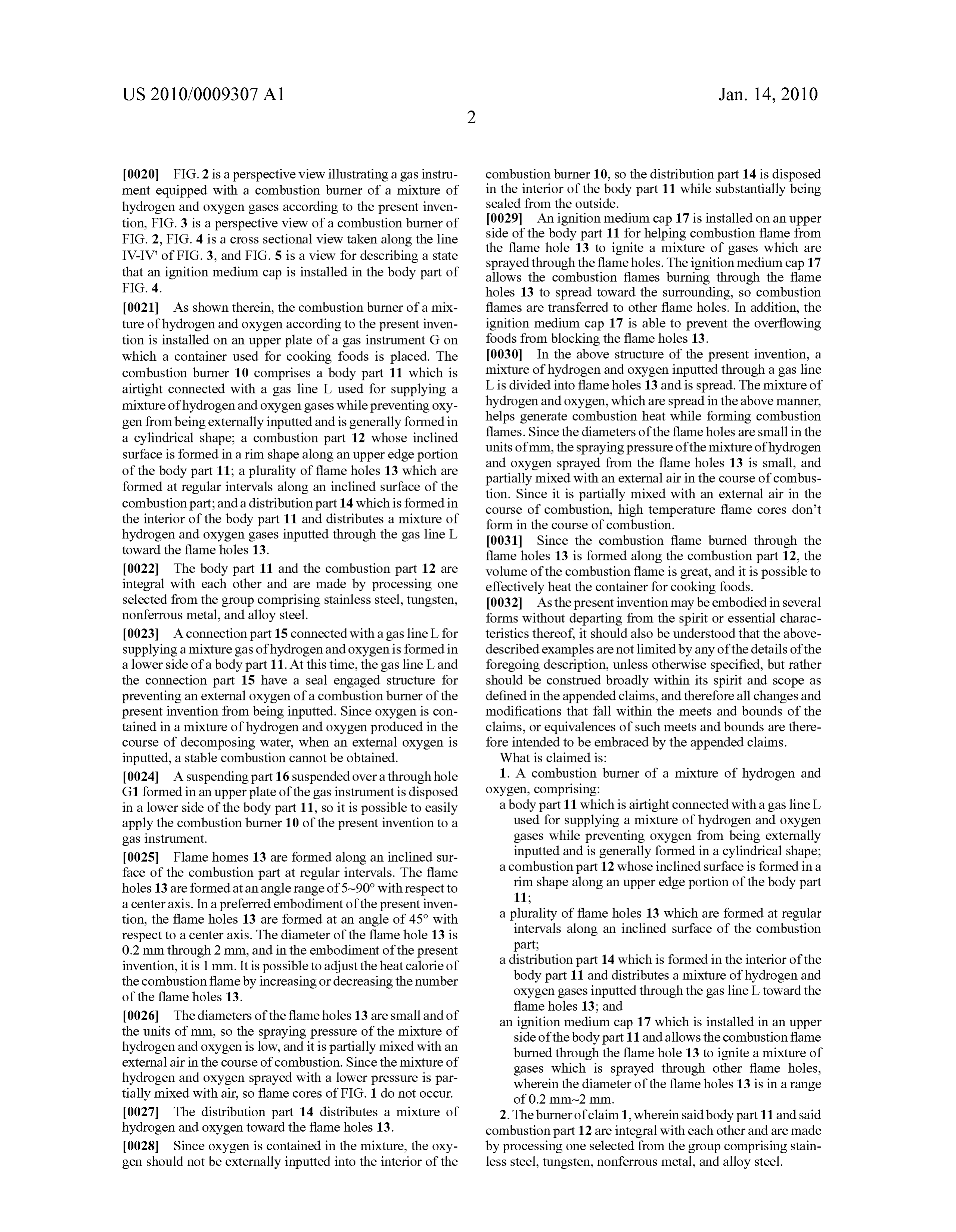

0020 FIG. 2 is a perspective view illustrating a gas instru combustion burner 10, so the distribution part 14 is disposed ment equipped with a combustion burner of a mixture of in the interior of the body part 11 while substantially being hydrogen and oxygen gases according to the present inven sealed from the outside.

tion, FIG. 3 is a perspective view of a combustion burner of 0029. An ignition medium cap 17 is installed on an upper FIG. 2, FIG. 4 is a cross sectional view taken along the line side of the body part 11 for helping combustion flame from IV-IV of FIG. 3, and FIG. 5 is a view for describing a state the flame hole 13 to ignite a mixture of gases which are sprayed through the flame holes. The ignition medium cap 17 that an ignition medium cap is installed in the body part of allows the combustion flames burning through the flame FIG. 4. holes 13 to spread toward the Surrounding, so combustion 0021. As shown therein, the combustion burner of a mix flames are transferred to other flame holes. In addition, the ture of hydrogen and oxygen according to the present inven ignition medium cap 17 is able to prevent the overflowing tion is installed on an upper plate of a gas instrument G on foods from blocking the flame holes 13. which a container used for cooking foods is placed. The 0030. In the above structure of the present invention, a combustion burner 10 comprises a body part 11 which is mixture of hydrogen and oxygen inputted through a gas line airtight connected with a gas line L used for Supplying a L is divided into flame holes 13 and is spread. The mixture of mixture of hydrogen and oxygen gases while preventing oxy hydrogen and oxygen, which are spread in the above manner, gen from being externally inputted and is generally formed in helps generate combustion heat while forming combustion flames. Since the diameters of the flame holes are small in the a cylindrical shape; a combustion part 12 whose inclined units of mm, the spraying pressure of the mixture of hydrogen Surface is formed in a rim shape along an upper edge portion and oxygen sprayed from the flame holes 13 is Small, and of the body part 11; a plurality of flame holes 13 which are partially mixed with an external air in the course of combus formed at regular intervals along an inclined surface of the tion. Since it is partially mixed with an external air in the combustion part; and a distribution part 14 which is formed in course of combustion, high temperature flame cores don't the interior of the body part 11 and distributes a mixture of form in the course of combustion. hydrogen and oxygen gases inputted through the gas line L. 0031 Since the combustion flame burned through the toward the flame holes 13.

flame holes 13 is formed along the combustion part 12, the 0022. The body part 11 and the combustion part 12 are Volume of the combustion flame is great, and it is possible to integral with each other and are made by processing one effectively heat the container for cooking foods. selected from the group comprising stainless steel, tungsten, 0032. As the present invention may be embodied in several nonferrous metal, and alloy steel. forms without departing from the spirit or essential charac 0023. A connection part 15 connected with a gas line L for teristics thereof, it should also be understood that the above Supplying a mixture gas of hydrogen and oxygen is formed in described examples are not limited by any of the details of the a lower side of a body part 11. At this time, the gas line Land foregoing description, unless otherwise specified, but rather the connection part 15 have a seal engaged structure for should be construed broadly within its spirit and scope as preventing an external oxygen of a combustion burner of the defined in the appended claims, and therefore all changes and present invention from being inputted. Since oxygen is con modifications that fall within the meets and bounds of the tained in a mixture of hydrogen and oxygen produced in the claims, or equivalences of Such meets and bounds are there course of decomposing water, when an external oxygen is fore intended to be embraced by the appended claims. inputted, a stable combustion cannot be obtained. What is claimed is:

0024. A suspending part 16 suspended over a through hole 1. A combustion burner of a mixture of hydrogen and G1 formed in an upper plate of the gas instrument is disposed oxygen, comprising:

in a lower side of the body part 11, so it is possible to easily a body part 11 which is airtight connected with a gas line L. apply the combustion burner 10 of the present invention to a used for Supplying a mixture of hydrogen and oxygen gas instrument. gases while preventing oxygen from being externally 0025 Flame homes 13 are formed along an inclined sur inputted and is generally formed in a cylindrical shape; face of the combustion part at regular intervals. The flame a combustion part 12 whose inclined Surface is formed in a holes 13 are formed at an angle range of 5-90° with respect to rim shape along an upper edge portion of the body part a center axis. In a preferred embodiment of the present inven 11:

tion, the flame holes 13 are formed at an angle of 45° with a plurality of flame holes 13 which are formed at regular respect to a center axis. The diameter of the flame hole 13 is intervals along an inclined Surface of the combustion 0.2 mm through 2 mm, and in the embodiment of the present part;

invention, it is 1 mm. It is possible to adjust the heat calorie of a distribution part 14 which is formed in the interior of the the combustion flame by increasing or decreasing the number body part 11 and distributes a mixture of hydrogen and of the flame holes 13. oxygen gases inputted through the gas line L toward the flame holes 13; and 0026. The diameters of the flame holes 13 are small and of an ignition medium cap 17 which is installed in an upper the units of mm, so the spraying pressure of the mixture of side of the body part 11 and allows the combustion flame hydrogen and oxygen is low, and it is partially mixed with an burned through the flame hole 13 to ignite a mixture of external air in the course of combustion. Since the mixture of hydrogen and oxygen sprayed with a lower pressure is par gases which is sprayed through other flame holes, tially mixed with air, so flame cores of FIG. 1 do not occur. wherein the diameter of the flame holes 13 is in a range

0027. The distribution part 14 distributes a mixture of 2. The burner of claim 1, wherein said body part 11 and said hydrogen and oxygen toward the flame holes 13. combustion part 12 are integral with each other and are made 0028. Since oxygen is contained in the mixture, the oxy by processing one selected from the group comprising stain gen should not be externally inputted into the interior of the less steel, tungsten, nonferrous metal, and alloy steel.

Page 9

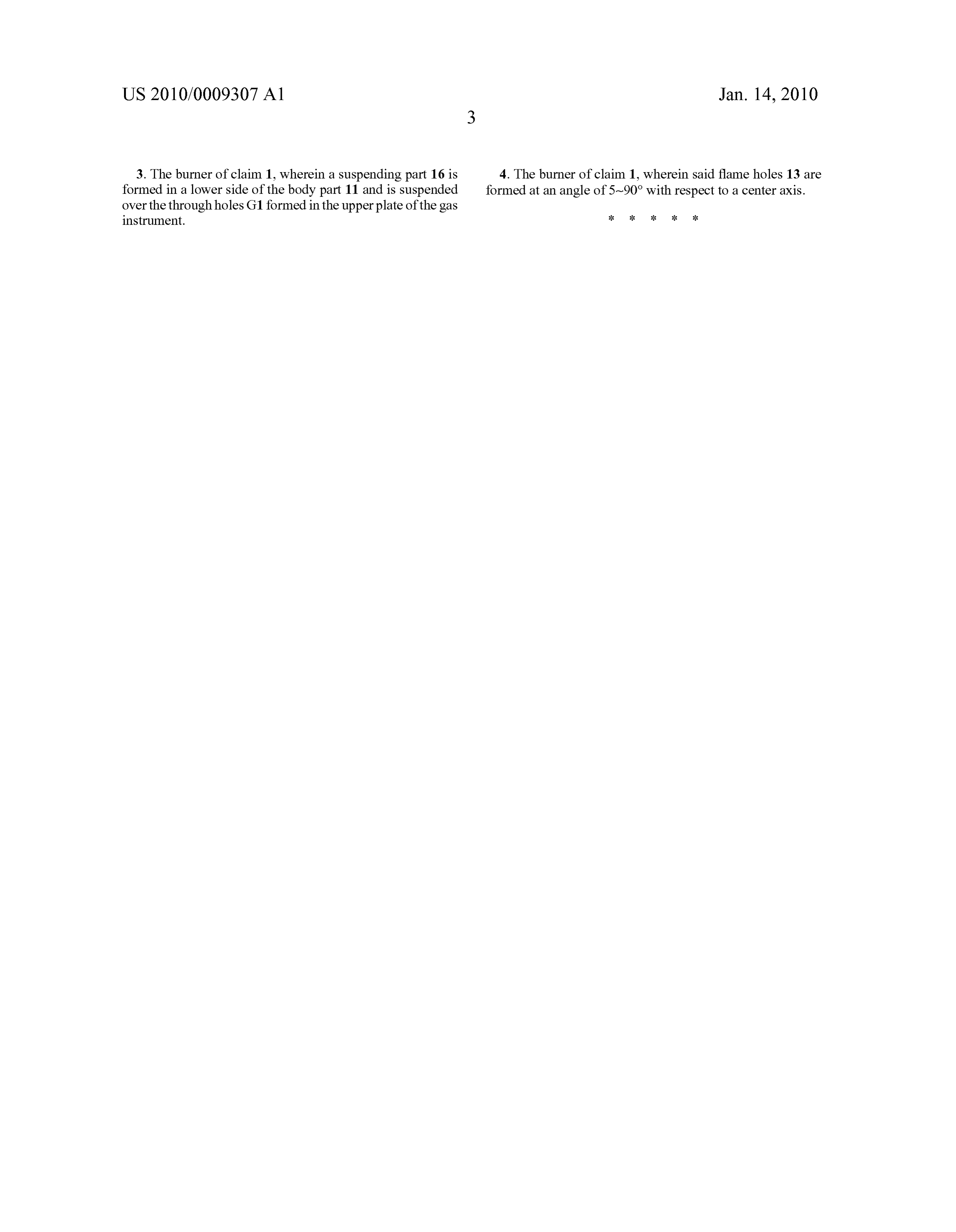

US 2010/0009307 A1 Jan. 14, 2010 3. The burner of claim 1, wherein a suspending part 16 is 4. The burner of claim 1, wherein said flame holes 13 are formed in a lower side of the body part 11 and is suspended formed at an angle of 5-90° with respect to a center axis. over the through holes G1 formed in the upper plate of the gas instrument. ck
