patent · US20080035123A1
Hydro-energy carboration and combustion system yielding power and no hydrocarbon emissions
14 February 2008
Page 1 — bibliographic record

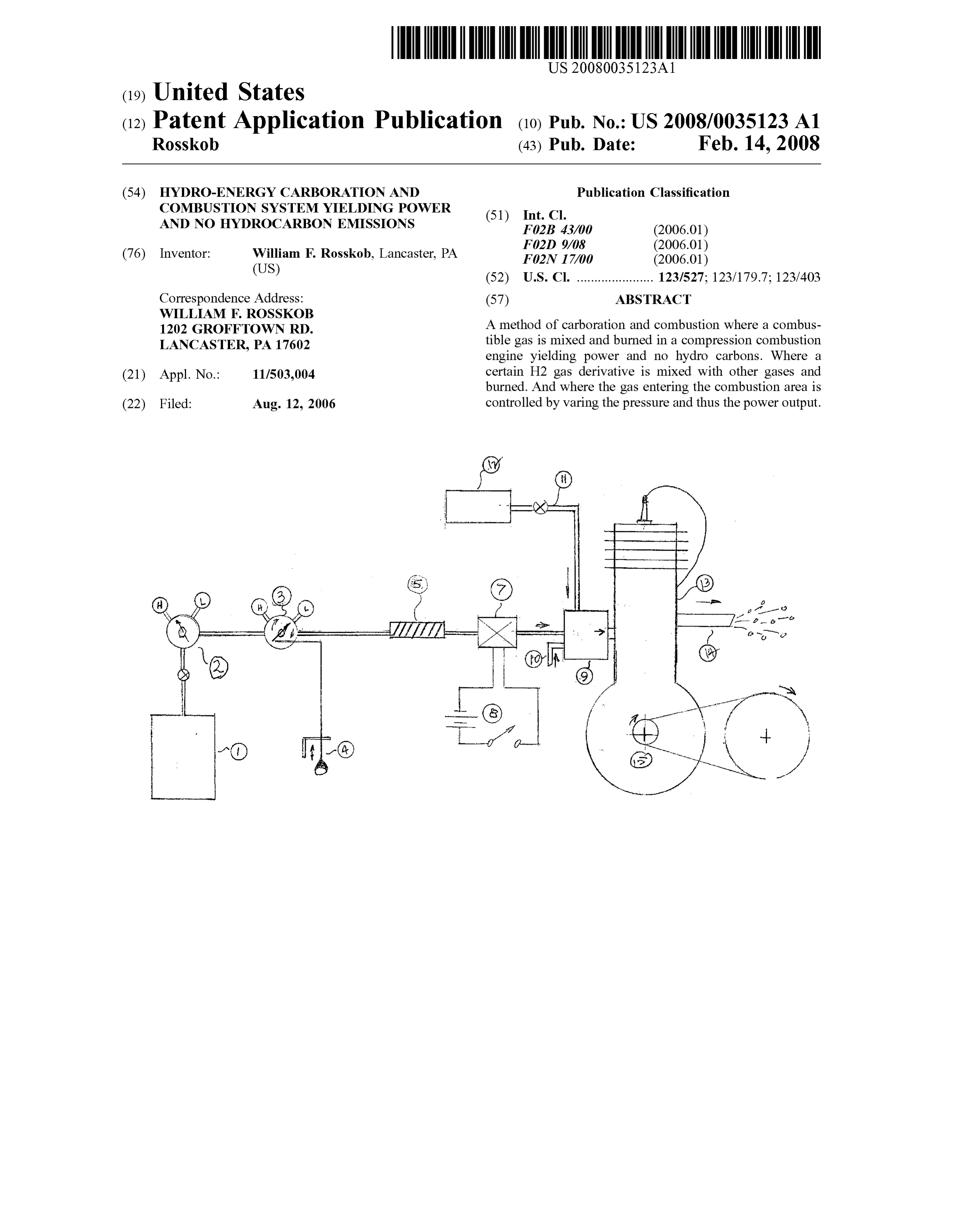

(19) United States (12) Patent Application Publication (10) Pub. No.: US 2008/0035123 A1
ROSSkob (43) Pub. Date: Feb. 14, 2008 (54) HYDRO-ENERGY CARBORATION AND Publication Classification COMBUSTION SYSTEMYIELDING POWER (51) Int. Cl
AND NO HYDROCARBON EMISSIONS FO2B 43/00 (2006.01)
(76) Inventor: Wyam F. Rosskob, Lancaster, PA (ER Fo 388 (US) (52) U.S. Cl. ...................... 123/527; 123/179.7:123/403 Correspondence Address: (57) ABSTRACT
WILLAM F. ROSSKOB
12O2 GROFFTOWN RD. A method of carboration and combustion where a combus LANCASTER PA 176O2 tible gas is mixed and burned in a compression combustion 9 engine yielding power and no hydro carbons. Where a (21) Appl. No.: 11/503,004 certain H2 gas derivative is mixed with other gases and burned. And where the gas entering the combustion area is (22) Filed: Aug. 12, 2006 controlled by varing the pressure and thus the power output.
Page 2
Drawing sheet — no readable text.
Page 3
Drawing sheet — no readable text.
Page 4

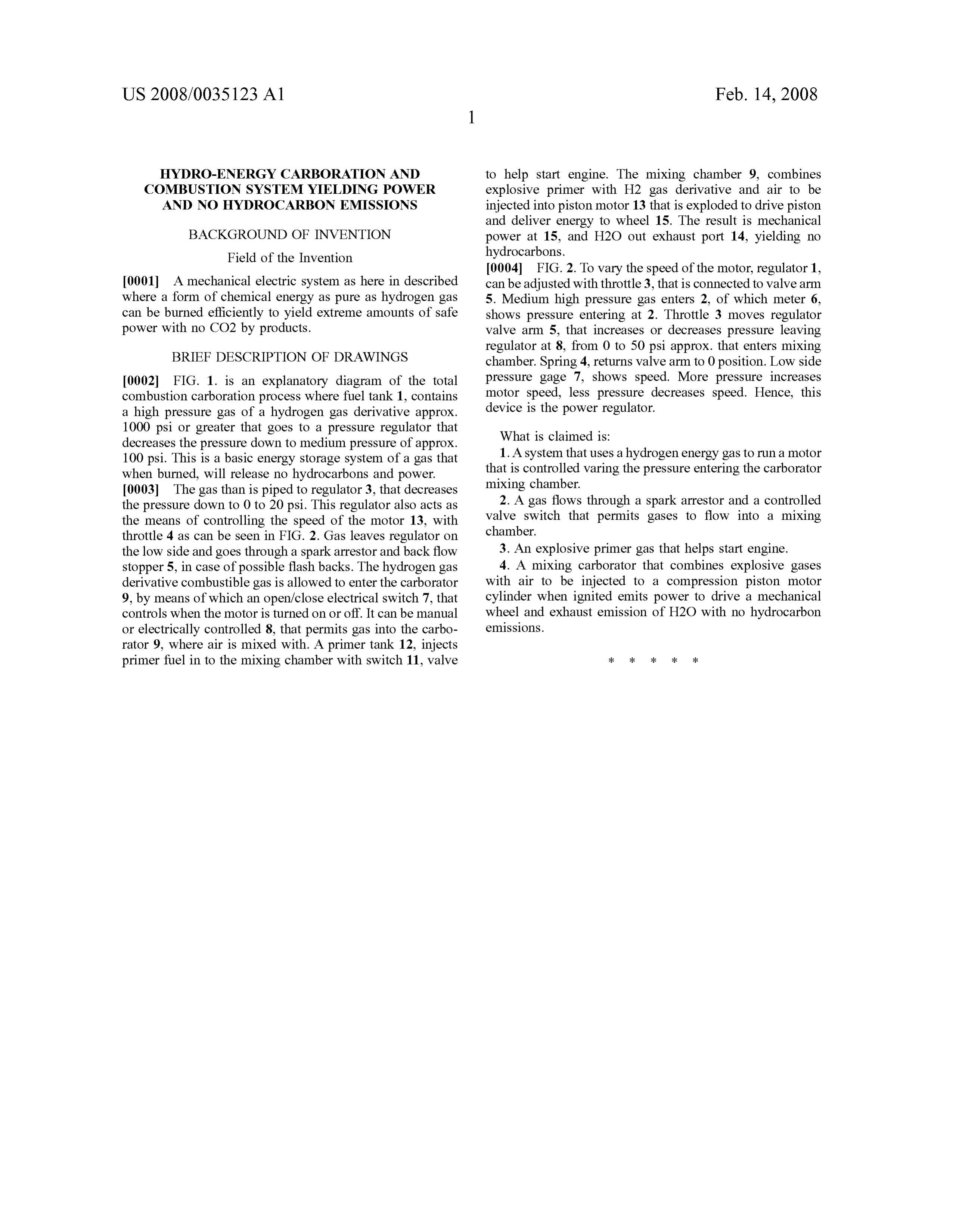

US 2008/00351 23 A1 Feb. 14, 2008
HYDRO-ENERGY CARBORATION AND to help start engine. The mixing chamber 9, combines COMBUSTION SYSTEMYIELDING POWER explosive primer with H2 gas derivative and air to be AND NO HYDROCARBON EMISSIONS injected into piston motor 13 that is exploded to drive piston and deliver energy to wheel 15. The result is mechanical
BACKGROUND OF INVENTION power at 15, and H2O out exhaust port 14, yielding no Field of the Invention hydrocarbons.

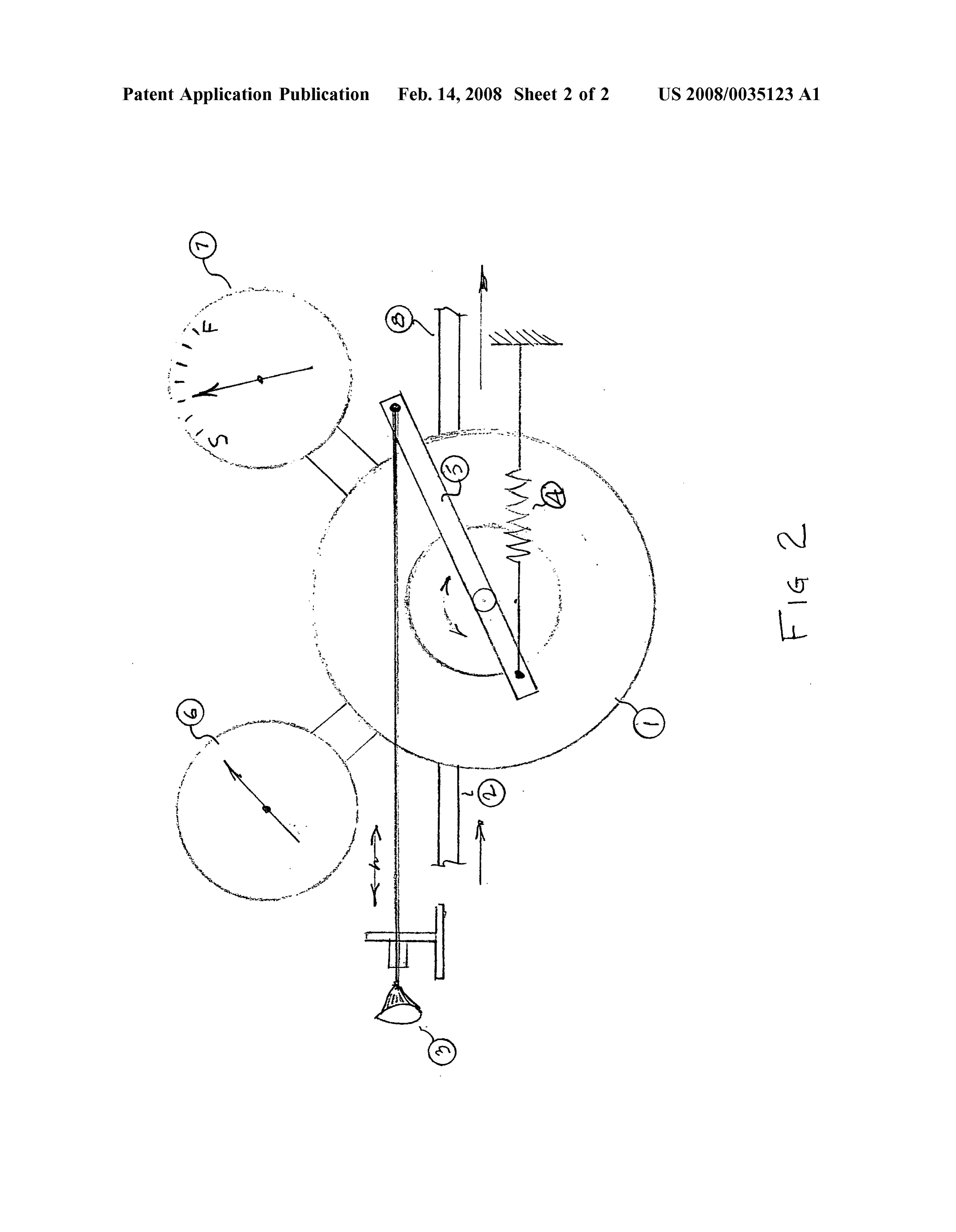

0004 FIG. 2. To vary the speed of the motor, regulator 1, 0001. A mechanical electric system as here in described can be adjusted with throttle 3, that is connected to valve arm where a form of chemical energy as pure as hydrogen gas 5. Medium high pressure gas enters 2, of which meter 6, can be burned efficiently to yield extreme amounts of safe shows pressure entering at 2. Throttle 3 moves regulator power with no CO2 by products. valve arm 5, that increases or decreases pressure leaving regulator at 8, from 0 to 50 psi approx. that enters mixing

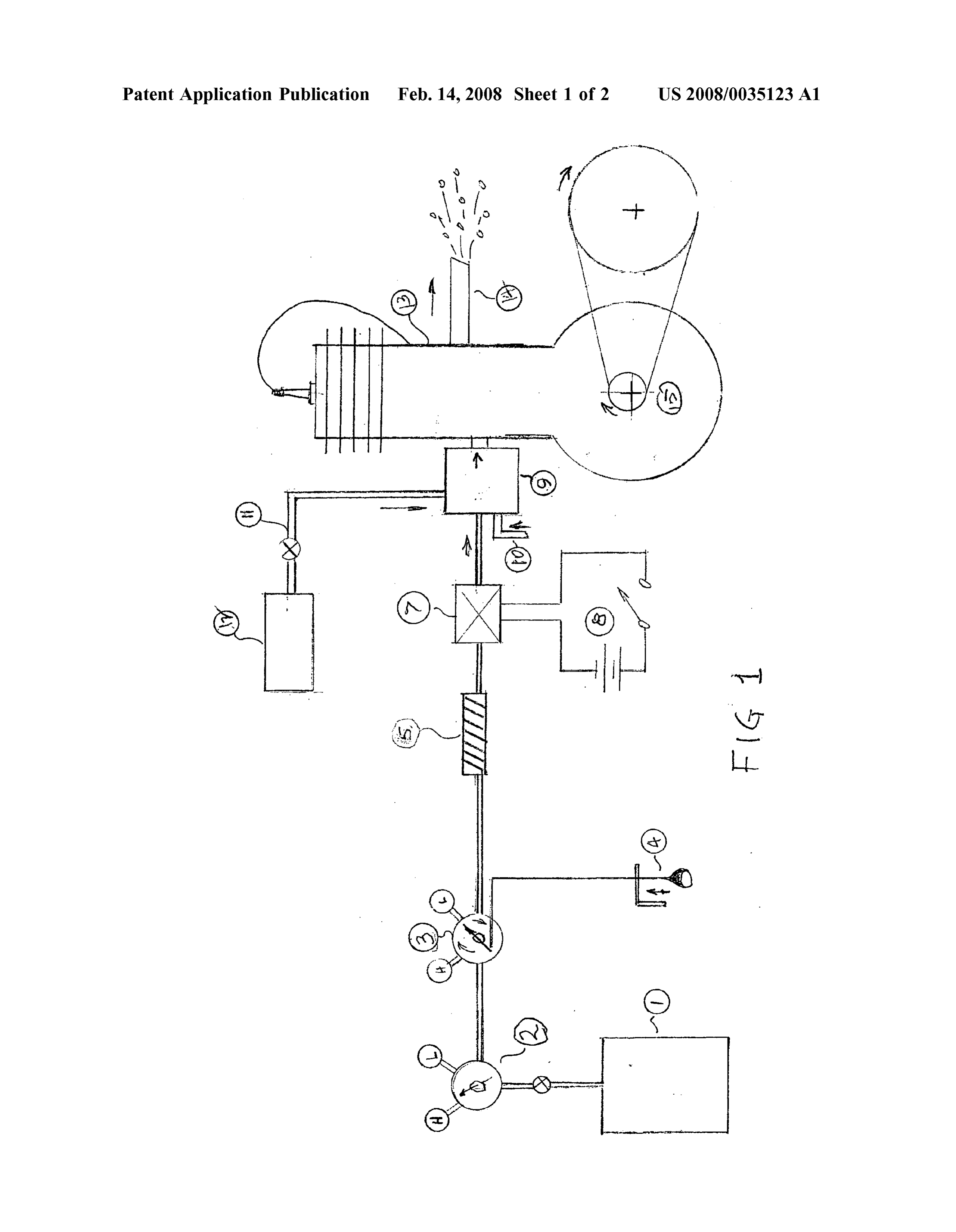

BRIEF DESCRIPTION OF DRAWINGS chamber. Spring 4, returns valve arm to 0 position. Low side 0002 FIG. 1. is an explanatory diagram of the total pressure gage 7, shows speed. More pressure increases combustion carboration process where fuel tank 1, contains motor speed, less pressure decreases speed. Hence, this a high pressure gas of a hydrogen gas derivative approx. device is the power regulator. 1000 psi or greater that goes to a pressure regulator that What is claimed is:
decreases the pressure down to medium pressure of approx.
100 psi. This is a basic energy storage system of a gas that 1. A system that uses a hydrogen energy gas to run a motor when burned, will release no hydrocarbons and power. that is controlled varing the pressure entering the carborator 0003. The gas than is piped to regulator 3, that decreases mixing chamber.
the pressure down to 0 to 20 psi. This regulator also acts as 2. A gas flows through a spark arrestor and a controlled the means of controlling the speed of the motor 13, with valve Switch that permits gases to flow into a mixing throttle 4 as can be seen in FIG. 2. Gas leaves regulator on chamber.
the low side and goes through a spark arrestor and back flow 3. An explosive primer gas that helps start engine. stopper 5, in case of possible flashbacks. The hydrogen gas 4. A mixing carborator that combines explosive gases derivative combustible gas is allowed to enter the carborator with air to be injected to a compression piston motor 9, by means of which an open/close electrical switch 7, that cylinder when ignited emits power to drive a mechanical controls when the motor is turned on or off. It can be manual wheel and exhaust emission of H2O with no hydrocarbon or electrically controlled 8, that permits gas into the carbo emissions.
rator 9, where air is mixed with. A primer tank 12, injects primer fuel in to the mixing chamber with switch 11, valve
