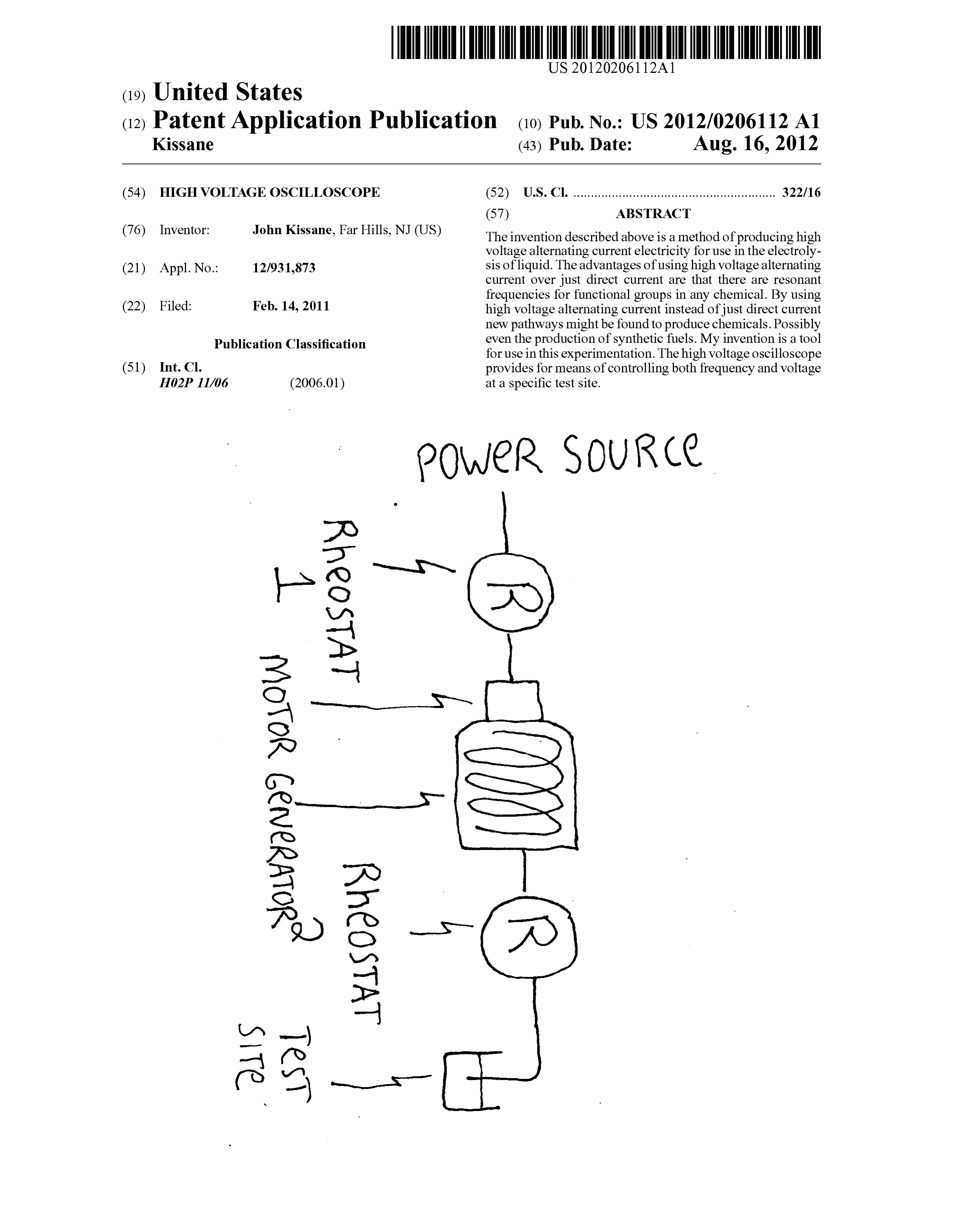

Page 1 — bibliographic record

Page 2

Drawing sheet — no readable text.

Page 3

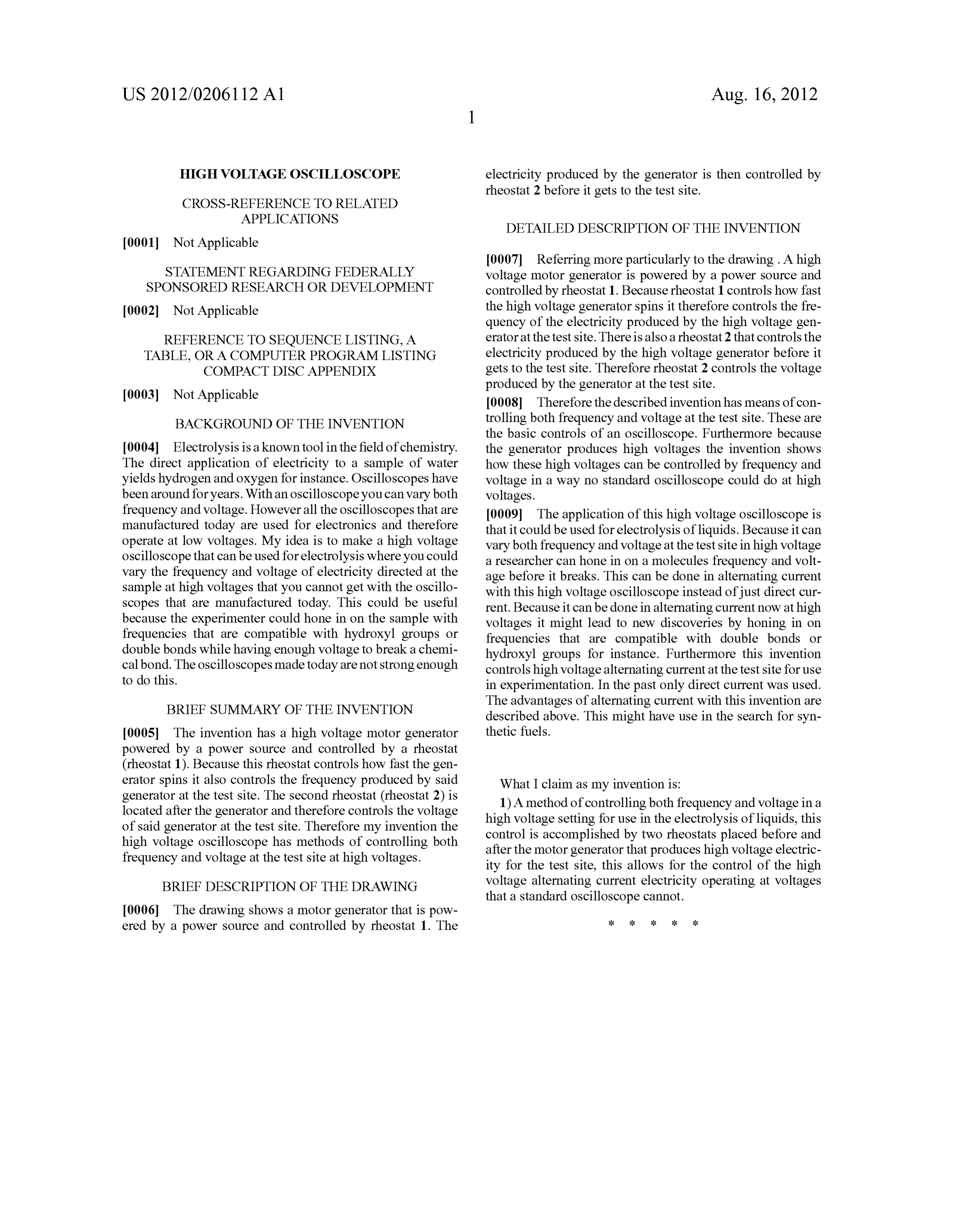

US 2012/0206112 A1 Aug. 16, 2012

HGHVOLTAGE OSCILLOSCOPE electricity produced by the generator is then controlled by rheostat 2 before it gets to the test site.

CROSS-REFERENCE TO RELATED

APPLICATIONS

DETAILED DESCRIPTION OF THE INVENTION

0001. Not Applicable 0007 Referring more particularly to the drawing. A high

STATEMENT REGARDING FEDERALLY Voltage motor generator is powered by a power source and SPONSORED RESEARCH ORDEVELOPMENT controlled by rheostat 1. Because rheostat 1 controls how fast 0002. Not Applicable the high Voltage generator spins it therefore controls the fre quency of the electricity produced by the high Voltage gen

REFERENCE TO SEQUENCE LISTING, A erator at the test site. There is also a rheostat 2 that controls the TABLE, ORACOMPUTER PROGRAM LISTING electricity produced by the high voltage generator before it COMPACT DISC APPENDIX gets to the test site. Therefore rheostat 2 controls the voltage produced by the generator at the test site.

0003) Not Applicable 0008. Therefore the described invention has means of con BACKGROUND OF THE INVENTION trolling both frequency and Voltage at the test site. These are the basic controls of an oscilloscope. Furthermore because 0004 Electrolysis is a known tool in the field of chemistry. the generator produces high Voltages the invention shows The direct application of electricity to a sample of water how these high Voltages can be controlled by frequency and yields hydrogen and oxygen for instance. Oscilloscopes have Voltage in a way no standard oscilloscope could do at high been around for years. With an oscilloscope you can vary both Voltages.

frequency and Voltage. Howeverall the oscilloscopes that are 0009. The application of this high voltage oscilloscope is manufactured today are used for electronics and therefore that it could be used for electrolysis of liquids. Because it can operate at low Voltages. My idea is to make a high Voltage vary both frequency and Voltage at the test site in high Voltage oscilloscope that can be used for electrolysis where you could a researcher can hone in on a molecules frequency and Volt vary the frequency and voltage of electricity directed at the age before it breaks. This can be done in alternating current sample at high Voltages that you cannot get with the oscillo with this high Voltage oscilloscope instead of just direct cur scopes that are manufactured today. This could be useful rent. Because it can be done in alternating current now at high because the experimenter could hone in on the sample with Voltages it might lead to new discoveries by honing in on frequencies that are compatible with hydroxyl groups or frequencies that are compatible with double bonds or double bonds while having enough Voltage to break a chemi hydroxyl groups for instance. Furthermore this invention cal bond. The oscilloscopes made today are not strong enough controls high Voltage alternating current at the test site for use to do this. in experimentation. In the past only direct current was used.

BRIEF SUMMARY OF THE INVENTION

The advantages of alternating current with this invention are described above. This might have use in the search for syn 0005. The invention has a high voltage motor generator thetic fuels.

powered by a power source and controlled by a rheostat (rheostat 1). Because this rheostat controls how fast the gen erator spins it also controls the frequency produced by said What I claim as my invention is: generator at the test site. The second rheostat (rheostat 2) is 1) A method of controlling both frequency and Voltage in a located after the generator and therefore controls the voltage high Voltage setting for use in the electrolysis of liquids, this of said generator at the test site. Therefore my invention the control is accomplished by two rheostats placed before and high Voltage oscilloscope has methods of controlling both after the motor generator that produces high Voltage electric frequency and Voltage at the test site at high Voltages. ity for the test site, this allows for the control of the high BRIEF DESCRIPTION OF THE DRAWING Voltage alternating current electricity operating at Voltages that a standard oscilloscope cannot.

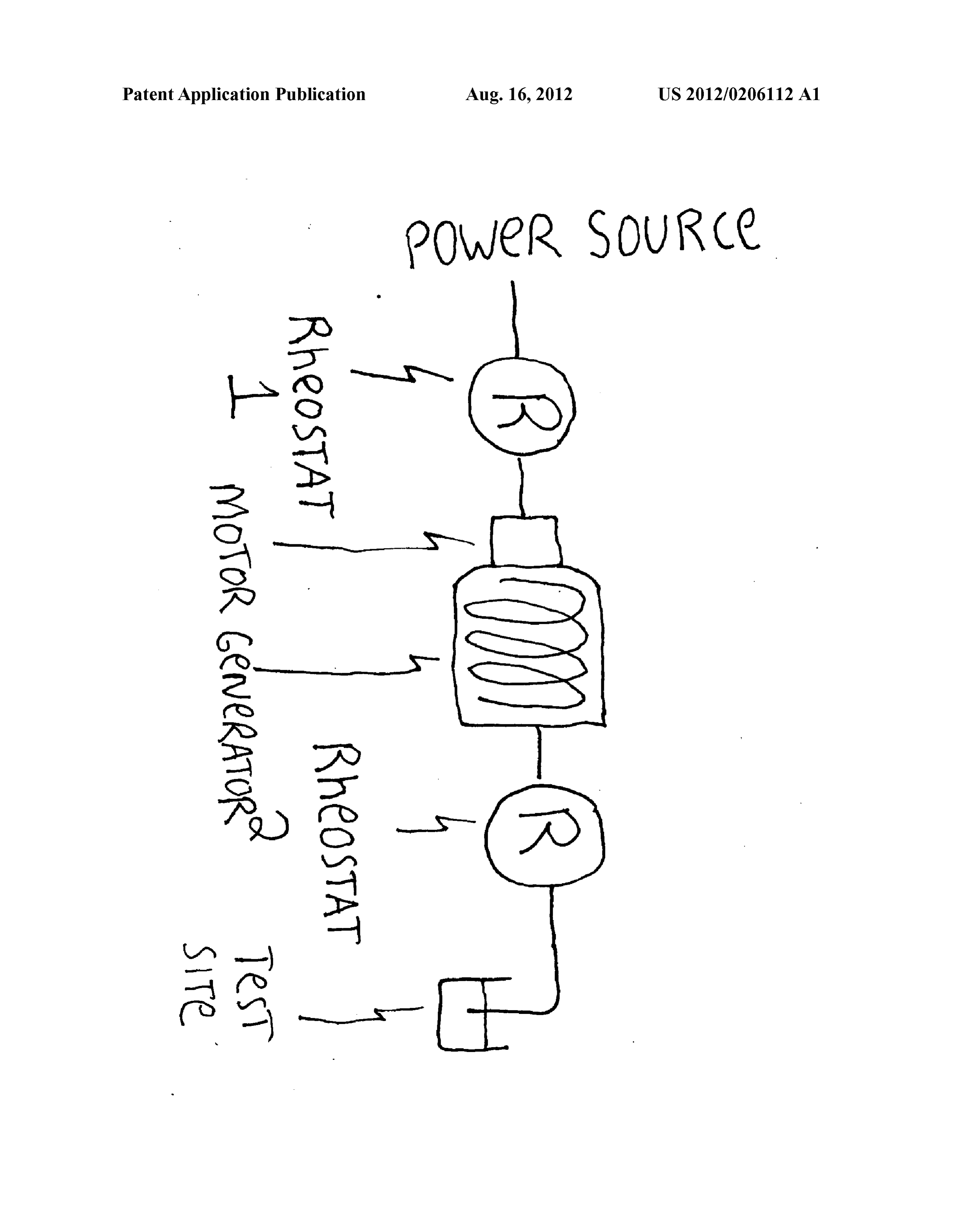

0006. The drawing shows a motor generator that is pow

ered by a power source and controlled by rheostat 1. The
