US 2008/0257719 A1 Oct. 23, 2008

APPARATUS AND METHOD FOR MAKING the drain holes and is disposed in the open space between the FLAMMABLE GAS inner tank and said outer tank. The inner tank is also full of said electrolytic fluid when said open space is full.

BACKGROUND OF THE INVENTION 0013. A spacer basket formed of a plastic material is dis posed in the open space between the inner tank and the outer 0001 1. Field of the Invention tank.

0002 This invention relates, generally, to the generation 0014. The positive side of a DC power source is in elec of gas from electrolysis. More particularly, it relates to the trical communication with a positive terminal secured to the generation of a flammable gas having unusual properties and inner tank and the negative side of the DC power source is in a heretofore unknown molecular structure.

0003 2. Description of the Prior Art electrical communication with a negative terminal secured to the outer tank. The DC power source provides a voltage of 0004. It has long been known that water can be separated about 1.5 to 2.0 volts and a current of about 0.25 amps per into hydrogen and oxygen with the use of an electrolyzer. square inch of cathode surface area. However, the cost of the process is greater than the benefits 0015. A magnet having a strength of about twenty (20) received.

Gauss units magnetizes the outer tank, and the strength of the 0005 What is needed, then, is an improved electrolysis magnetic field of the magnet is sufficient to affect the inner method and apparatus that produces a novel flammable gas tank.

from an electrolyte and water solution that provides benefits 0016. The outer tank has a gas outlet and a flammable gas without the prior art high cost of separation. is generated by electrolysis within the electrolyzer and is 0006. However, in view of the prior art considered as a collected as it exits through said gas outlet. The flammable whole at the time the present invention was made, it was not gas burns at a temperature of about two hundred seventy obvious to those of ordinary skill in the pertinent art how the degrees Fahrenheit (270° F.) when ignited. The flammable identified needs could be fulfilled. gas has a first hydrogen atom bonded with an oxygen atom

SUMMARY OF THE INVENTION

and a second hydrogen atom bonded with the first hydrogen atOm.

0007. The long-standing but heretofore unfulfilled need 0017. A purified, polarized water is made by passing the for a novel flammable gas and for an electrolyzer capable of flammable gas through distilled water. generating Such novel gas is now provided in the form of a 0018. An important object of this invention is to provide a new, useful, and nonobvious invention. method and apparatus for making the novel gas. 0008 Because molecules such as hydrogen and oxygen 0019. These and other important objects, advantages, and have magnetic qualities, they exist normally in a diatomic features of the invention will become clear as this description state O and H2. They also have electronegative values that proceeds.

affect the strength of the bond. In the case of a water molecule 0020. The invention accordingly comprises the features of (H2O), this invention discloses that introducing a current construction, combination of elements, and arrangement of through an electrolyte solution, preferably a potassium parts that will be exemplified in the description set forth hydroxide Solution, in the presence of a magnetic field recon hereinafter and the scope of the invention will be indicated in the claims.

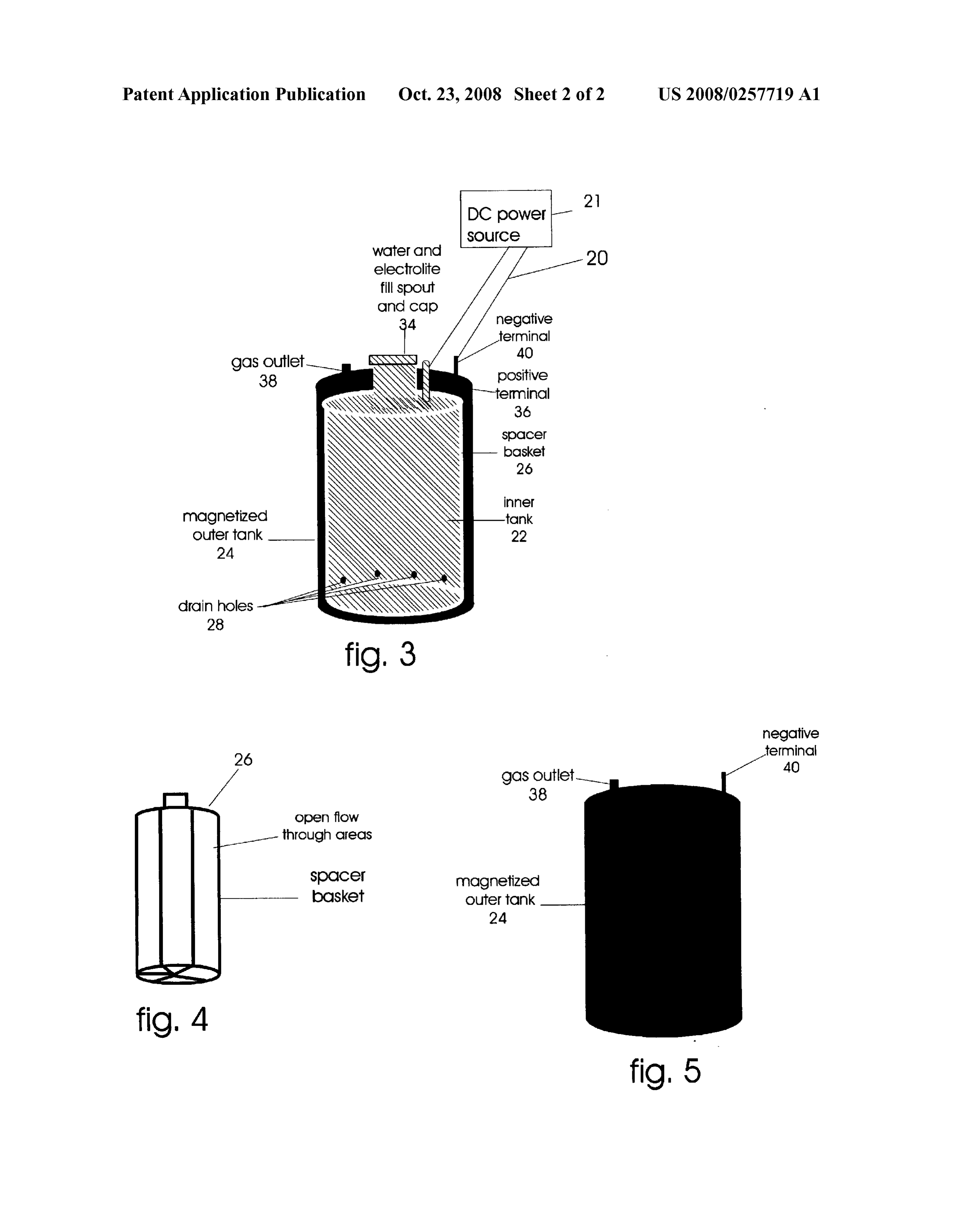

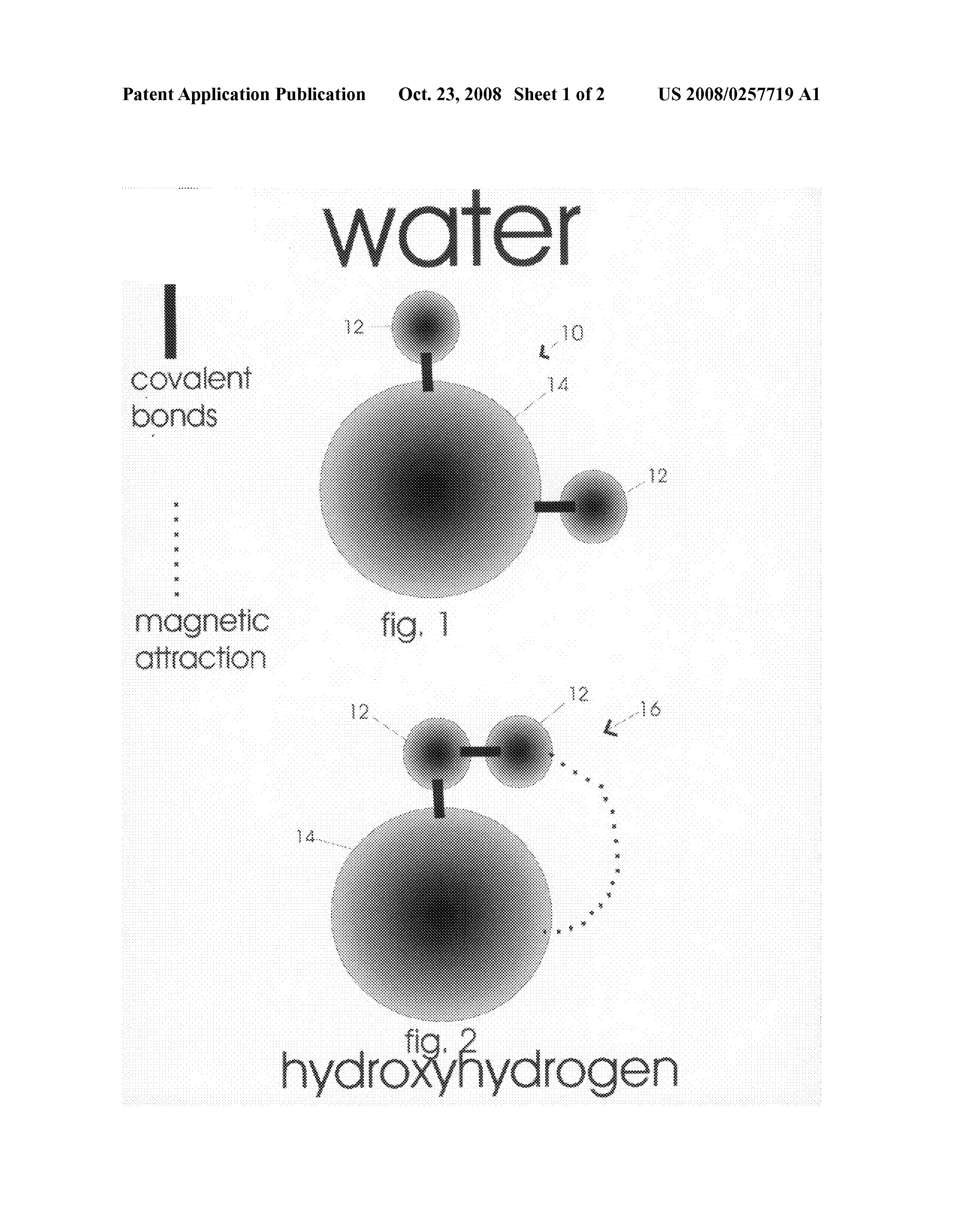

figures the molecule into a heretofore unknown gas referred to hereinafter as hydroxyhydrogen or hydrogas. This hereto BRIEF DESCRIPTION OF THE DRAWINGS fore unknown gas is a diatomic hydrogen molecule that is single bonded to atomic oxygen. 0021 For a fuller understanding of the nature and objects 0009. This is accomplished by spacing an anode and a of the invention, reference should be made to the following cathode about a quarter of an inch apart and introducing a DC detailed description, taken in connection with the accompa voltage of approximately 1.5 to 2.0 volts with current equal to nying drawings, in which:

approximately one-quarter of an amp (0.25 amp) per square 0022 FIG. 1 is a prior art diagram of a water molecule: inch of cathode surface area. This weakens the electronega 0023 FIG. 2 is a diagram of the novel molecule: tive strength of the oxygenatom and allows a hydrogenatom 0024 FIG. 3 is a diagram of the novel electrolyzer; to dislodge and magnetically bond to the other hydrogenatom 0025 FIG. 4 is a is a diagram of the novel spacer basket; that is strengthened by the magnetic field. and 0010. The resulting product is a flammable non-toxic gas 0026 FIG. 5 is a diagram of the magnetized outer tank of that implodes when lit, and is an oxidizer that liberates atomic the novel electrolyzer.

hydrogen when it bonds with another molecule.

0011 More particularly, the novel electrolyzer includes a DETAILED DESCRIPTION OF THE PREFERRED first electrode in the form of an inner tank having a first EMBODIMENT diameter formed of a material capable of being magnetized and a second electrode in the form of an outer tank having a 0027. The novel electrolyzer is surrounded by a magnetic second diameter formed of a material capable of being mag field that may be generated by an electromagnet or a perma netized. The second diameter is greater than the first diameter nent magnet. Carefully controlled Voltage and amperage and the inner tank is nested within the outer tank. reconfigures a water molecule into a magnecule, referred to 0012. A cylindrical open space is created between the hereinafter as hydroxyhydrogen.

inner and outer tanks by the difference in tank diameters. 0028 More particularly, a current is passed through a con Drain holes are formed in the sidewalls of the inner tank, near ductive water solution. The current weakens the bonding the bottom end thereof, so that when the inner tank is filled strength of the water and thus allows the magnetic force water and an electrolyte such as potassium hydroxide to form provided by the magnetic field to reconfigure the water mol an electrolytic fluid, the electrolytic liquid fluid flows through ecule into a highly polar magnacule containing atomic oxy

Page 5

US 2008/0257719 A1 Oct. 23, 2008

gen bonded to a diatomic molecule of hydrogen. The result 0037. The electrolyzer that causes this reconfiguration of a ing product is a flammable gas. When lit by an ignition source, water molecule is depicted in FIGS. 3-5. Electrolyzer 20 the hydroxyhydrogen gas implodes and produces a very low includes inner tank 22 that serves as an electrode and mag temperature flame of approximately two hundred seventy netized outer tank 24 that serves as an electrode. Spacer degrees Fahrenheit (270°F). basket 26 is positioned between said inner and outer tanks. 0029. The total heat energy is approximately equal to the The distance between the inner and outer tanks controls the power required to create the gas. Voltage and the Volume of gas output is determined by the 0030. Due to its low temperature, the gas has limited util amperage.

ity as a stand alone fuel. However, when the flame is applied 0038 Multiple drain holes, collectively denoted 28, are to a Substrate such as iron, the flame temperature increases formed in the cylindrical sidewalls 30 of inner tank 24, near almost immediately to the melting temperature of iron. The imperforate bottom wall 32 thereof. Drain holes 28 allow same phenomena holds true for metals other than iron and electrolyte in inner tank 22 to flow into the open space Substances other than metals; the flame temperature rises between the inner and outer tanks. quickly to the melting temperature of the metal or other 0039 Inner tank 22 includes water and electrolyte fill Substance. spout 34 which is insulated from but sealed to outer tank 24 by 0031. The electronegative value of iron is lower than the spacer basket 26.

electronegative value of hydrogen. This causes the highly 0040 Positive terminal 36 is in electrical communication energized hydroxyl molecule to attach itself to the iron and with the positive side of a DC power source 21. Positive release hydrogen. The released hydrogen bonds with atmo terminal 36 is attached to inner tank 22 and insulated from spheric oxygen and thereby creates large amounts of heat. outer tank 24.

This quality makes the gas highly useful in the metal-cutting 0041 Gas outlet 38 is attached to outer tank 24. The open industry and reduces the amount of hydrocarbons used and end thereof may be attached to a filter, dryer, or storage tank, thus reduces the amount of byproducts of hydrocarbons that depending upon the application.

are released into the atmosphere. 0042 Negative terminal 40 is attached to outer tank 24 and 0032. Although the novel gas is not a fuel, when added to the negative side of said DC power source. the air intake of a combustion engine, the novel gas dramati 0043 Spacer basket 26 is made of a plastic or other mate cally reduces harmful exhaust emissions and increases fuel rial Suitable as an electrical insulator and Sufficiently resistant efficiency. This reduces oil consumption. It is a safe, non to withstand strong electrolytic Solutions such as potassium toxic oxidizer that bonds easily with water. hydroxide. It has open flow through areas as depicted in FIG. 0033 Referring now to FIG. 1, it will there be seen that a 4.

water molecule is denoted 10 as a whole. As is well-known, it 0044 Inner tank 22 and outer tank 24 are made of material includes two (2) hydrogen atoms, collectively denoted 12. capable of being magnetized.

and one (1) oxygen atom, denoted 14. 0045. Outer tank 24 is magnetized by a permanent magnet 0034. A hydroxyhydrogen magnecule 16 is disclosed in or an electromagnet with Sufficient Gauss units to affect inner FIG. 2. It also includes two (2) hydrogenatoms 12 and one (1) tank 22. In a commercial embodiment, the strength of the oxygen atom 14. However, a first hydrogen atom has been magnetic field is about twenty (20) Gauss units. released from its bond with oxygen atom 14 and has bonded 0046. The properties of the novel polarized gas are not with a second hydrogen atom as depicted. limited to increase in flame temperature property mentioned 0035 Conventional science maintains that hydrogen can above. Bubbling the novel polarized flammable gas through have but one (1) bond, as depicted in FIG.1. It follows that the distilled water results in bonding with many organic and hydrogenatom 12 in FIG. 2 that seems to have two (2) bonds inorganic Substances and rendering them harmless. Even dis (one with oxygen atom 14 and one with another hydrogen tilled water, filtered water, and reverse osmosis water still atom) cannot exist in nature. However, the properties and contain free radicals and traces of bacteria. Lab tests have behavior of the novel gas may be explained if the structure shown that the water produced by bubbling the novel polar depicted in FIG. 2 is correct. ized gas through it is more conductive, non-toxic, and bacte 0036 Ionic and covalent bonding could better be ria free. Controlled studies on plants have shown that it makes described as electrostatic and magnetic bonding, respec them healthier and faster-growing. Wounds heal faster on tively. The Lewis dot theory of bonding which is taught in all mammals cleaned daily with the novel water. People who universities is flawed in many ways. Lewis himself recog have imbibed the water anecdotally recount the stopping of nized that nitrogen, which can have a Valence of 3, 4, or 5, was migraine headaches, clearer vision, improved concentration, an exception to the rule. Diatomic molecules such as hydro and other improvements such as dissolving vitamins, miner gen are also exceptions. Based on the Lewis dot theory, als and nutrients faster.

hydrogen can have only one bond. This contradicts Gauss’s 0047. Without regard to what is eaten or what kind of Law which states that there are no monopoles in magnetism, medicine, Vitamins, or Supplements are taken, if the body i.e., there are only dipoles. Water is proof that Gauss is correct does not metabolize it, it doesn't provide any benefits. since it is well known that liquid waterforms hydrogen bonds Metabolism is the sum of all chemical changes that take place with other water molecules in order to remain in a liquid in the body. These changes are responsible for maintaining solution. Individual HO molecules from evaporation or tran health and providing energy, but energy is also required to spiration are a gas. Based on the atomic weight of the mol bring about these changes. Since water is the liquid the body ecule, water is a gas. By applying a small amount of energy in uses to dissolve and transport foods, vitamins, nutrients, and an electrolyzer, we can separate the water molecules into a medicines, it is essential to energize this vital fluid in order for gaseous form and with the presence of a magnetic field re the body to function properly and to heal itself. establish the diatomic hydrogen bond. The magnetic strength 0048. When water evaporates from the earth, it rises should be approximately twenty (20) Gauss units. through a powerful magnetic field that induces a charge.

Page 6

US 2008/0257719 A1 Oct. 23, 2008

Lightning is the discharge of this stored energy. As rain drops said inner tank having drain holes formed therein so that an fall back to earth, a small amount of energy is also induced electrolytic liquid fluid is disposed in said open space which cleans the air, neutralizes pollution, and has enough between said inner tank and said outer tank when said energy left over to make lawns greener, healthier, and grow inner tank is filled with said electrolytic fluid; three (3) times faster than they would grow with ordinary a spacerbasket formed of a plastic material disposed in said water. Even the slightest polarization of water, as evidenced open space between said inner tank and said outer tank; by rain, is extremely beneficial in nature. In order to control a DC power source:

the degree of polarization, the polarized gas is made from a positive terminal secured to said inner tank, said positive water as disclosed above and then bubbled through a quantity terminal in electrical communication with a positive side of distilled water as aforesaid. of said DC power source:

0049. The novel gas produced by the novel electrolyzer a negative terminal secured to said outer tank, said negative thus enables the production of a novel water having numerous terminal in electrical communication with a negative therapeutic effects. The novel gas has many other applica side of said DC power source; and a magnet for magnetizing said outer tank, said magnet tions as well. Such as the enabling of more efficient combus having a field sufficient to affect said inner tank. tion of fuels, and so on, all of which are inherent and thus 2. The electrolyzer of claim 1, further comprising: within the scope of this invention. said DC power source providing a voltage of about 1.5 to 0050. It will thus be seen that the objects set forth above, 2.0 volts and a current of about 0.25 amps per square and those made apparent from the foregoing description, are inch of cathode Surface area. efficiently attained. Since certain changes may be made in the 3. The electrolyzer of claim 1, further comprising: above construction without departing from the scope of the said magnetic field having a strength of about twenty Gauss invention, it is intended that all matters contained in the units.

foregoing description or shown in the accompanying draw 4. The electrolyzer of claim 1, further comprising: ings shall be interpreted as illustrative and not in a limiting said electrolytic fluid being potassium hydroxide. SSC. 5. The electrolyzer of claim 1, further comprising: 0051. It is also to be understood that the following claims said outer tank having a gas outlet; are intended to coverall of the generic and specific features of a flammable gas being generated by electrolysis within the invention herein described, and all statements of the scope said electrolyzer and said flammable gas flowing of the invention that, as a matter of language, might be said to through said gas outlet;

fall therebetween. said flammable gas burning at a temperature of about two 0.052 Now that the invention has been described, hundred seventy degrees Fahrenheit (270° F.) when What is claimed is:

ignited;

1. An electrolyzer, comprising: said flammable gas, when burning in contact with a Sub stance, having a flame temperature Substantially equal to a first electrode in the form of an inner tank having a first a melting temperature of said Substance. diameter formed of a material capable of being magne 6. The electrolyzer of claim 5, further comprising: tized; said flammable gas having a first hydrogen atom bonded a second electrode in the form of an outer tank having a with an oxygen atom and a second hydrogen atom second diameter formed of a material capable of being bonded with said first hydrogen atom. magnetized: 7. The electrolyzer of claim 6, further comprising: said second diameter being greater than said first diameter; a purified, polarized water made by passing said flammable said inner tank being nested within said outer tank; gas through distilled water.

a cylindrical open space created between said inner and

outer tanks by said difference in diameters;
