Hi Everyone!
I am in need of money to fund other projects so I am offering my VIC and VIC driver circuit for sale.

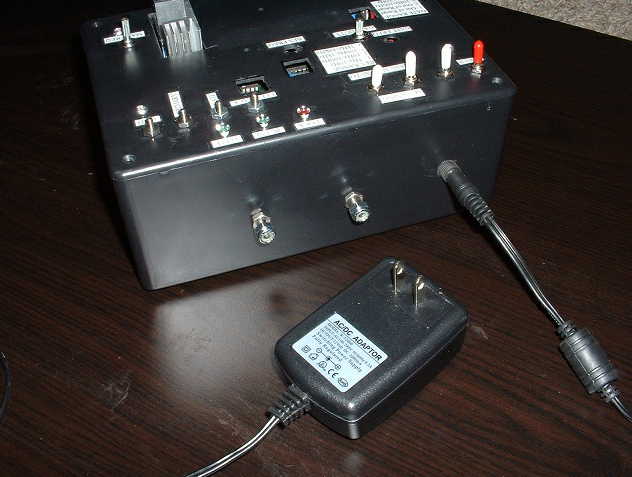

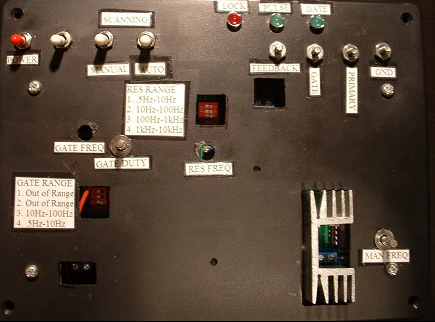

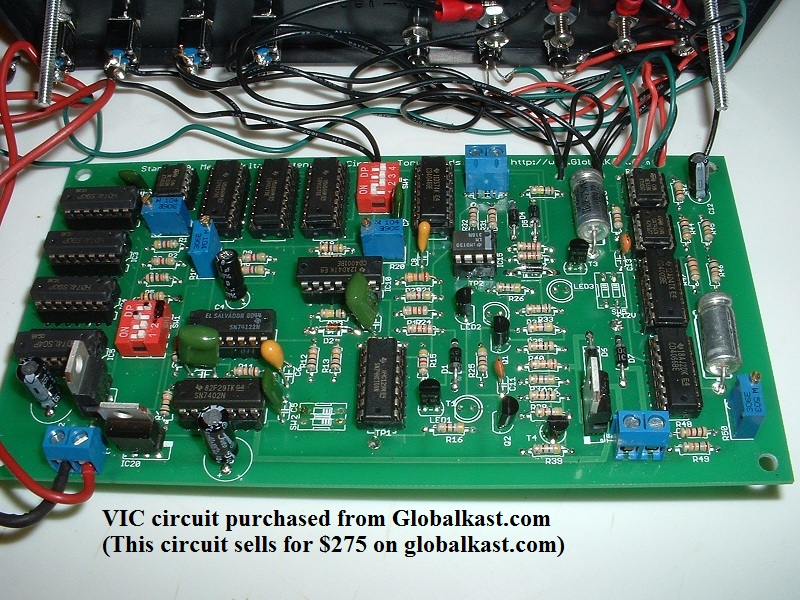

The driver circuit was purchased from Tony Woodside's site globalkast.com, it goes for $275 on his site. Both the VIC and driver circuit are mounted in a project box which includes a 12VDC power supply. All it takes to start testing (once you get a ferrite core and a cell) is to plug it in and turn it on.
The project box could look better if you know how to make project box labels. I'm sure the circuit will work with the right VIC and core material. I just don't have the time to play with this anymore as I have too many other projects.

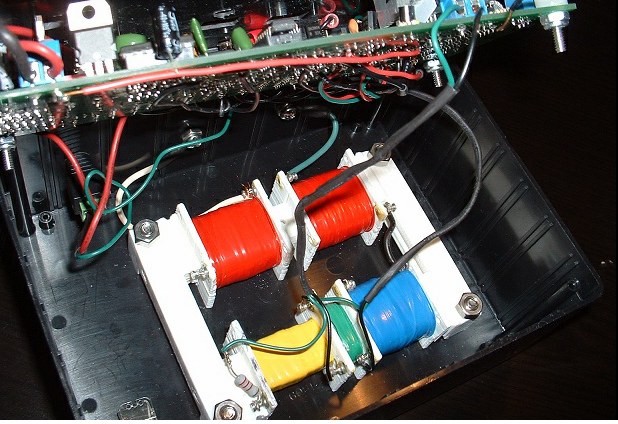

I spent over 10 hours winding the VIC as close to Meyer's specs as I could get. The Specs of the VIC (with no core/in air) are:
Primary=34.2mH, 12.5 Ohms
Feedback=28.7mH, 13.2 Ohms
Secondary=1.038H, 77.4 Ohms
L1 =.823H, 77.9 Ohms
L2= .820H, 76.5 Ohms
(All coils wound with 30AWG heavy gauge magnet wire).

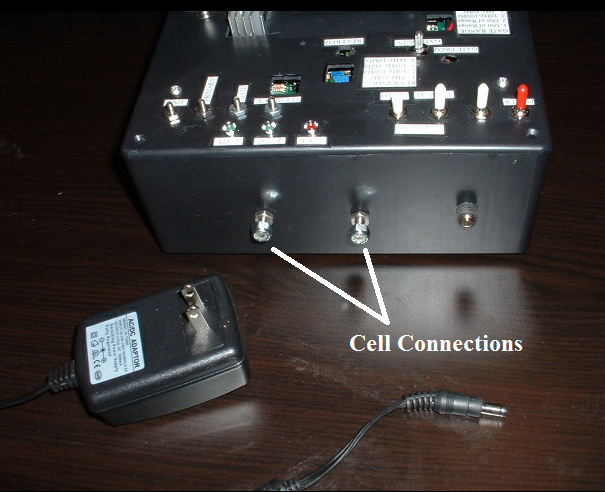

Again, if you buy this all you will need is a ferrite core for the VIC and a test cell to begin testing.

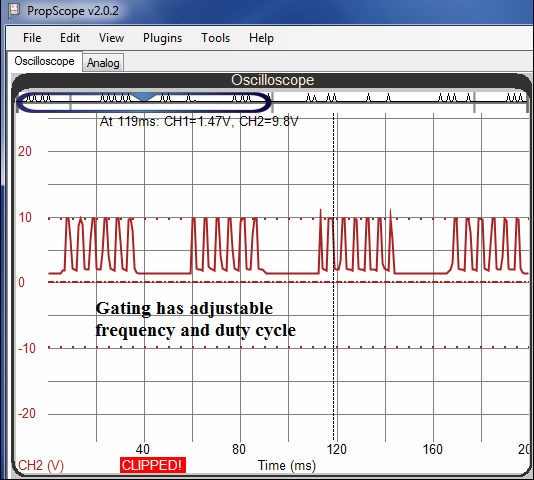

Here is one video of the circuit:
[youtube]http://www.youtube.com/watch?v=blPGfSUeoSI&feature=plcp[/youtube]
I am offering it for sale for $ 250.00 with shipping included to the lower 48 states. I accept payment through Paypal.
If interested please send me a private message.
