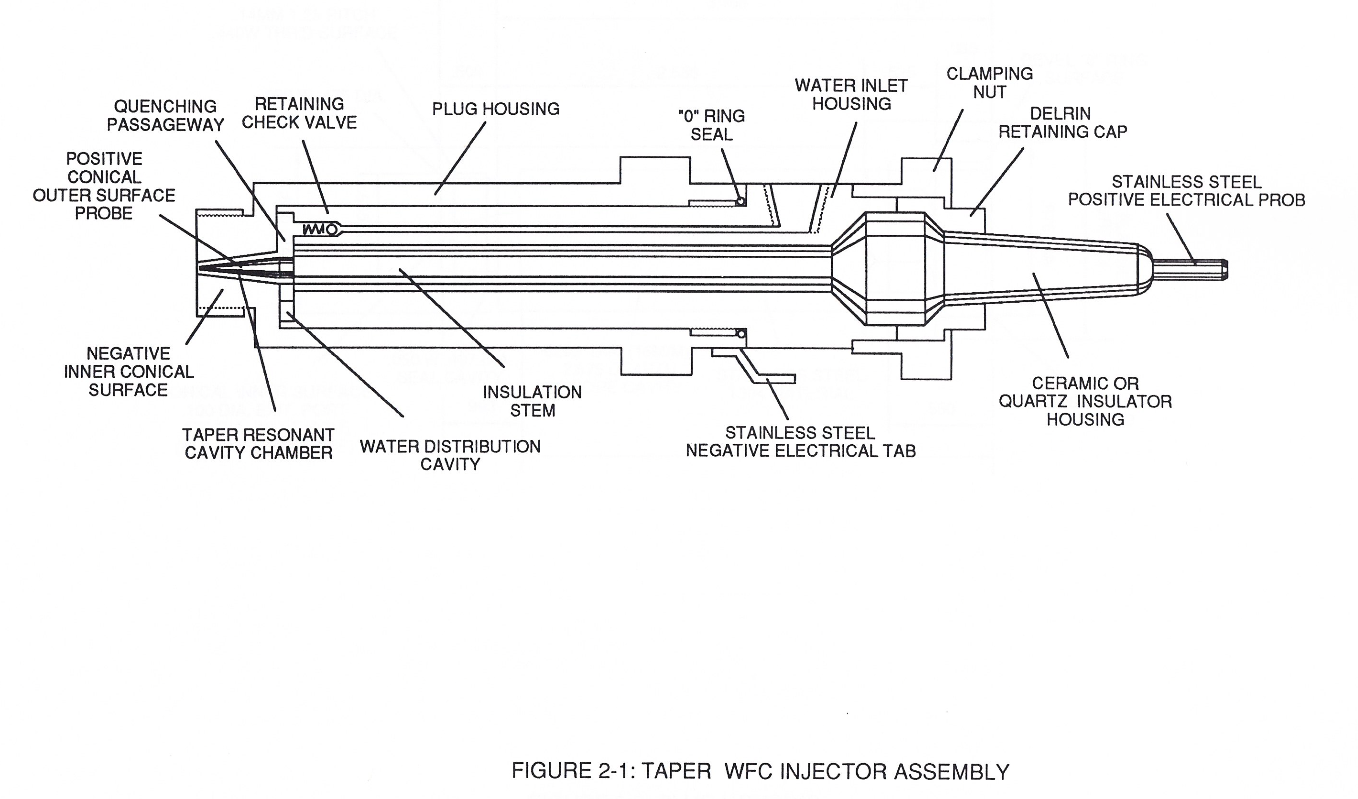

2-1 Taper WFC Injector Assembly

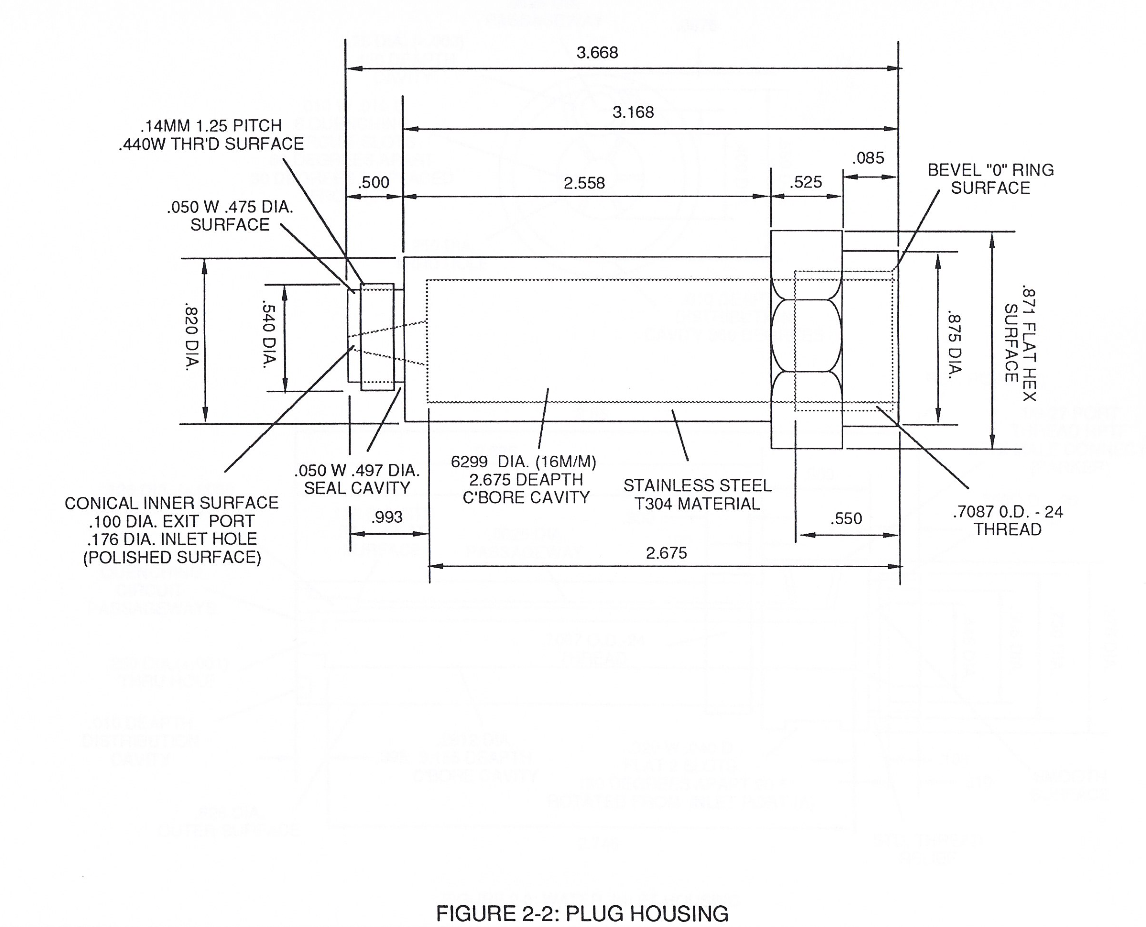

2-2 Plug Housing

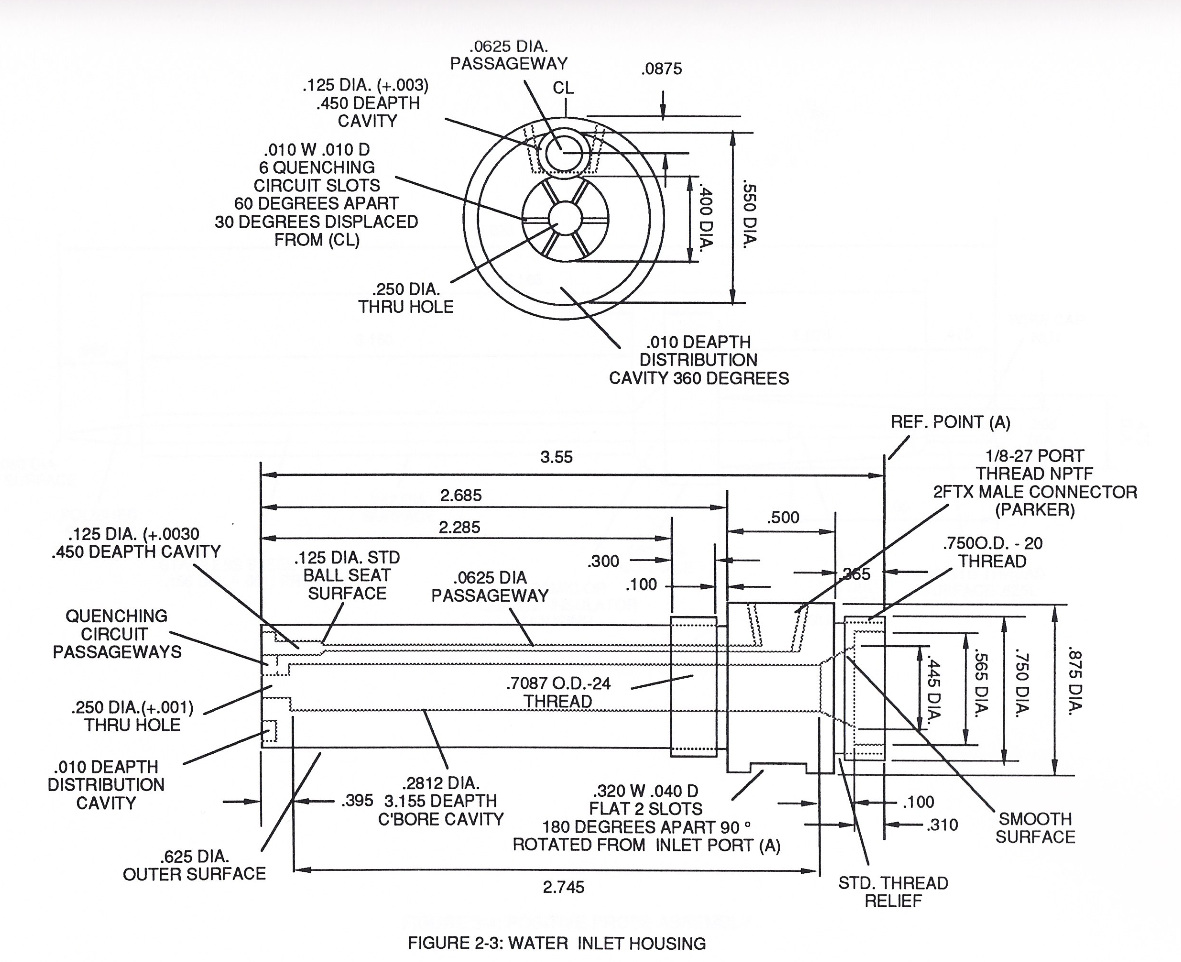

2-3 Water Inlet Housing

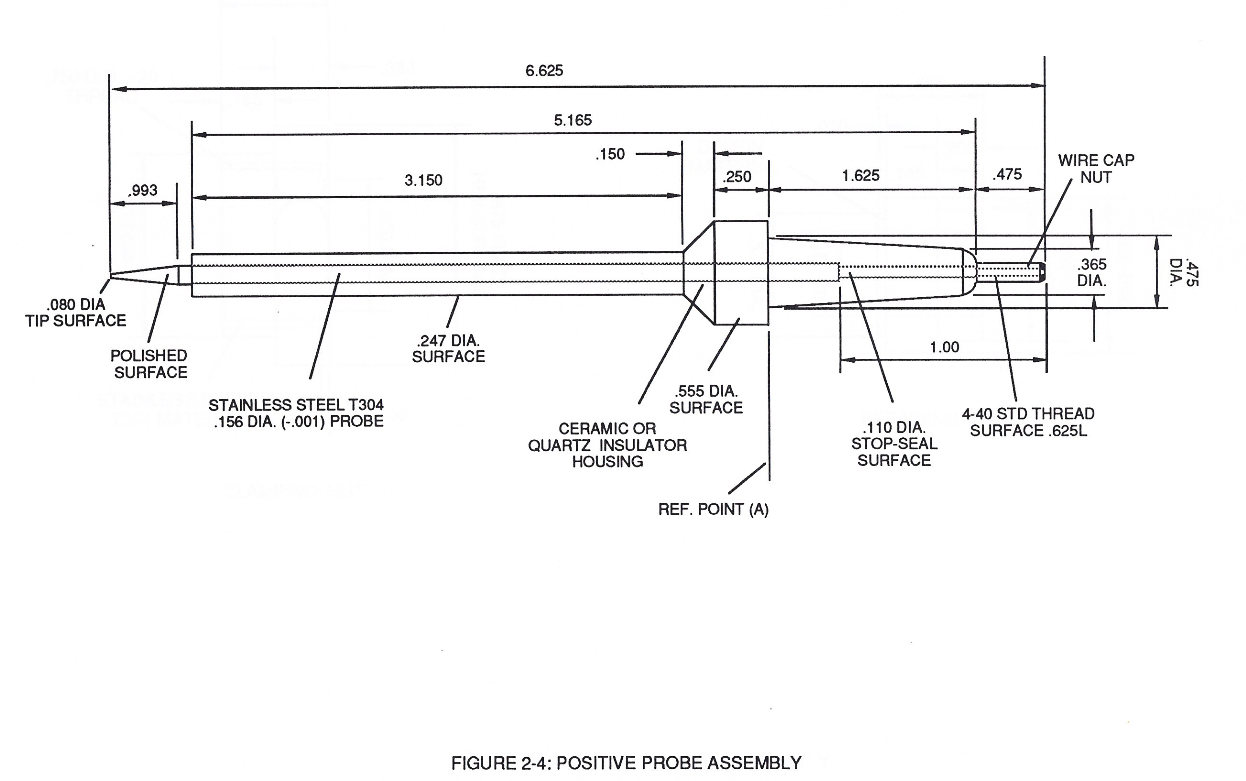

2-4 Positive Probe Assembly

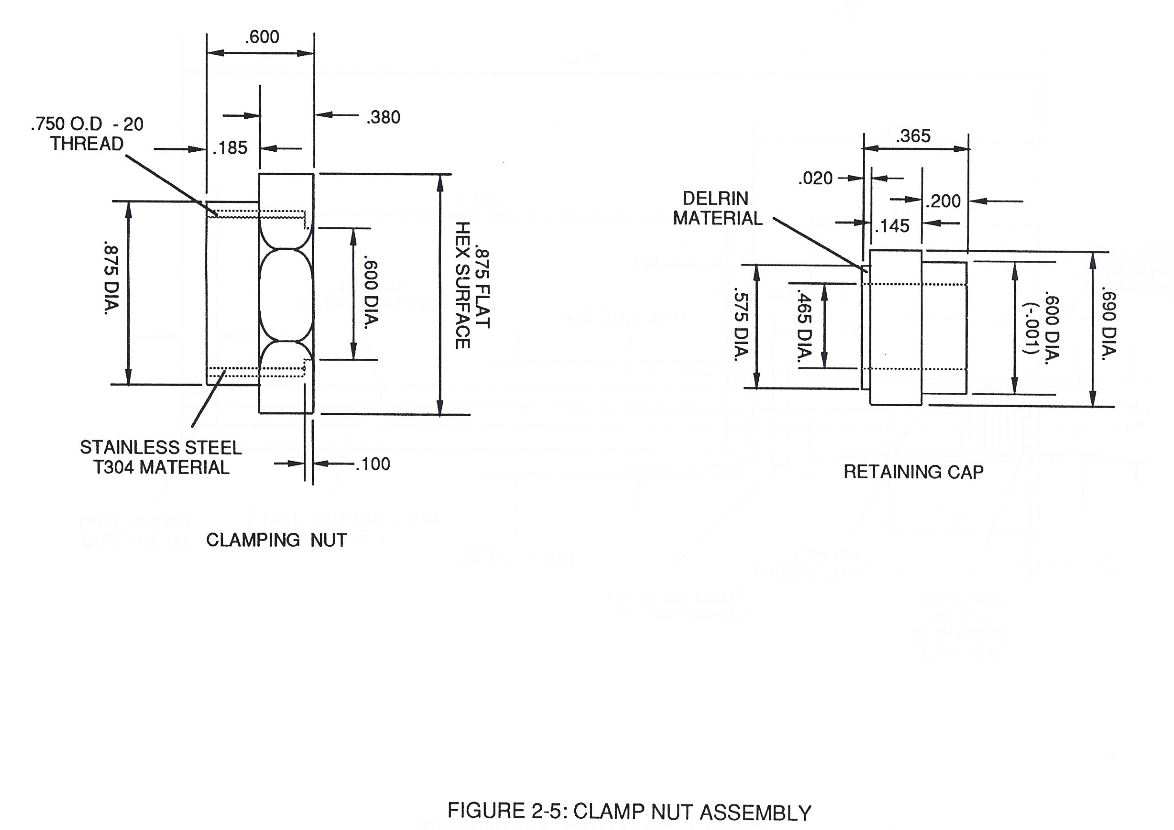

2-5 Clamp Nut Assembly

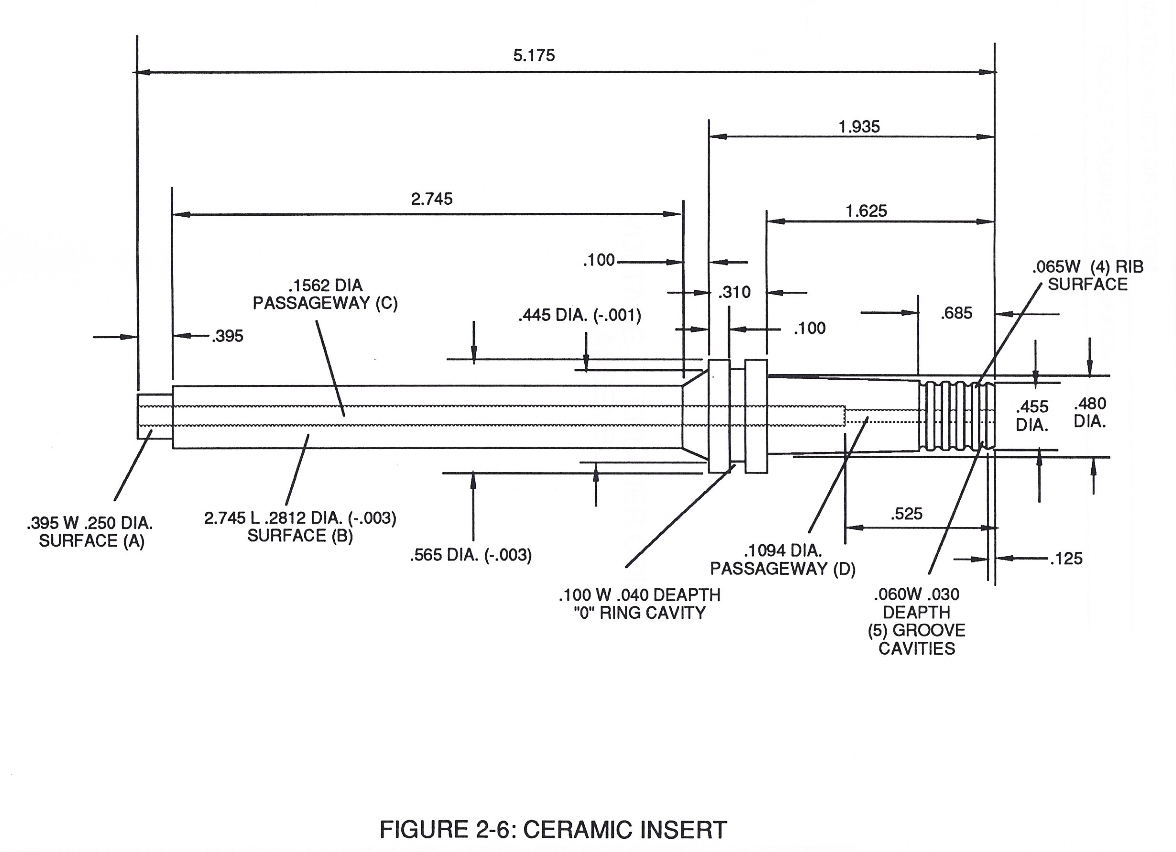

2-6 Ceramic Insert
