Apparatus for supplying high-concentration hydrogen gas for living organism

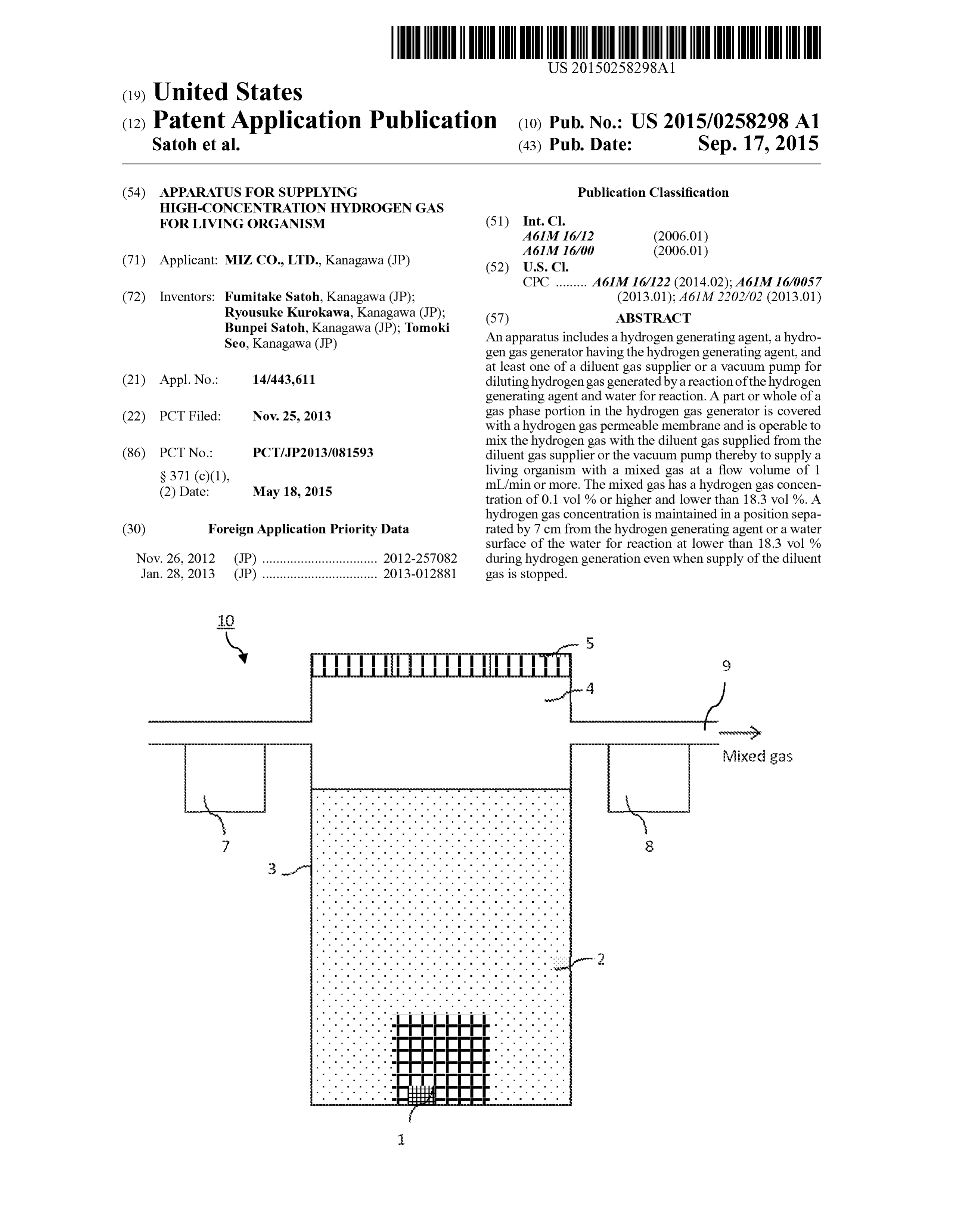

Page 1 — bibliographic record

Page 2

Drawing sheet — no readable text.

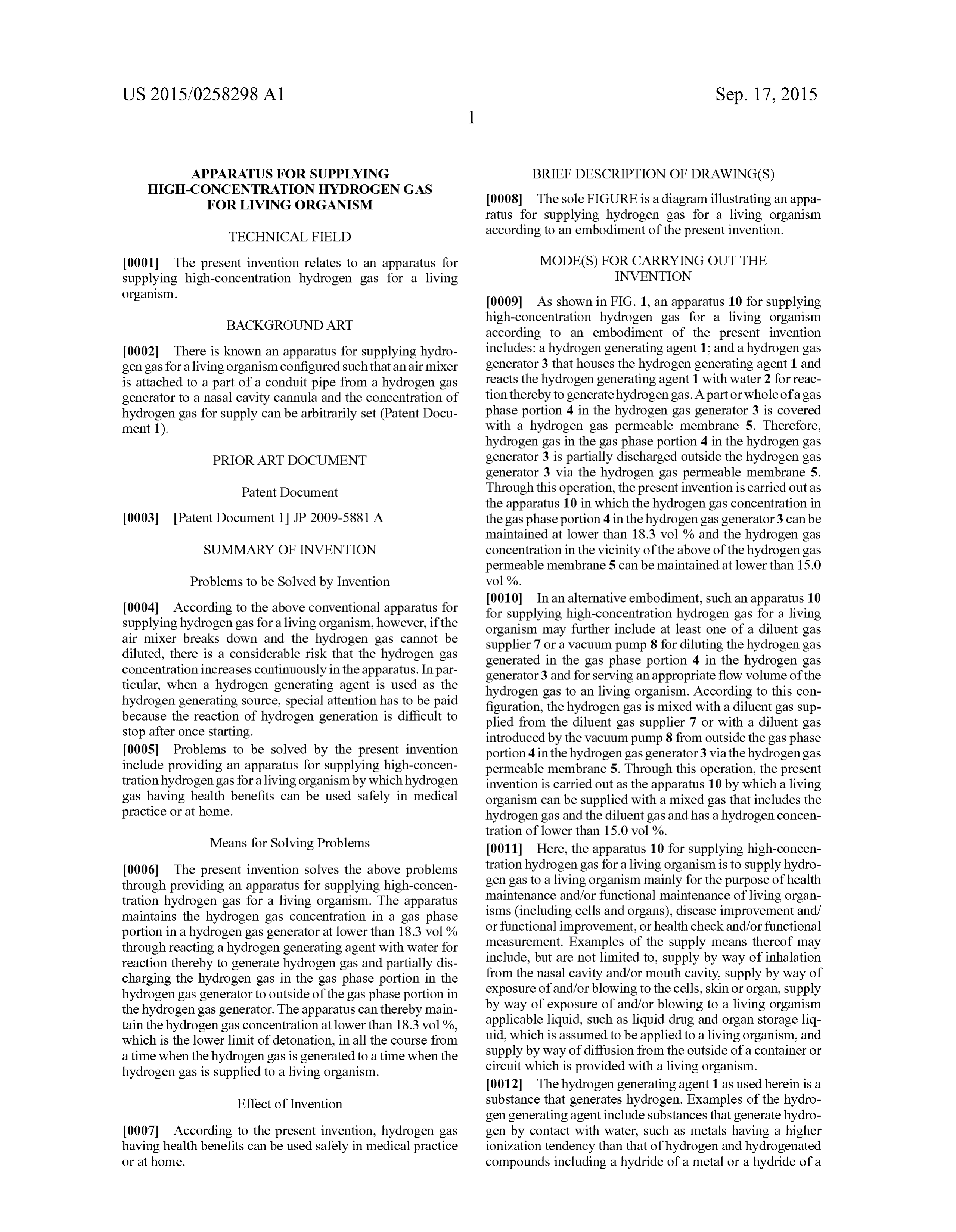

Page 3

US 2015/0258298 A1 Sep. 17, 2015

APPARATUS FOR SUPPLYING BRIEF DESCRIPTION OF DRAWING(S)

HIGH-CONCENTRATION HYDROGEN GAS

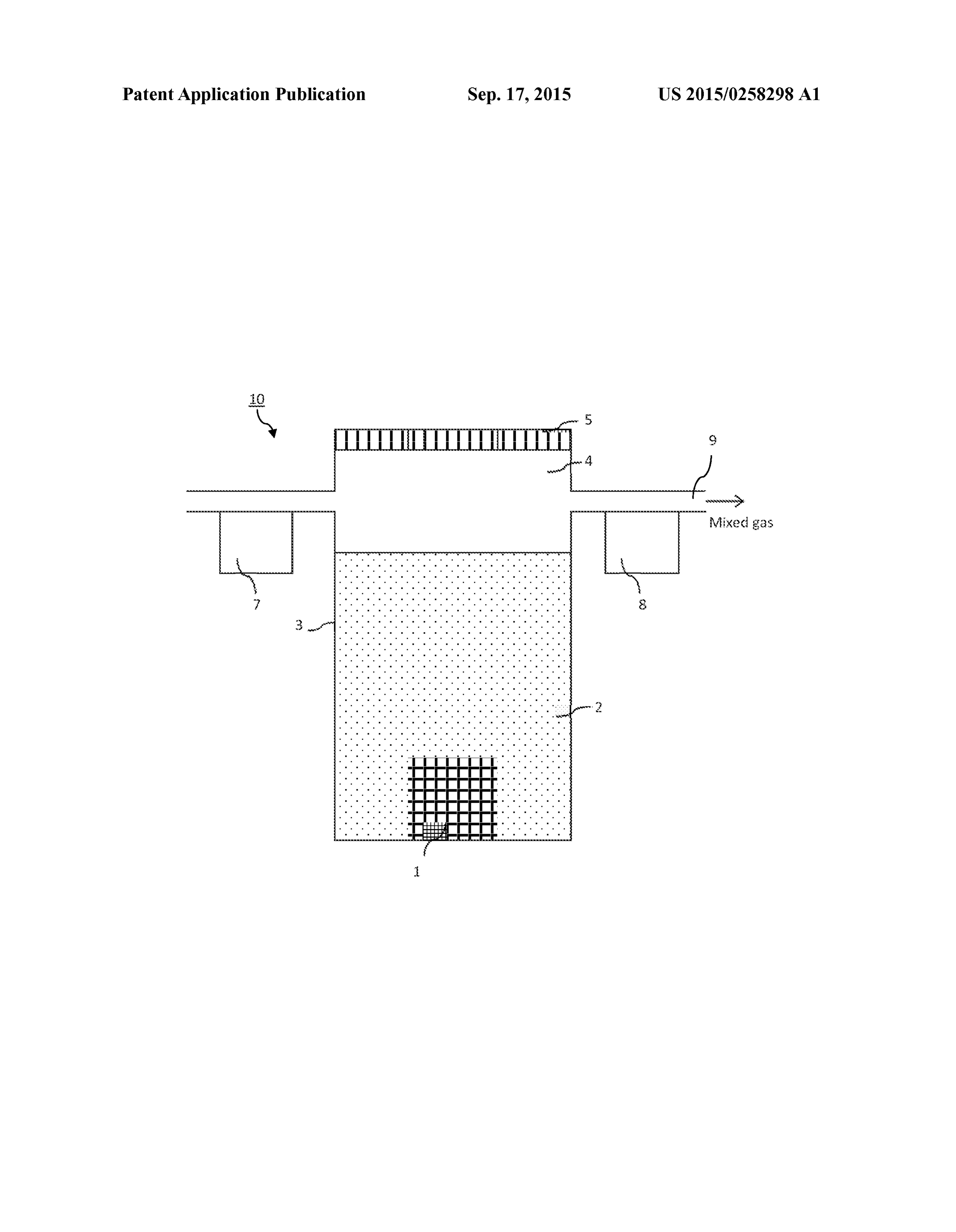

FOR LIVING ORGANISM 0008. The sole FIGURE is a diagram illustrating an appa ratus for Supplying hydrogen gas for a living organism

TECHNICAL FIELD according to an embodiment of the present invention. 0001. The present invention relates to an apparatus for MODE(S) FORCARRYING OUT THE Supplying high-concentration hydrogen gas for a living INVENTION organism.

0009. As shown in FIG. 1, an apparatus 10 for supplying

BACKGROUND ART

high-concentration hydrogen gas for a living organism according to an embodiment of the present invention 0002 There is known an apparatus for supplying hydro includes: a hydrogen generating agent 1; and a hydrogen gas gen gas for a living organism configured such that an air mixer generator 3 that houses the hydrogen generating agent 1 and is attached to a part of a conduit pipe from a hydrogen gas reacts the hydrogen generating agent 1 with water 2 for reac generator to a nasal cavity cannula and the concentration of tion thereby to generate hydrogen gas. Apart or whole ofagas hydrogen gas for Supply can be arbitrarily set (Patent Docu phase portion 4 in the hydrogen gas generator 3 is covered ment 1). with a hydrogen gas permeable membrane 5. Therefore, hydrogen gas in the gas phase portion 4 in the hydrogen gas

PRIOR ART DOCUMENT generator 3 is partially discharged outside the hydrogen gas generator 3 via the hydrogen gas permeable membrane 5.

Patent Document Through this operation, the present invention is carried out as the apparatus 10 in which the hydrogen gas concentration in 0003 Patent Document 1.JP 2009-5881 A the gas phase portion 4 in the hydrogen gas generator 3 can be maintained at lower than 18.3 vol% and the hydrogen gas

SUMMARY OF INVENTION concentration in the vicinity of the above of the hydrogen gas permeable membrane 5 can be maintained at lower than 15.0

Problems to be Solved by Invention vol%.

0004. According to the above conventional apparatus for 0010. In an alternative embodiment, such an apparatus 10 for Supplying high-concentration hydrogen gas for a living

Supplying hydrogen gas for a living organism, however, if the organism may further include at least one of a diluent gas air mixer breaks down and the hydrogen gas cannot be Supplier 7 or a vacuum pump 8 for diluting the hydrogen gas diluted, there is a considerable risk that the hydrogen gas generated in the gas phase portion 4 in the hydrogen gas concentration increases continuously in the apparatus. In par generator 3 and for serving an appropriate flow Volume of the ticular, when a hydrogen generating agent is used as the hydrogen gas to an living organism. According to this con hydrogen generating Source, special attention has to be paid figuration, the hydrogen gas is mixed with a diluent gas Sup because the reaction of hydrogen generation is difficult to plied from the diluent gas supplier 7 or with a diluent gas stop after once starting. introduced by the vacuum pump 8 from outside the gas phase 0005 Problems to be solved by the present invention portion 4 in the hydrogen gas generator 3 via the hydrogen gas include providing an apparatus for Supplying high-concen permeable membrane 5. Through this operation, the present tration hydrogen gas for a living organism by which hydrogen invention is carried out as the apparatus 10 by which a living gas having health benefits can be used safely in medical organism can be Supplied with a mixed gas that includes the practice or at home. hydrogen gas and the diluent gas and has a hydrogen concen tration of lower than 15.0 vol%.

Means for Solving Problems 0011. Here, the apparatus 10 for supplying high-concen 0006. The present invention solves the above problems tration hydrogen gas for a living organism is to Supply hydro through providing an apparatus for Supplying high-concen gen gas to a living organism mainly for the purpose of health tration hydrogen gas for a living organism. The apparatus maintenance and/or functional maintenance of living organ maintains the hydrogen gas concentration in a gas phase isms (including cells and organs), disease improvement and/ portion in a hydrogen gas generator at lower than 18.3 vol% or functional improvement, or health check and/or functional through reacting a hydrogen generating agent with water for measurement. Examples of the Supply means thereof may reaction thereby to generate hydrogen gas and partially dis include, but are not limited to, Supply by way of inhalation charging the hydrogen gas in the gas phase portion in the from the nasal cavity and/or mouth cavity, Supply by way of hydrogen gas generator to outside of the gas phase portion in exposure of and/or blowing to the cells, skin or organ, Supply the hydrogen gas generator. The apparatus can thereby main by way of exposure of and/or blowing to a living organism tain the hydrogen gas concentration at lower than 18.3 vol%. applicable liquid, such as liquid drug and organ storage liq which is the lower limit of detonation, in all the course from uid, which is assumed to be applied to a living organism, and a time when the hydrogen gas is generated to a time when the supply by way of diffusion from the outside of a container or hydrogen gas is Supplied to a living organism. circuit which is provided with a living organism. 0012. The hydrogen generating agent 1 as used herein is a

Effect of Invention Substance that generates hydrogen. Examples of the hydro gen generating agent include Substances that generate hydro 0007 According to the present invention, hydrogen gas gen by contact with water, such as metals having a higher having health benefits can be used safely in medical practice ionization tendency than that of hydrogen and hydrogenated or at home. compounds including a hydride of a metal or a hydride of a

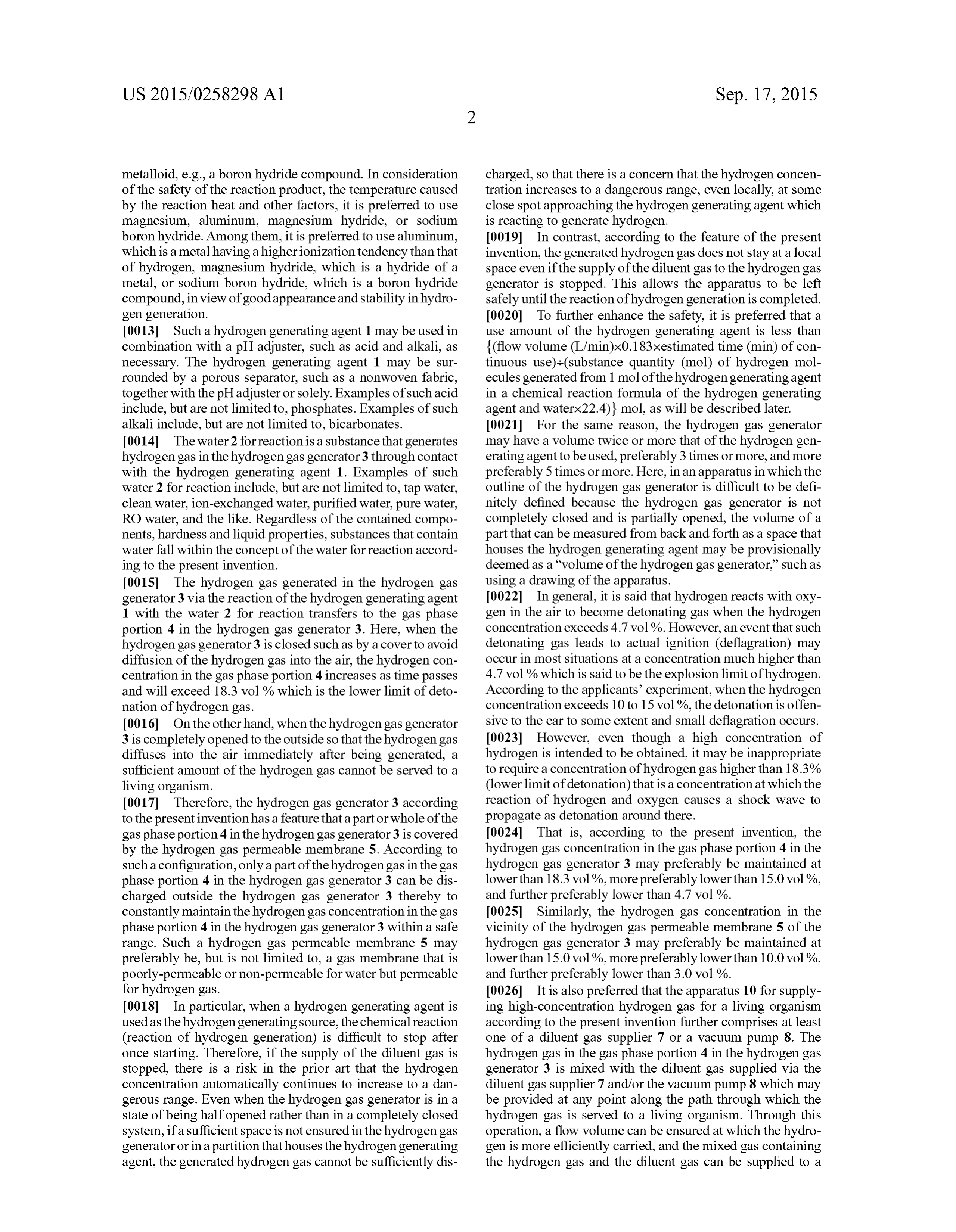

Page 4

US 2015/0258298 A1 Sep. 17, 2015

metalloid, e.g., a boron hydride compound. In consideration charged, so that there is a concern that the hydrogen concen of the safety of the reaction product, the temperature caused tration increases to a dangerous range, even locally, at Some by the reaction heat and other factors, it is preferred to use close spot approaching the hydrogen generating agent which magnesium, aluminum, magnesium hydride, or sodium is reacting to generate hydrogen. boronhydride. Among them, it is preferred to use aluminum, 0019. In contrast, according to the feature of the present which is a metal having a higher ionization tendency than that invention, the generated hydrogen gas does not stay at a local of hydrogen, magnesium hydride, which is a hydride of a space even if the Supply of the diluent gas to the hydrogen gas metal, or sodium boron hydride, which is a boron hydride generator is stopped. This allows the apparatus to be left compound, in view of good appearance and stability in hydro safely until the reaction of hydrogen generation is completed. gen generation. 0020. To further enhance the safety, it is preferred that a 0013 Such a hydrogen generating agent 1 may be used in use amount of the hydrogen generating agent is less than combination with a pH adjuster, such as acid and alkali, as {(flow volume (L/min)x0.183xestimated time (min) of con necessary. The hydrogen generating agent 1 may be Sur tinuous use)+(Substance quantity (mol) of hydrogen mol rounded by a porous separator, such as a nonwoven fabric, ecules generated from 1 mol of the hydrogen generating agent together with the pHadjuster or solely. Examples of such acid in a chemical reaction formula of the hydrogen generating include, but are not limited to, phosphates. Examples of Such agent and waterx22.4) mol, as will be described later. alkali include, but are not limited to, bicarbonates. 0021 For the same reason, the hydrogen gas generator 0014. The water 2 for reaction is a substance that generates may have a Volume twice or more that of the hydrogen gen hydrogen gas in the hydrogen gas generator 3 through contact erating agent to be used, preferably 3 times or more, and more with the hydrogen generating agent 1. Examples of Such preferably 5 times or more. Here, in an apparatus in which the water 2 for reaction include, but are not limited to, tap water, outline of the hydrogen gas generator is difficult to be defi clean water, ion-exchanged water, purified water, pure water, nitely defined because the hydrogen gas generator is not RO water, and the like. Regardless of the contained compo completely closed and is partially opened, the Volume of a nents, hardness and liquid properties, Substances that contain part that can be measured from back and forth as a space that waterfall within the concept of the water for reaction accord houses the hydrogen generating agent may be provisionally ing to the present invention. deemed as a “volume of the hydrogen gas generator. Such as 0.015 The hydrogen gas generated in the hydrogen gas using a drawing of the apparatus.

generator 3 via the reaction of the hydrogen generating agent 0022. In general, it is said that hydrogen reacts with oxy 1 with the water 2 for reaction transfers to the gas phase gen in the air to become detonating gas when the hydrogen portion 4 in the hydrogen gas generator 3. Here, when the concentration exceeds 4.7 vol%. However, an event that such hydrogen gas generator 3 is closed Such as by a cover to avoid detonating gas leads to actual ignition (deflagration) may diffusion of the hydrogen gas into the air, the hydrogen con occur in most situations at a concentration much higher than centration in the gas phase portion 4 increases as time passes 4.7 vol% which is said to be the explosion limit of hydrogen. and will exceed 18.3 vol% which is the lower limit of deto According to the applicants experiment, when the hydrogen nation of hydrogen gas. concentration exceeds 10 to 15 vol%, the detonation is offen 0016. On the other hand, when the hydrogen gas generator sive to the ear to some extent and Small deflagration occurs. 3 is completely opened to the outside so that the hydrogen gas 0023. However, even though a high concentration of diffuses into the air immediately after being generated, a hydrogen is intended to be obtained, it may be inappropriate Sufficient amount of the hydrogen gas cannot be served to a to require a concentration of hydrogen gas higher than 18.3% living organism. (lower limit of detonation) that is a concentration at which the 0017. Therefore, the hydrogen gas generator 3 according reaction of hydrogen and oxygen causes a shock wave to to the present invention has a feature that apart or whole of the propagate as detonation around there. gas phase portion 4 in the hydrogen gas generator 3 is covered 0024. That is, according to the present invention, the by the hydrogen gas permeable membrane 5. According to hydrogen gas concentration in the gas phase portion 4 in the Such a configuration, only a part of the hydrogen gas in the gas hydrogen gas generator 3 may preferably be maintained at phase portion 4 in the hydrogen gas generator 3 can be dis lower than 18.3 vol%, more preferably lower than 15.0 vol%. charged outside the hydrogen gas generator 3 thereby to and further preferably lower than 4.7 vol%. constantly maintain the hydrogen gas concentration in the gas 0025 Similarly, the hydrogen gas concentration in the phase portion 4 in the hydrogen gas generator 3 within a safe vicinity of the hydrogen gas permeable membrane 5 of the range. Such a hydrogen gas permeable membrane 5 may hydrogen gas generator 3 may preferably be maintained at preferably be, but is not limited to, a gas membrane that is lowerthan 15.0 vol%, more preferably lowerthan 10.0 vol%. poorly-permeable or non-permeable for water but permeable and further preferably lower than 3.0 vol%. for hydrogen gas. 0026. It is also preferred that the apparatus 10 for supply 0.018. In particular, when a hydrogen generating agent is ing high-concentration hydrogen gas for a living organism used as the hydrogen generating source, the chemical reaction according to the present invention further comprises at least (reaction of hydrogen generation) is difficult to stop after one of a diluent gas Supplier 7 or a vacuum pump 8. The once starting. Therefore, if the Supply of the diluent gas is hydrogen gas in the gas phase portion 4 in the hydrogen gas stopped, there is a risk in the prior art that the hydrogen generator 3 is mixed with the diluent gas Supplied via the concentration automatically continues to increase to a dan diluent gas Supplier 7 and/or the vacuum pump 8 which may gerous range. Even when the hydrogen gas generator is in a be provided at any point along the path through which the state of being half opened rather than in a completely closed hydrogen gas is served to a living organism. Through this system, ifa Sufficient space is not ensured in the hydrogen gas operation, a flow volume can be ensured at which the hydro generator or inapartition that houses the hydrogen generating gen is more efficiently carried, and the mixed gas containing agent, the generated hydrogen gas cannot be sufficiently dis the hydrogen gas and the diluent gas can be Supplied to a

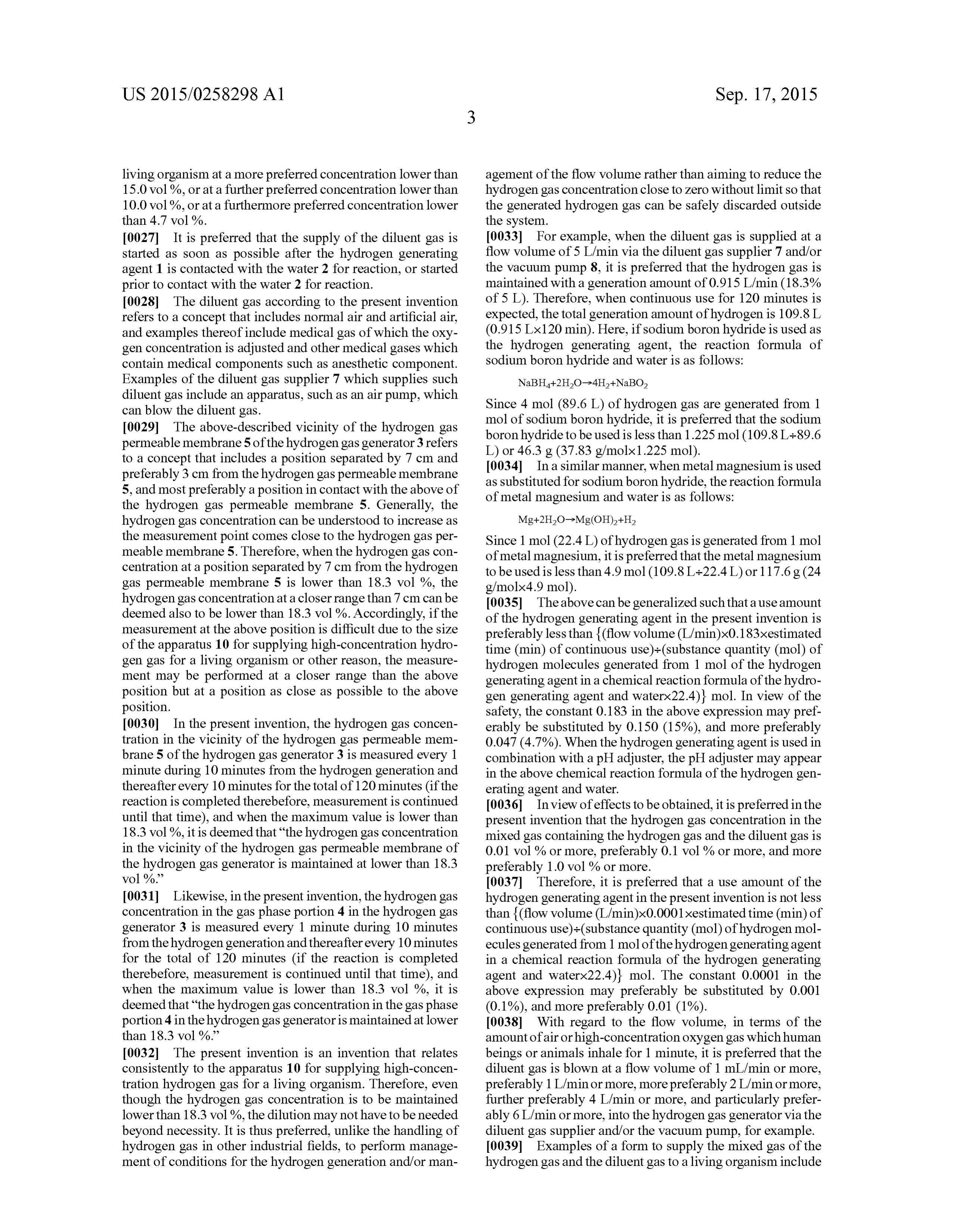

Page 5

US 2015/0258298 A1 Sep. 17, 2015

living organism at a more preferred concentration lower than agement of the flow Volume rather than aiming to reduce the 15.0 vol%, or at a further preferred concentration lower than hydrogen gas concentration close to Zero without limit so that 10.0 vol%, or at a furthermore preferred concentration lower the generated hydrogen gas can be safely discarded outside than 4.7 vol%. the system.

0027. It is preferred that the supply of the diluent gas is 0033 For example, when the diluent gas is supplied at a started as soon as possible after the hydrogen generating flow volume of 5 L/min via the diluent gas supplier 7 and/or agent 1 is contacted with the water 2 for reaction, or started the vacuum pump 8, it is preferred that the hydrogen gas is prior to contact with the water 2 for reaction. maintained with a generation amount of 0.915 L/min (18.3% 0028. The diluent gas according to the present invention of 5 L). Therefore, when continuous use for 120 minutes is refers to a concept that includes normal air and artificial air, expected, the total generation amount of hydrogen is 109.8 L. and examples thereof include medical gas of which the oxy (0.915 Lx120 min). Here, if sodium boron hydride is used as gen concentration is adjusted and other medical gases which the hydrogen generating agent, the reaction formula of contain medical components such as anesthetic component. sodium boron hydride and water is as follows: Examples of the diluent gas supplier 7 which supplies such diluent gas include an apparatus, such as an air pump, which Since 4 mol (89.6 L) of hydrogen gas are generated from 1 can blow the diluent gas. mol of sodium boron hydride, it is preferred that the sodium 0029. The above-described vicinity of the hydrogen gas boronhydride to be used is less than 1.225 mol (109.8 L--89.6 permeable membrane 5 of the hydrogen gas generator 3 refers L) or 46.3 g (37.83 g/molx 1.225 mol). to a concept that includes a position separated by 7 cm and 0034. In a similar manner, when metal magnesium is used preferably 3 cm from the hydrogen gas permeable membrane as substituted for sodium boronhydride, the reaction formula 5, and most preferably a position in contact with the above of of metal magnesium and water is as follows: the hydrogen gas permeable membrane 5. Generally, the hydrogen gas concentration can be understood to increase as the measurement point comes close to the hydrogen gas per Since 1 mol (22.4 L) of hydrogen gas is generated from 1 mol meable membrane 5. Therefore, when the hydrogen gas con of metal magnesium, it is preferred that the metal magnesium centration at a position separated by 7 cm from the hydrogen to be used is less than 4.9 mol (109.8 L-22.4 L) or 117.6 g (24 gas permeable membrane 5 is lower than 18.3 vol %, the g/molx4.9 mol).

hydrogen gas concentration at a closer range than 7 cm can be 0035. The above can be generalized such that a use amount deemed also to be lower than 18.3 vol%. Accordingly, if the of the hydrogen generating agent in the present invention is measurement at the above position is difficult due to the size preferably less than {(flow volume (L/min)x0.183xestimated of the apparatus 10 for Supplying high-concentration hydro time (min) of continuous use)+(Substance quantity (mol) of gen gas for a living organism or other reason, the measure hydrogen molecules generated from 1 mol of the hydrogen ment may be performed at a closer range than the above generating agent in a chemical reaction formula of the hydro position but at a position as close as possible to the above gen generating agent and waterx22.4) mol. In view of the position. safety, the constant 0.183 in the above expression may pref 0030. In the present invention, the hydrogen gas concen erably be substituted by 0.150 (15%), and more preferably tration in the vicinity of the hydrogen gas permeable mem 0.047 (4.7%). When the hydrogen generating agent is used in brane 5 of the hydrogen gas generator 3 is measured every 1 combination with a pH adjuster, the pH adjuster may appear minute during 10 minutes from the hydrogen generation and in the above chemical reaction formula of the hydrogen gen thereafter every 10 minutes for the total of 120 minutes (if the erating agent and water.

reaction is completed therebefore, measurement is continued 0036 Inview of effects to be obtained, it is preferred in the until that time), and when the maximum value is lower than present invention that the hydrogen gas concentration in the 18.3 vol%, it is deemed that “the hydrogen gas concentration mixed gas containing the hydrogen gas and the diluent gas is in the vicinity of the hydrogen gas permeable membrane of 0.01 vol% or more, preferably 0.1 vol% or more, and more the hydrogen gas generator is maintained at lower than 18.3 preferably 1.0 vol% or more.

vol%. 0037. Therefore, it is preferred that a use amount of the 0031. Likewise, in the present invention, the hydrogen gas hydrogen generating agent in the present invention is not less concentration in the gas phase portion 4 in the hydrogen gas than {(flow volume (L/min)x0.0001xestimated time (min)of generator 3 is measured every 1 minute during 10 minutes continuous use)+(Substance quantity (mol) of hydrogen mol from the hydrogen generation and thereafter every 10 minutes ecules generated from 1 mol of the hydrogen generating agent for the total of 120 minutes (if the reaction is completed in a chemical reaction formula of the hydrogen generating therebefore, measurement is continued until that time), and agent and waterx22.4) mol. The constant 0.0001 in the when the maximum value is lower than 18.3 Vol %, it is above expression may preferably be substituted by 0.001 deemed that “the hydrogen gas concentration in the gas phase (0.1%), and more preferably 0.01 (1%). portion 4 in the hydrogen gas generatoris maintained at lower 0038. With regard to the flow volume, in terms of the than 18.3 vol%. amount of air or high-concentration oxygen gas which human 0032. The present invention is an invention that relates beings or animals inhale for 1 minute, it is preferred that the consistently to the apparatus 10 for Supplying high-concen diluent gas is blown at a flow volume of 1 mL/min or more, tration hydrogen gas for a living organism. Therefore, even preferably 1 L/minor more, more preferably 2L/min or more, though the hydrogen gas concentration is to be maintained further preferably 4 L/min or more, and particularly prefer lower than 18.3 vol%, the dilution may not have to be needed ably 6L/min or more, into the hydrogen gas generator via the beyond necessity. It is thus preferred, unlike the handling of diluent gas Supplier and/or the vacuum pump, for example. hydrogen gas in other industrial fields, to perform manage 0039 Examples of a form to supply the mixed gas of the ment of conditions for the hydrogen generation and/or man hydrogen gas and the diluent gas to a living organism include

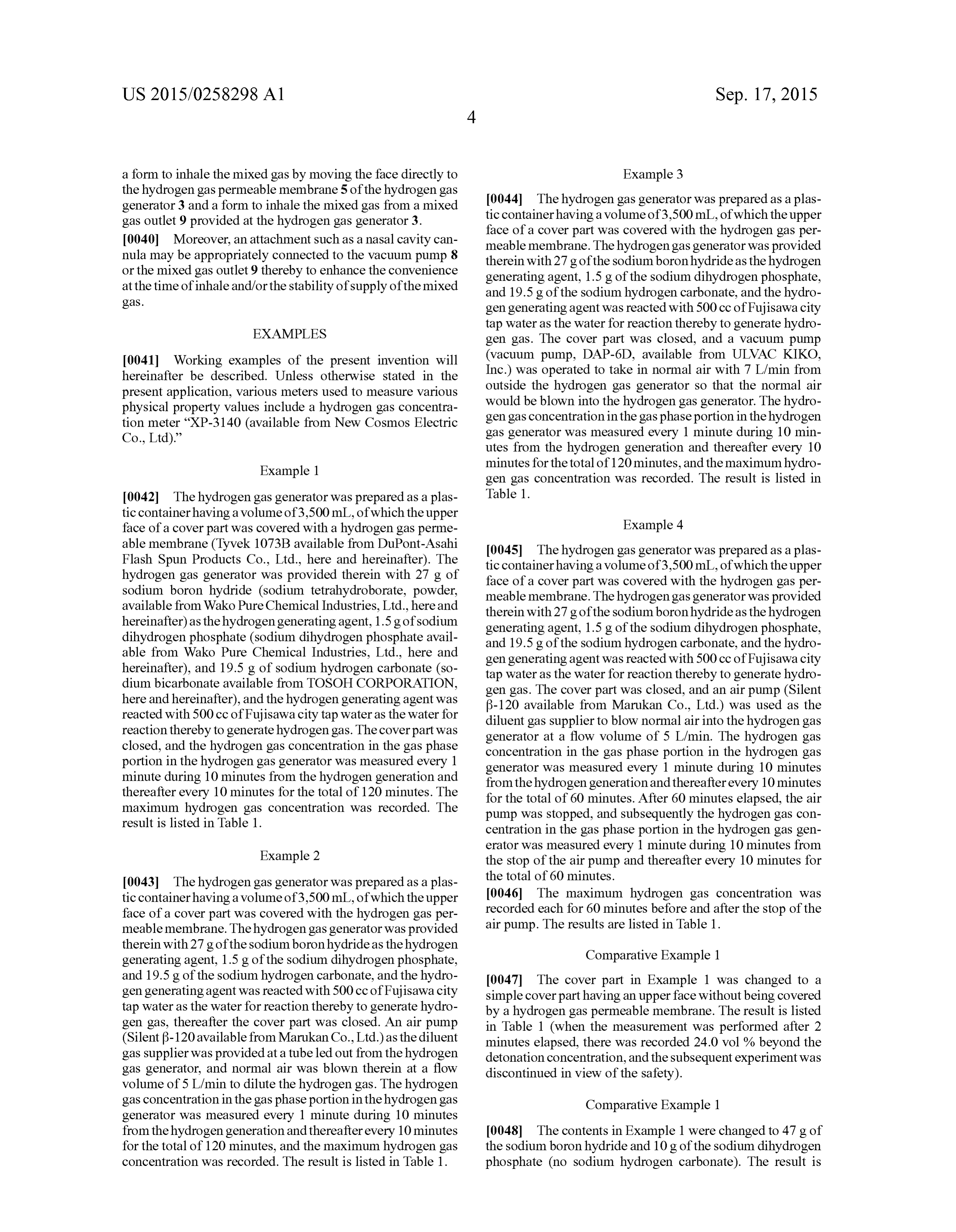

Page 6

US 2015/0258298 A1 Sep. 17, 2015

a form to inhale the mixed gas by moving the face directly to Example 3 the hydrogen gas permeable membrane 5 of the hydrogen gas 0044. The hydrogen gas generator was prepared as a plas generator 3 and a form to inhale the mixed gas from a mixed tic container having a volume of 3,500 mL, of which the upper gas outlet 9 provided at the hydrogen gas generator 3.

face of a cover part was covered with the hydrogen gas per 0040. Moreover, an attachment such as a nasal cavity can meable membrane. The hydrogen gas generator was provided nula may be appropriately connected to the vacuum pump 8 therein with 27g of the sodium boronhydrideas the hydrogen or the mixed gas outlet 9 thereby to enhance the convenience generating agent, 1.5g of the Sodium dihydrogen phosphate, at the time of inhale and/or the stability of supply of the mixed and 19.5g of the Sodium hydrogen carbonate, and the hydro gaS. gen generating agent was reacted with 500 cc of Fujisawa city

EXAMPLES

tap water as the water for reaction thereby to generate hydro gen gas. The cover part was closed, and a vacuum pump 0041 Working examples of the present invention will (vacuum pump, DAP-6D, available from ULVAC KIKO, hereinafter be described. Unless otherwise stated in the Inc.) was operated to take in normal air with 7 L/min from present application, various meters used to measure various outside the hydrogen gas generator so that the normal air physical property values include a hydrogen gas concentra would be blown into the hydrogen gas generator. The hydro tion meter “XP-3140 (available from New Cosmos Electric gen gas concentration in the gas phase portion in the hydrogen Co., Ltd).” gas generator was measured every 1 minute during 10 min utes from the hydrogen generation and thereafter every 10

Example 1 minutes for the total of 120 minutes, and the maximum hydro gen gas concentration was recorded. The result is listed in 0042. The hydrogen gas generator was prepared as a plas Table 1.

tic container having a volume of 3,500 mL, of which the upper face of a cover part was covered with a hydrogen gas perme Example 4 able membrane (Tyvek 1073B available from DuPont-Asahi 004.5 The hydrogen gas generator was prepared as a plas Flash Spun Products Co., Ltd., here and hereinafter). The tic container having a volume of 3,500 mL, of which the upper hydrogen gas generator was provided therein with 27 g of face of a cover part was covered with the hydrogen gas per sodium boron hydride (sodium tetrahydroborate, powder, meable membrane. The hydrogen gas generator was provided available from Wako Pure Chemical Industries, Ltd., here and therein with 27g of the sodium boronhydrideas the hydrogen hereinafter) as the hydrogen generating agent, 1.5g of sodium generating agent, 1.5g of the Sodium dihydrogen phosphate, dihydrogen phosphate (Sodium dihydrogen phosphate avail and 19.5g of the Sodium hydrogen carbonate, and the hydro able from Wako Pure Chemical Industries, Ltd., here and gen generating agent was reacted with 500 cc of Fujisawa city hereinafter), and 19.5 g of Sodium hydrogen carbonate (so tap water as the water for reaction thereby to generate hydro dium bicarbonate available from TOSOH CORPORATION, gen gas. The cover part was closed, and an air pump (Silent here and hereinafter), and the hydrogen generating agent was B-120 available from Marukan Co., Ltd.) was used as the reacted with 500 cc of Fujisawa city tap water as the water for diluent gas Supplier to blow normal air into the hydrogen gas reaction thereby to generate hydrogen gas. The coverpart was generator at a flow Volume of 5 L/min. The hydrogen gas closed, and the hydrogen gas concentration in the gas phase concentration in the gas phase portion in the hydrogen gas portion in the hydrogen gas generator was measured every 1 generator was measured every 1 minute during 10 minutes minute during 10 minutes from the hydrogen generation and from the hydrogen generation and thereafter every 10 minutes thereafter every 10 minutes for the total of 120 minutes. The for the total of 60 minutes. After 60 minutes elapsed, the air maximum hydrogen gas concentration was recorded. The pump was stopped, and Subsequently the hydrogen gas con result is listed in Table 1.

centration in the gas phase portion in the hydrogen gas gen

Example 2 erator was measured every 1 minute during 10 minutes from the stop of the air pump and thereafter every 10 minutes for 0043. The hydrogen gas generator was prepared as a plas the total of 60 minutes.

tic container having a volume of 3,500 mL, of which the upper 0046. The maximum hydrogen gas concentration was face of a cover part was covered with the hydrogen gas per recorded each for 60 minutes before and after the stop of the meable membrane. The hydrogen gas generator was provided air pump. The results are listed in Table 1. therein with 27g of the sodium boronhydrideas the hydrogen Comparative Example 1 generating agent, 1.5g of the Sodium dihydrogen phosphate, and 19.5g of the Sodium hydrogen carbonate, and the hydro 0047. The cover part in Example 1 was changed to a gen generating agent was reacted with 500 cc of Fujisawa city simple coverpart having an upper face without being covered tap water as the water for reaction thereby to generate hydro by a hydrogen gas permeable membrane. The result is listed gen gas, thereafter the cover part was closed. An air pump in Table 1 (when the measurement was performed after 2 (Silent B-120 available from Marukan Co., Ltd.) as the diluent minutes elapsed, there was recorded 24.0 vol% beyond the gas Supplier was provided at a tube led out from the hydrogen detonation concentration, and the Subsequent experiment was gas generator, and normal air was blown therein at a flow discontinued in view of the safety). Volume of 5 L/min to dilute the hydrogen gas. The hydrogen gas concentration in the gas phase portion in the hydrogen gas Comparative Example 1 generator was measured every 1 minute during 10 minutes from the hydrogen generation and thereafter every 10 minutes 0048. The contents in Example 1 were changed to 47 g of for the total of 120 minutes, and the maximum hydrogen gas the sodium boronhydride and 10g of the sodium dihydrogen concentration was recorded. The result is listed in Table 1. phosphate (no Sodium hydrogen carbonate). The result is

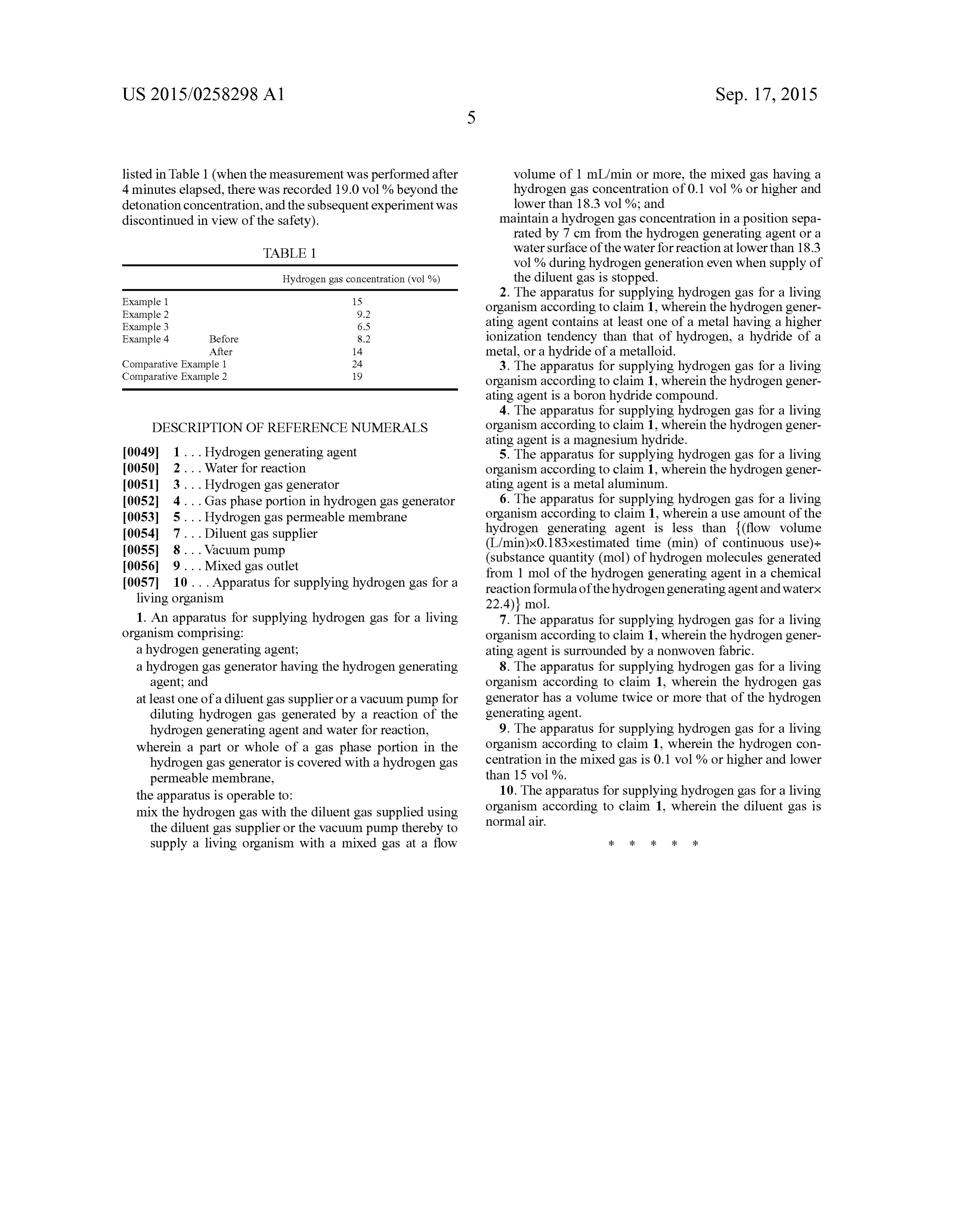

Page 7

US 2015/0258298 A1 Sep. 17, 2015

listed in Table 1 (when the measurement was performed after Volume of 1 mL/min or more, the mixed gas having a 4 minutes elapsed, there was recorded 19.0 vol% beyond the hydrogen gas concentration of 0.1 vol% or higher and detonation concentration, and the Subsequent experiment was lower than 18.3 vol%; and discontinued in view of the safety). maintain a hydrogen gas concentration in a position sepa rated by 7 cm from the hydrogen generating agent or a

TABLE 1. water surface of the water for reaction at lower than 18.3 Vol.% during hydrogen generation even when Supply of

Hydrogen gas concentration (vol%) the diluent gas is stopped.

2. The apparatus for Supplying hydrogen gas for a living

Example 2 9.2 organism according to claim 1, wherein the hydrogen gener Example 3 6.5 ating agent contains at least one of a metal having a higher Example 4 Before 8.2 ionization tendency than that of hydrogen, a hydride of a After 14 metal, or a hydride of a metalloid.

Comparative Example 1 24 3. The apparatus for Supplying hydrogen gas for a living Comparative Example 2 19 organism according to claim 1, wherein the hydrogen gener ating agent is a boron hydride compound.

4. The apparatus for Supplying hydrogen gas for a living

DESCRIPTION OF REFERENCE NUMERALS organism according to claim 1, wherein the hydrogen gener ating agent is a magnesium hydride.

0049. 1 ... Hydrogen generating agent 5. The apparatus for Supplying hydrogen gas for a living 0050 2 ... Water for reaction organism according to claim 1, wherein the hydrogen gener 0051 3... Hydrogen gas generator ating agent is a metal aluminum. 0.052 4. . . Gas phase portion in hydrogen gas generator 6. The apparatus for Supplying hydrogen gas for a living 0053 5... Hydrogen gas permeable membrane organism according to claim 1, wherein a use amount of the 0054 7... Diluent gas supplier hydrogen generating agent is less than {(flow volume 0055 8... Vacuum pump (L/min)x0.183xestimated time (min) of continuous use)-- (Substance quantity (mol) of hydrogen molecules generated 0056 9... Mixed gas outlet from 1 mol of the hydrogen generating agent in a chemical 0057 10... Apparatus for supplying hydrogen gas for a reaction formula of the hydrogen generating agent and waterx living organism 22.4) mol.

1. An apparatus for Supplying hydrogen gas for a living 7. The apparatus for supplying hydrogen gas for a living organism comprising: organism according to claim 1, wherein the hydrogen gener a hydrogen generating agent, ating agent is Surrounded by a nonwoven fabric. a hydrogen gas generator having the hydrogen generating 8. The apparatus for Supplying hydrogen gas for a living agent; and organism according to claim 1, wherein the hydrogen gas at least one of a diluent gas Supplier or a vacuum pump for generator has a Volume twice or more that of the hydrogen diluting hydrogen gas generated by a reaction of the generating agent.

hydrogen generating agent and water for reaction, 9. The apparatus for Supplying hydrogen gas for a living wherein a part or whole of a gas phase portion in the organism according to claim 1, wherein the hydrogen con hydrogen gas generator is covered with a hydrogen gas centration in the mixed gas is 0.1 vol% or higher and lower permeable membrane, than 15 vol%.

the apparatus is operable to: 10. The apparatus for Supplying hydrogen gas for a living mix the hydrogen gas with the diluent gas Supplied using organism according to claim 1, wherein the diluent gas is normal air.

the diluent gas Supplier or the vacuum pump thereby to

Supply a living organism with a mixed gas at a flow
