Electrolysis system and method with a high electrical energy transformation rate

Page 1 — bibliographic record

Page 2

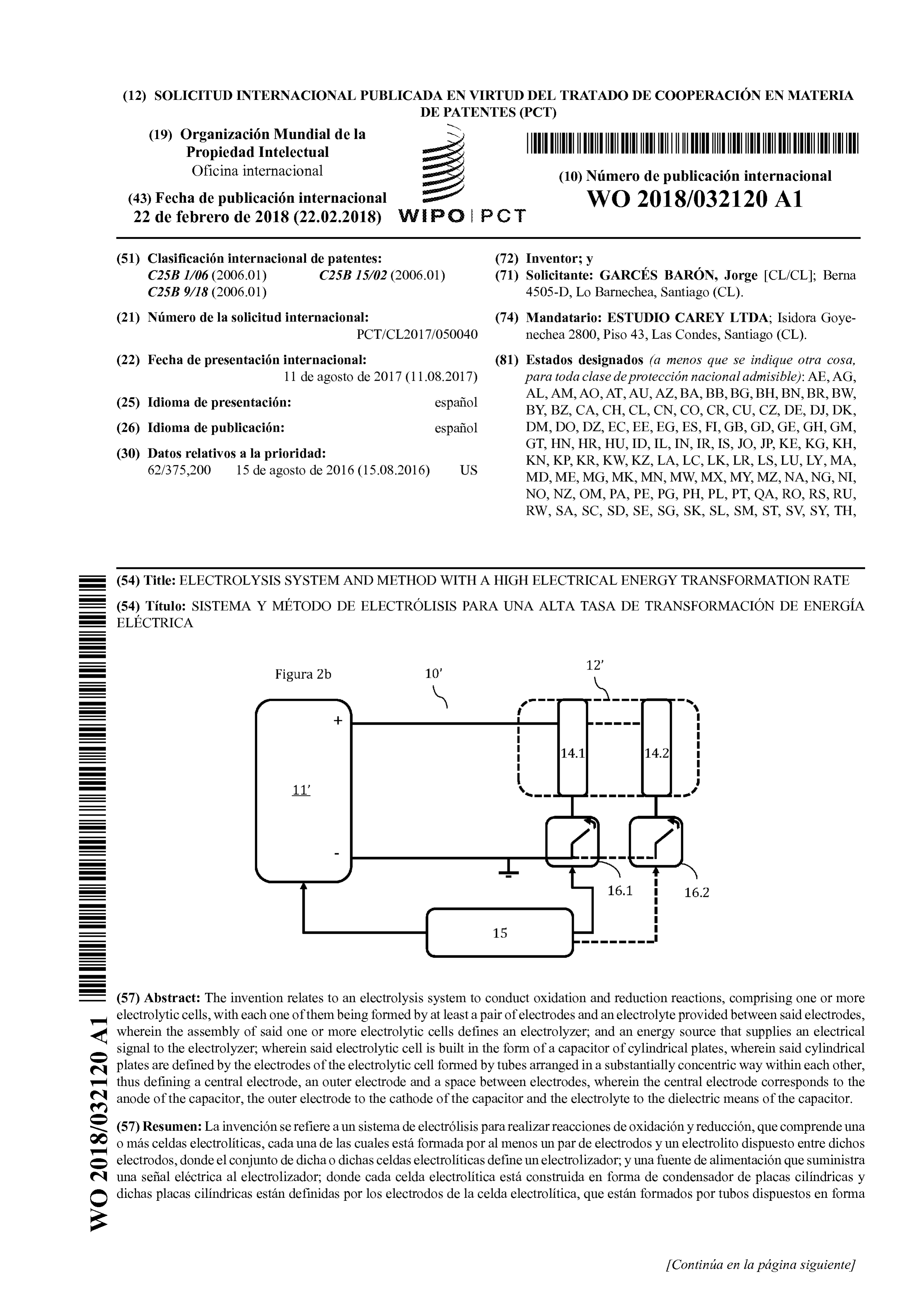

(12) SOLICITUD INTERNACIONAL PUBLICADA EN VIRTUD DEL TRATADO DE COOPERACION EN MATERIAL

DE PATENTES (PCT)

(19) Organizaci6n Mundial de la

Propiedad Intelectual

Oficina internacional (10) Nnmero de publicaci6n internacional (43) Fecha de publicaci6n internacional W O 2018/032120 Al 22 de febrero de 2018 (22.02.2018) W IPO I PCT

(51) Clasificaci6n internacional de patentes: (72) Inventor; y

C25B1/06(2006.01) C25B15/02(2006.01) (71) Solicitante: GARCES BARON, Jorge [CL/CL]; Berna C25B 9/18 (2006.01) 4505-D, Lo Barnechea, Santiago (CL).

(21) Nnmero de la solicitud internacional: (74) Mandatario: ESTUDIO CAREY LTDA; Isidora Goye PCT/CL2017/050040 nechea 2800, Piso 43, Las Condes, Santiago (CL).

(22) Fecha de presentaci6n internacional: (81) Estados designados (a menos que se indique otra cosa, 11 de agosto de 2017 (11.08.2017) para toda clase deprotecci6n nacionaladmisible): AE, AG,

(25) Idioma de presentaci6n: espanol BY,BZ, CA, CH, CL, CN, CO, CR, CU, CZ, DE, DJ, DK, (26) Idioma de publicaci6n: espafiol DM, DO, DZ, EC, EE, EG, ES, Fl, GB, GD, GE, GH, GM,

.el o a laGT, HN, HR, HU, ID, IL, IN, IR, IS, JO, JP, KE, KG, KH, (30) Datos relatives a la prioridad: KN, KP, KR, KW, KZ, LA, LC, LK, LR, LS, LU, LY, MA, 62/375,200 15deagostode2016(15.08.2016) US MD, ME, MG, MK, MN, MW, MX, MY, MZ, NA, NG, NI,

(54) Title: ELECTROLYSIS SYSTEM AND METHOD WITH A HIGH ELECTRICAL ENERGY TRANSFORMATION RATE

(54) Titulo: SISTEMA Y MTODO DE ELECTROLISIS PARA UNA ALTA TASA DE TRANSFORMACION DE ENERGA

ELICTRICA

Figura 2b 10' 12'

(57) Abstract: The invention relates to an electrolysis system to conduct oxidation and reduction reactions, comprising one or more electrolytic cells, with each one of them being formed by at least a pair of electrodes and an electrolyte provided between said electrodes, wherein the assembly of said one or more electrolytic cells defines an electrolyzer; and an energy source that supplies an electrical signal to the electrolyzer; wherein said electrolytic cell is built in the form of a capacitor of cylindrical plates, wherein said cylindrical f4iplates are defined by the electrodes of the electrolytic cell formed by tubes arranged in a substantially concentric way within each other, thus defining a central electrode, an outer electrode and a space between electrodes, wherein the central electrode corresponds to the " anode of the capacitor, the outer electrode to the cathode of the capacitor and the electrolyte to the dielectric means of the capacitor.

(57) Resumen: La invenci6n se refiere a un sistema de electr6isis para realizar reacciones de oxidaci6n y reducci6n, que comprende una o mis celdas electroliticas, cada una de las cuales esti formada por al menos un par de electrodos y un electrolito dispuesto entre dichos electrodos, donde el conjunto de dicha o dichas celdas electroliticas define un electrolizador; y una fuente de alimentacion que suministra N una sefial el6ctrica al electrolizador; donde cada celda electrolitica esta construida en forma de condensador de placas cilindricas y dichas placas cilindricas estin definidas por los electrodos de la celda electrolitica, que estin formados por tubos dispuestos en forma

Page 3

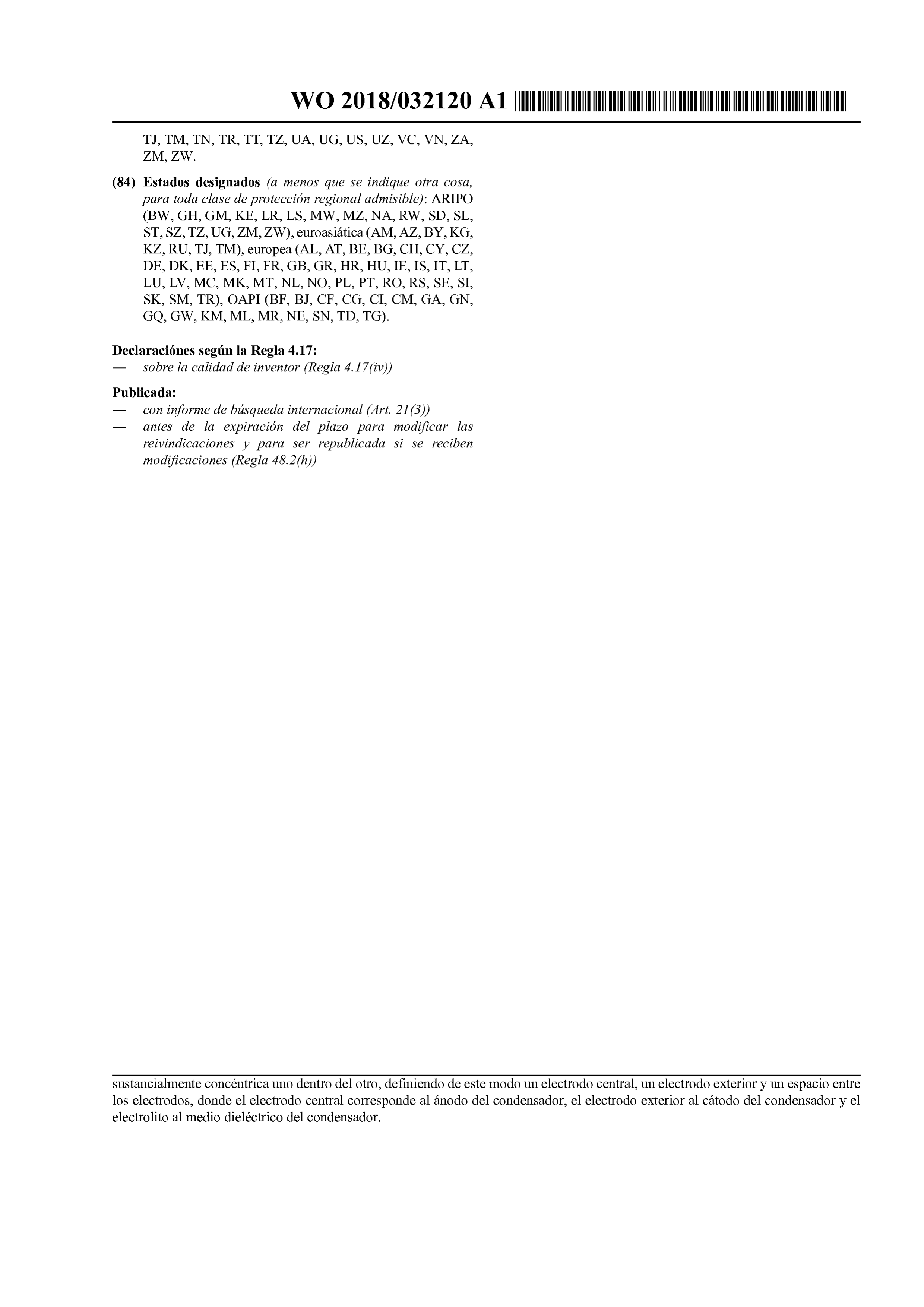

W O 2018/032120 Alll||l||l|||||||||||||||||ID|||||||||||||||||||||||||||||||

(84) Estados designados (a menos que se indique otra cosa, para toda clase de protecci6n regionaladmisible): ARIPO

ST, SZ, TZ, UG, ZM, ZW), euroasiatica (AM, AZ, BY, KG, KZ, RU, TJ, TM), europea (AL, AT, BE, BG, CH, CY, CZ,

SK, SM, TR), OAPI (BF, BJ, CF, CG, CI, CM, GA, GN,

Declaraci6nes seg6n la Regla 4.17:

- sobre la calidadde inventor (Regla 4.17(iv))

Publicada:

- con informe de bisqueda internacional(Art. 21(3)) - antes de la expiraci6n del plazo para modificar las reivindicaciones y para ser republicada si se reciben modificaciones (Regla 48.2(h))

sustancialmente conc6ntrica uno dentro del otro, defmiendo de este modo un electrodo central, un electrodo exterior y un espacio entre los electrodos, donde el electrodo central corresponde al inodo del condensador, el electrodo exterior al citodo del condensador y el electrolito al medio diel6ctrico del condensador.

Page 4

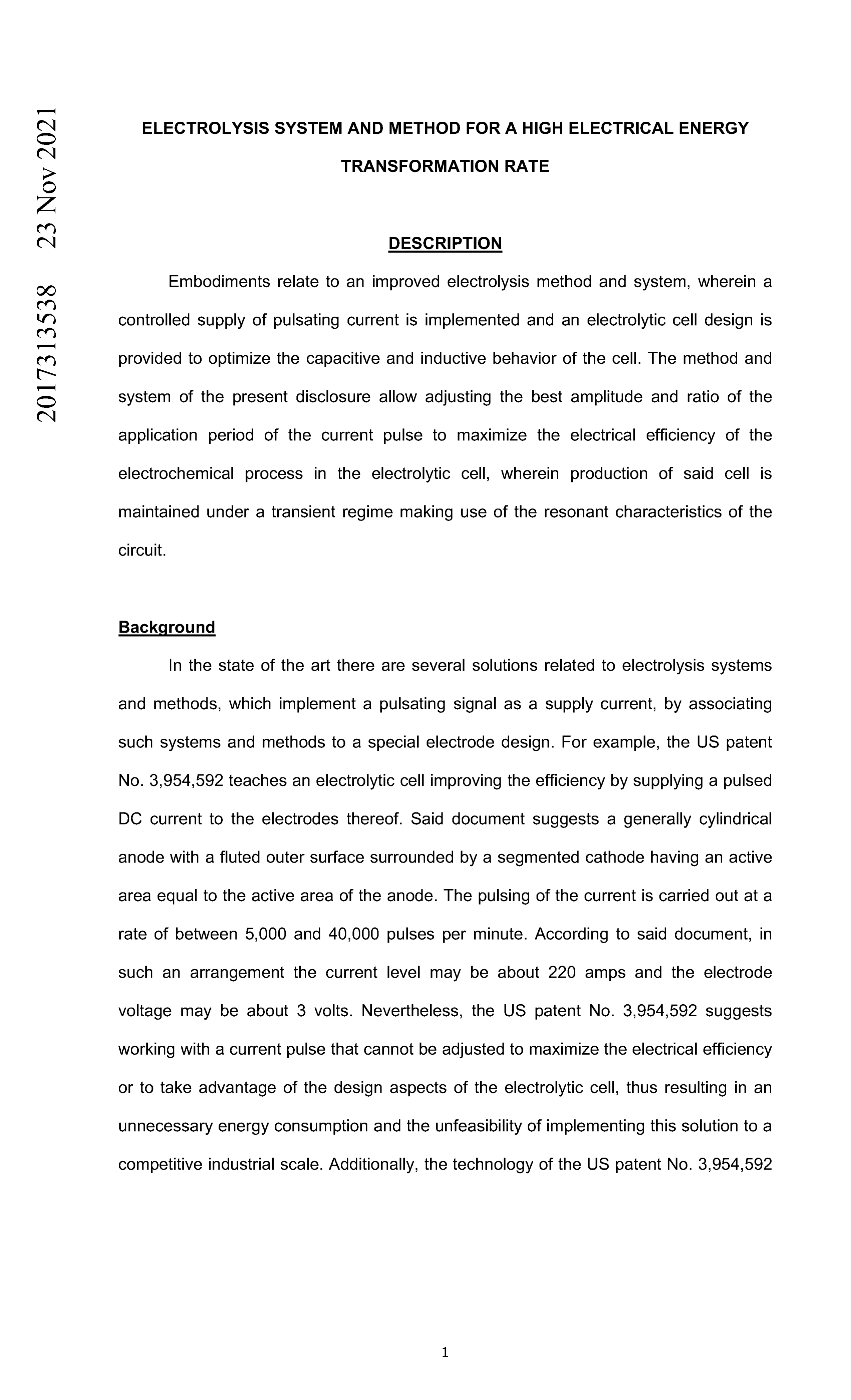

ELECTROLYSIS SYSTEM AND METHOD FOR A HIGH ELECTRICAL ENERGY

TRANSFORMATION RATE

DESCRIPTION

Embodiments relate to an improved electrolysis method and system, wherein a controlled supply of pulsating current is implemented and an electrolytic cell design is provided to optimize the capacitive and inductive behavior of the cell. The method and system of the present disclosure allow adjusting the best amplitude and ratio of the application period of the current pulse to maximize the electrical efficiency of the electrochemical process in the electrolytic cell, wherein production of said cell is maintained under a transient regime making use of the resonant characteristics of the circuit.

Background

In the state of the art there are several solutions related to electrolysis systems and methods, which implement a pulsating signal as a supply current, by associating such systems and methods to a special electrode design. For example, the US patent No. 3,954,592 teaches an electrolytic cell improving the efficiency by supplying a pulsed DC current to the electrodes thereof. Said document suggests a generally cylindrical anode with a fluted outer surface surrounded by a segmented cathode having an active area equal to the active area of the anode. The pulsing of the current is carried out at a rate of between 5,000 and 40,000 pulses per minute. According to said document, in such an arrangement the current level may be about 220 amps and the electrode voltage may be about 3 volts. Nevertheless, the US patent No. 3,954,592 suggests working with a current pulse that cannot be adjusted to maximize the electrical efficiency or to take advantage of the design aspects of the electrolytic cell, thus resulting in an unnecessary energy consumption and the unfeasibility of implementing this solution to a competitive industrial scale. Additionally, the technology of the US patent No. 3,954,592

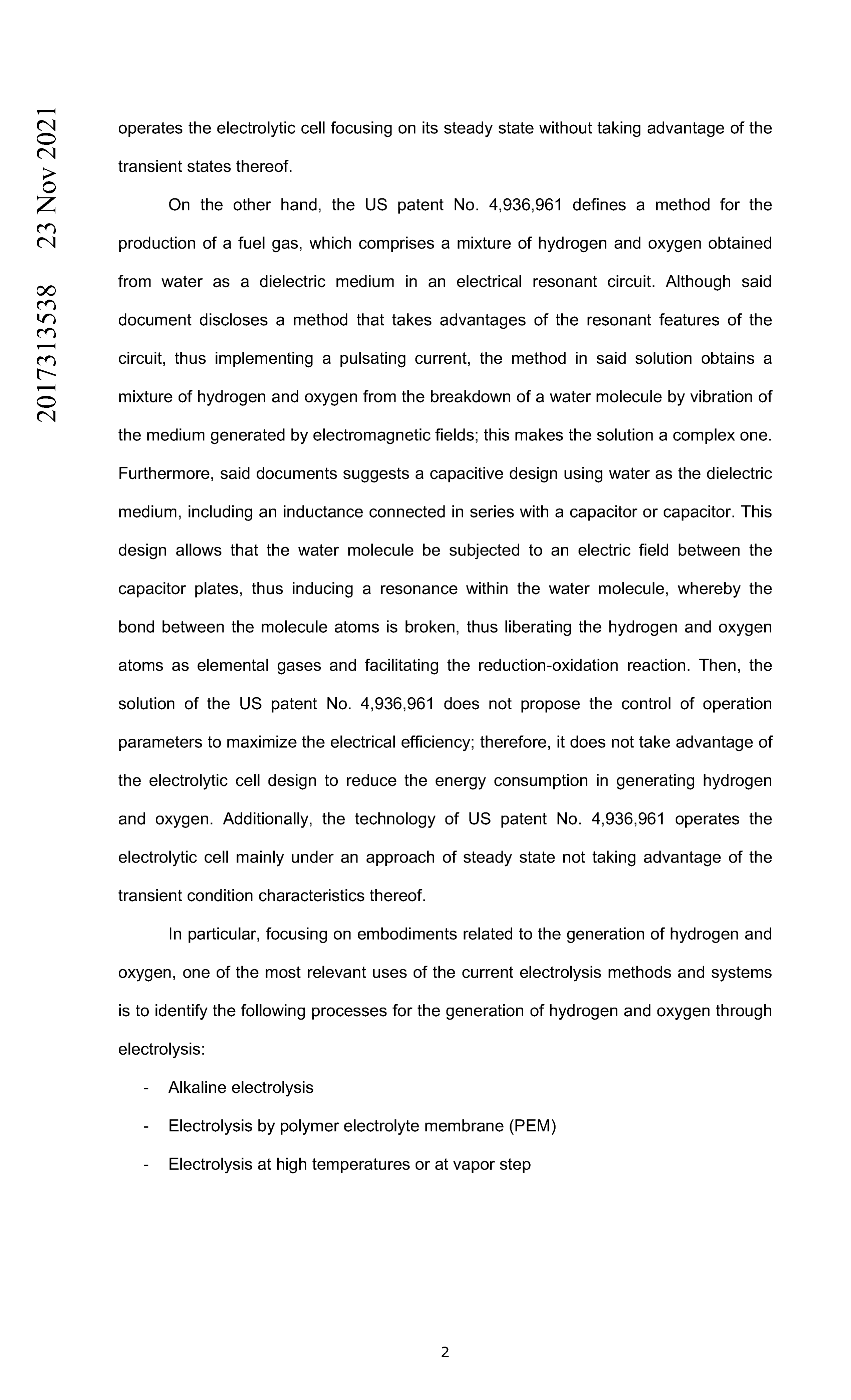

Page 5

operates the electrolytic cell focusing on its steady state without taking advantage of the transient states thereof.

On the other hand, the US patent No. 4,936,961 defines a method for the production of a fuel gas, which comprises a mixture of hydrogen and oxygen obtained from water as a dielectric medium in an electrical resonant circuit. Although said document discloses a method that takes advantages of the resonant features of the circuit, thus implementing a pulsating current, the method in said solution obtains a mixture of hydrogen and oxygen from the breakdown of a water molecule by vibration of the medium generated by electromagnetic fields; this makes the solution a complex one. Furthermore, said documents suggests a capacitive design using water as the dielectric medium, including an inductance connected in series with a capacitor or capacitor. This design allows that the water molecule be subjected to an electric field between the capacitor plates, thus inducing a resonance within the water molecule, whereby the bond between the molecule atoms is broken, thus liberating the hydrogen and oxygen atoms as elemental gases and facilitating the reduction-oxidation reaction. Then, the solution of the US patent No. 4,936,961 does not propose the control of operation parameters to maximize the electrical efficiency; therefore, it does not take advantage of the electrolytic cell design to reduce the energy consumption in generating hydrogen and oxygen. Additionally, the technology of US patent No. 4,936,961 operates the electrolytic cell mainly under an approach of steady state not taking advantage of the transient condition characteristics thereof.

In particular, focusing on embodiments related to the generation of hydrogen and oxygen, one of the most relevant uses of the current electrolysis methods and systems is to identify the following processes for the generation of hydrogen and oxygen through electrolysis:

- Alkaline electrolysis - Electrolysis by polymer electrolyte membrane (PEM) - Electrolysis at high temperatures or at vapor step

Page 6

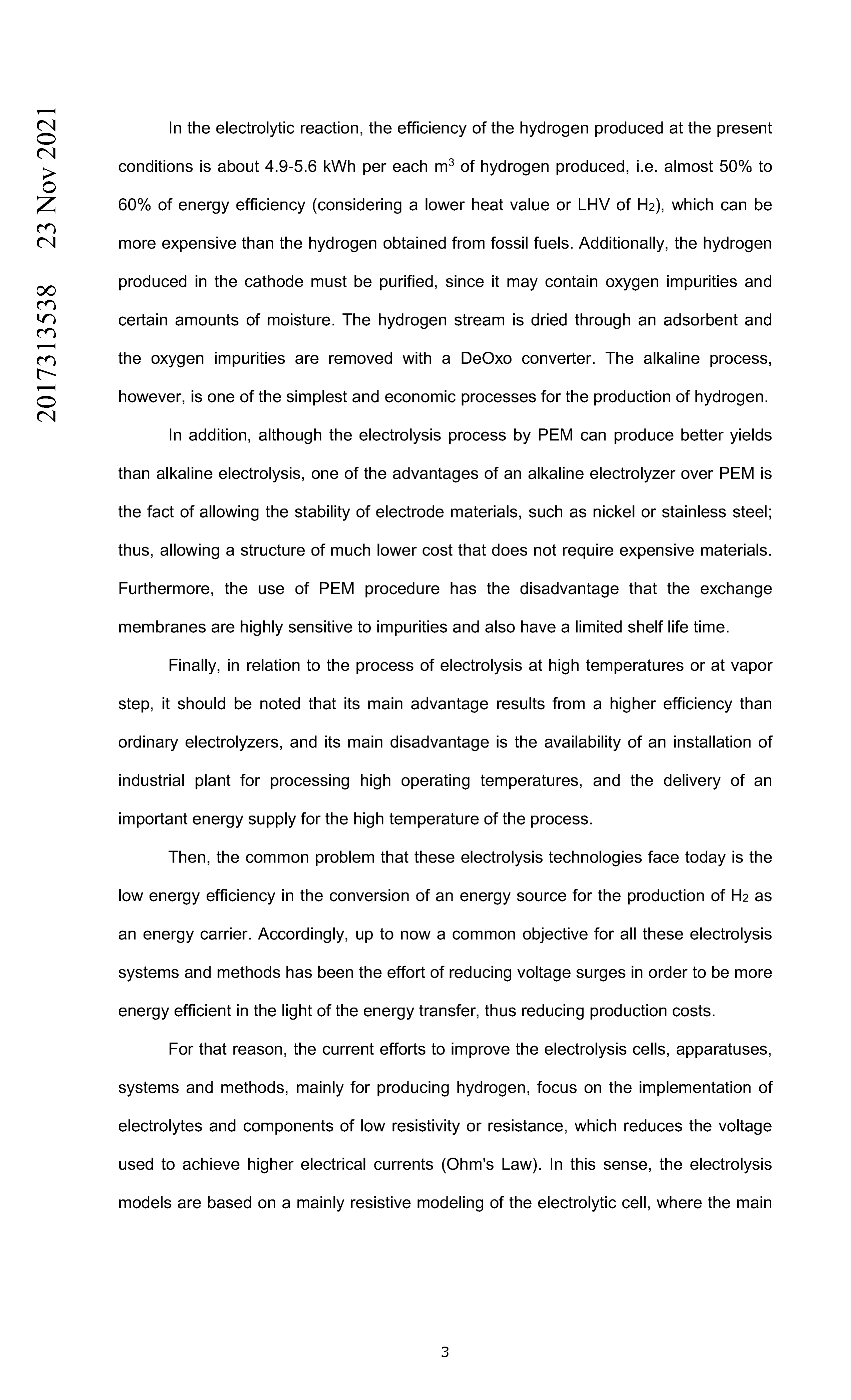

In the electrolytic reaction, the efficiency of the hydrogen produced at the present conditions is about 4.9-5.6 kWh per each m 3 of hydrogen produced, i.e. almost 50% to 60% of energy efficiency (considering a lower heat value or LHV of H2), which can be more expensive than the hydrogen obtained from fossil fuels. Additionally, the hydrogen produced in the cathode must be purified, since it may contain oxygen impurities and certain amounts of moisture. The hydrogen stream is dried through an adsorbent and the oxygen impurities are removed with a DeOxo converter. The alkaline process, however, is one of the simplest and economic processes for the production of hydrogen. In addition, although the electrolysis process by PEM can produce better yields than alkaline electrolysis, one of the advantages of an alkaline electrolyzer over PEM is the fact of allowing the stability of electrode materials, such as nickel or stainless steel; thus, allowing a structure of much lower cost that does not require expensive materials. Furthermore, the use of PEM procedure has the disadvantage that the exchange membranes are highly sensitive to impurities and also have a limited shelf life time. Finally, in relation to the process of electrolysis at high temperatures or at vapor step, it should be noted that its main advantage results from a higher efficiency than ordinary electrolyzers, and its main disadvantage is the availability of an installation of industrial plant for processing high operating temperatures, and the delivery of an important energy supply for the high temperature of the process.

Then, the common problem that these electrolysis technologies face today is the low energy efficiency in the conversion of an energy source for the production of H2 as an energy carrier. Accordingly, up to now a common objective for all these electrolysis systems and methods has been the effort of reducing voltage surges in order to be more energy efficient in the light of the energy transfer, thus reducing production costs. For that reason, the current efforts to improve the electrolysis cells, apparatuses, systems and methods, mainly for producing hydrogen, focus on the implementation of electrolytes and components of low resistivity or resistance, which reduces the voltage used to achieve higher electrical currents (Ohm's Law). In this sense, the electrolysis models are based on a mainly resistive modeling of the electrolytic cell, where the main

Page 7

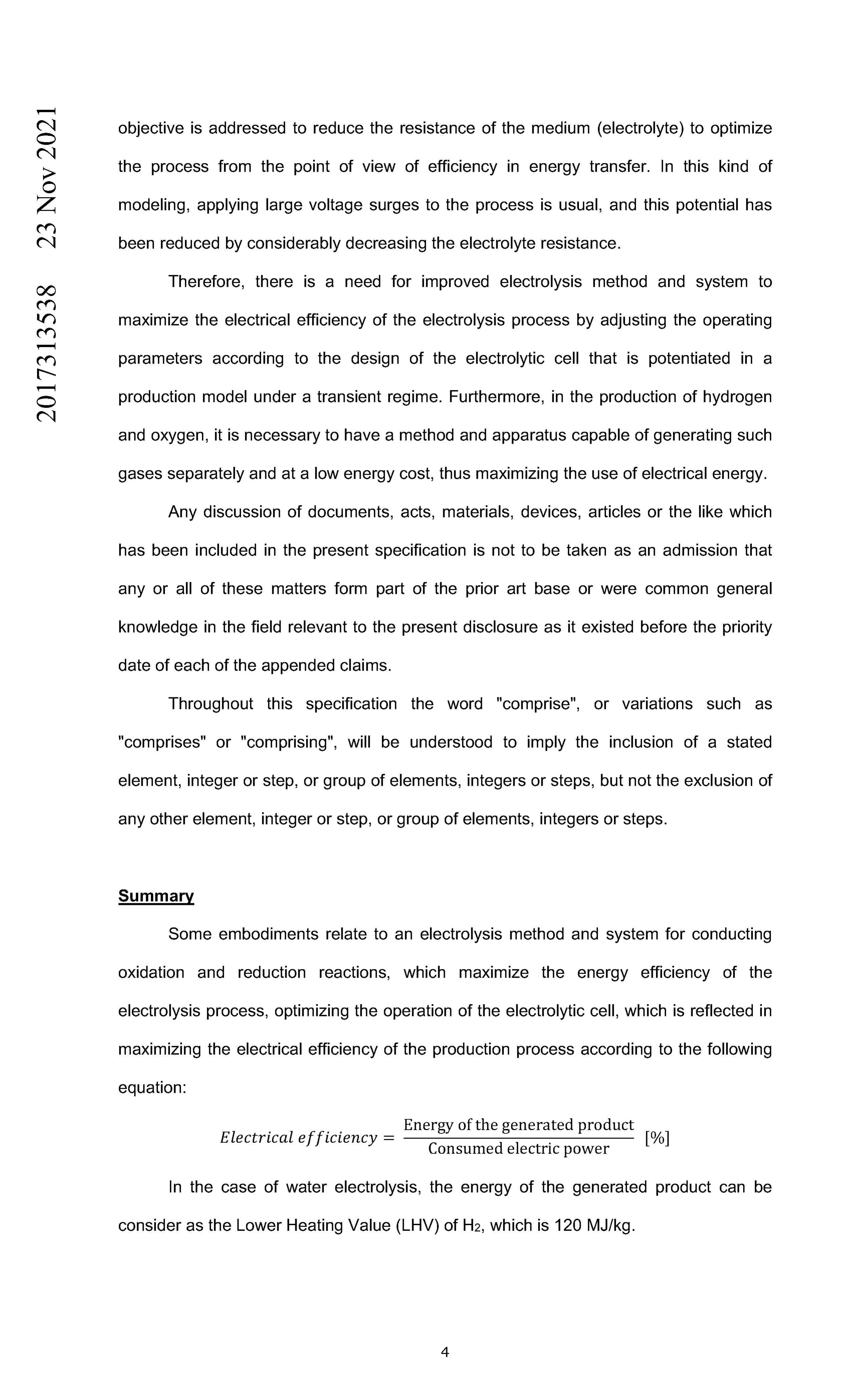

objective is addressed to reduce the resistance of the medium (electrolyte) to optimize the process from the point of view of efficiency in energy transfer. In this kind of modeling, applying large voltage surges to the process is usual, and this potential has been reduced by considerably decreasing the electrolyte resistance.

Therefore, there is a need for improved electrolysis method and system to maximize the electrical efficiency of the electrolysis process by adjusting the operating parameters according to the design of the electrolytic cell that is potentiated in a production model under a transient regime. Furthermore, in the production of hydrogen and oxygen, it is necessary to have a method and apparatus capable of generating such gases separately and at a low energy cost, thus maximizing the use of electrical energy. Any discussion of documents, acts, materials, devices, articles or the like which has been included in the present specification is not to be taken as an admission that any or all of these matters form part of the prior art base or were common general knowledge in the field relevant to the present disclosure as it existed before the priority date of each of the appended claims.

Throughout this specification the word "comprise", or variations such as "comprises" or "comprising", will be understood to imply the inclusion of a stated element, integer or step, or group of elements, integers or steps, but not the exclusion of any other element, integer or step, or group of elements, integers or steps. Summary

Some embodiments relate to an electrolysis method and system for conducting oxidation and reduction reactions, which maximize the energy efficiency of the electrolysis process, optimizing the operation of the electrolytic cell, which is reflected in maximizing the electrical efficiency of the production process according to the following equation:

Energy of the generated product

Electricalefficiency Consumed electric power

In the case of water electrolysis, the energy of the generated product can be consider as the Lower Heating Value (LHV) of H2, which is 120 MJ/kg.

Page 8

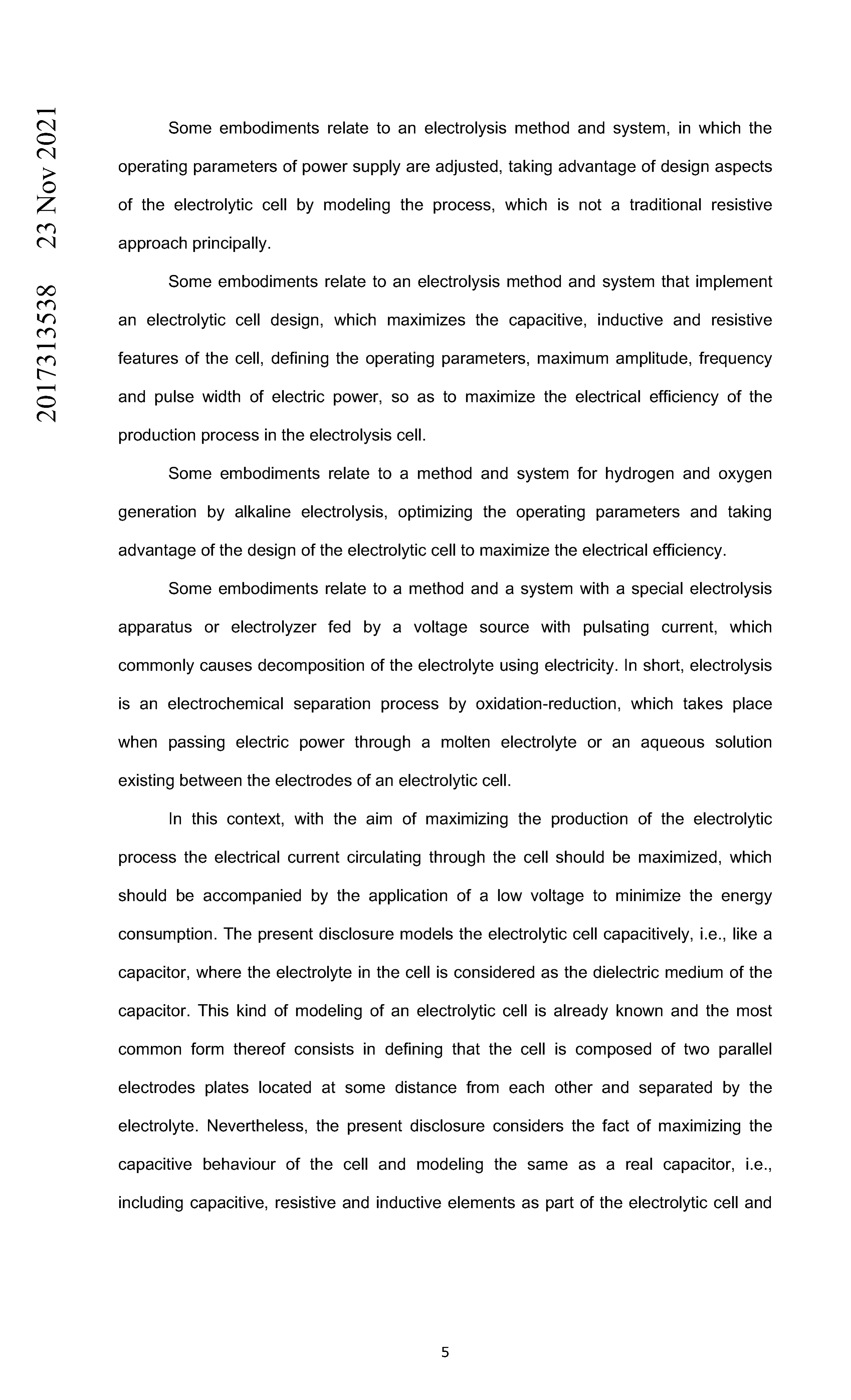

Some embodiments relate to an electrolysis method and system, in which the operating parameters of power supply are adjusted, taking advantage of design aspects of the electrolytic cell by modeling the process, which is not a traditional resistive approach principally.

Some embodiments relate to an electrolysis method and system that implement an electrolytic cell design, which maximizes the capacitive, inductive and resistive features of the cell, defining the operating parameters, maximum amplitude, frequency and pulse width of electric power, so as to maximize the electrical efficiency of the production process in the electrolysis cell.

Some embodiments relate to a method and system for hydrogen and oxygen generation by alkaline electrolysis, optimizing the operating parameters and taking advantage of the design of the electrolytic cell to maximize the electrical efficiency. Some embodiments relate to a method and a system with a special electrolysis apparatus or electrolyzer fed by a voltage source with pulsating current, which commonly causes decomposition of the electrolyte using electricity. In short, electrolysis is an electrochemical separation process by oxidation-reduction, which takes place when passing electric power through a molten electrolyte or an aqueous solution existing between the electrodes of an electrolytic cell.

In this context, with the aim of maximizing the production of the electrolytic process the electrical current circulating through the cell should be maximized, which should be accompanied by the application of a low voltage to minimize the energy consumption. The present disclosure models the electrolytic cell capacitively, i.e., like a capacitor, where the electrolyte in the cell is considered as the dielectric medium of the capacitor. This kind of modeling of an electrolytic cell is already known and the most common form thereof consists in defining that the cell is composed of two parallel electrodes plates located at some distance from each other and separated by the electrolyte. Nevertheless, the present disclosure considers the fact of maximizing the capacitive behaviour of the cell and modeling the same as a real capacitor, i.e., including capacitive, resistive and inductive elements as part of the electrolytic cell and

Page 9

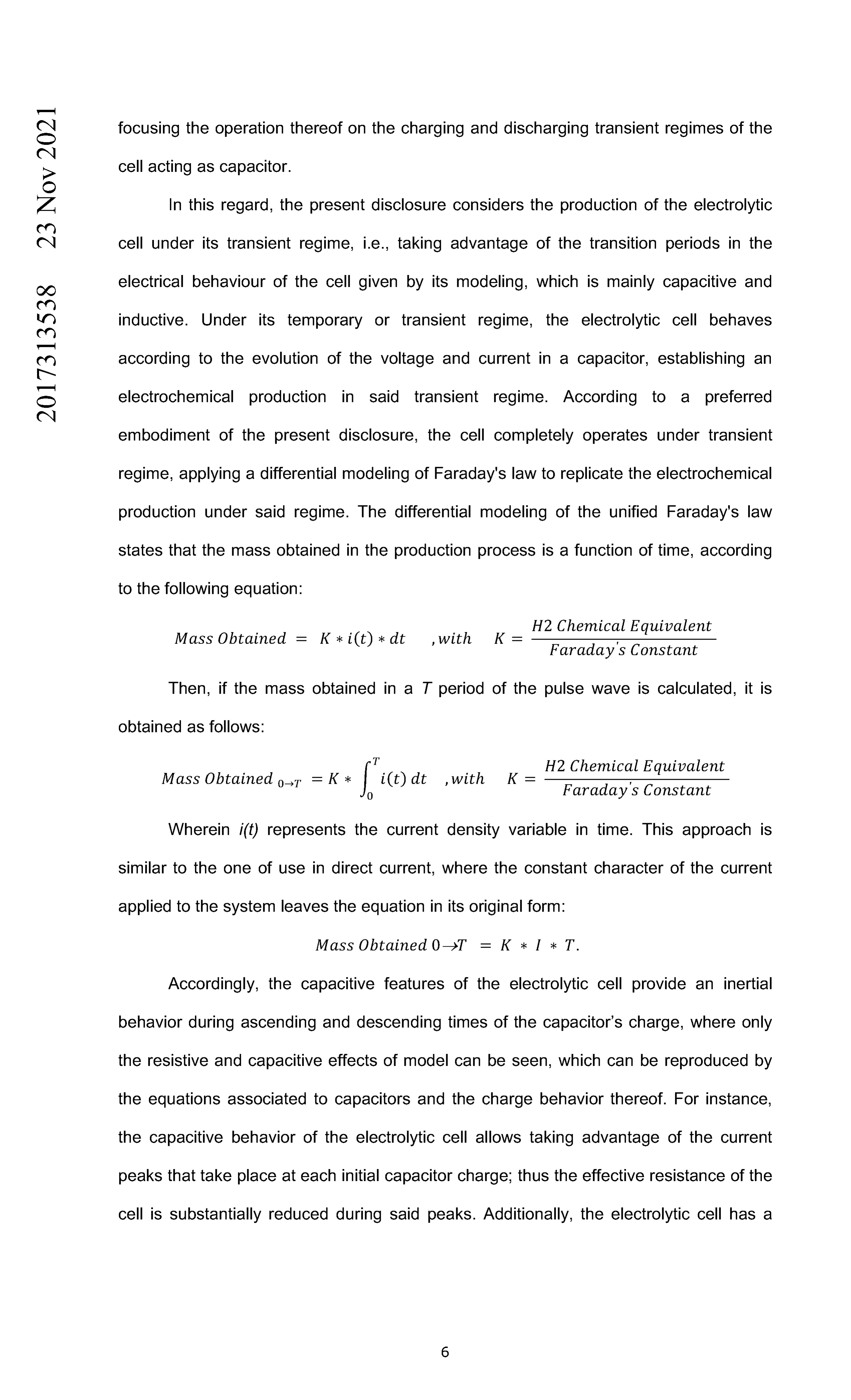

focusing the operation thereof on the charging and discharging transient regimes of the cell acting as capacitor.

In this regard, the present disclosure considers the production of the electrolytic cell under its transient regime, i.e., taking advantage of the transition periods in the electrical behaviour of the cell given by its modeling, which is mainly capacitive and inductive. Under its temporary or transient regime, the electrolytic cell behaves according to the evolution of the voltage and current in a capacitor, establishing an electrochemical production in said transient regime. According to a preferred embodiment of the present disclosure, the cell completely operates under transient regime, applying a differential modeling of Faraday's law to replicate the electrochemical production under said regime. The differential modeling of the unified Faraday's law states that the mass obtained in the production process is a function of time, according to the following equation:

H2 Chemical Equivalent

Then, if the mass obtained in a T period of the pulse wave is calculated, it is obtained as follows:

i(t) dt with K= H2 Chemical Equivalent

Mass ObtainedO-T = K *

Wherein i(t) represents the current density variable in time. This approach is similar to the one of use in direct current, where the constant character of the current applied to the system leaves the equation in its original form:

Mass Obtained 0--T = K * I * T.

Accordingly, the capacitive features of the electrolytic cell provide an inertial behavior during ascending and descending times of the capacitor's charge, where only the resistive and capacitive effects of model can be seen, which can be reproduced by the equations associated to capacitors and the charge behavior thereof. For instance, the capacitive behavior of the electrolytic cell allows taking advantage of the current peaks that take place at each initial capacitor charge; thus the effective resistance of the cell is substantially reduced during said peaks. Additionally, the electrolytic cell has a

Page 10

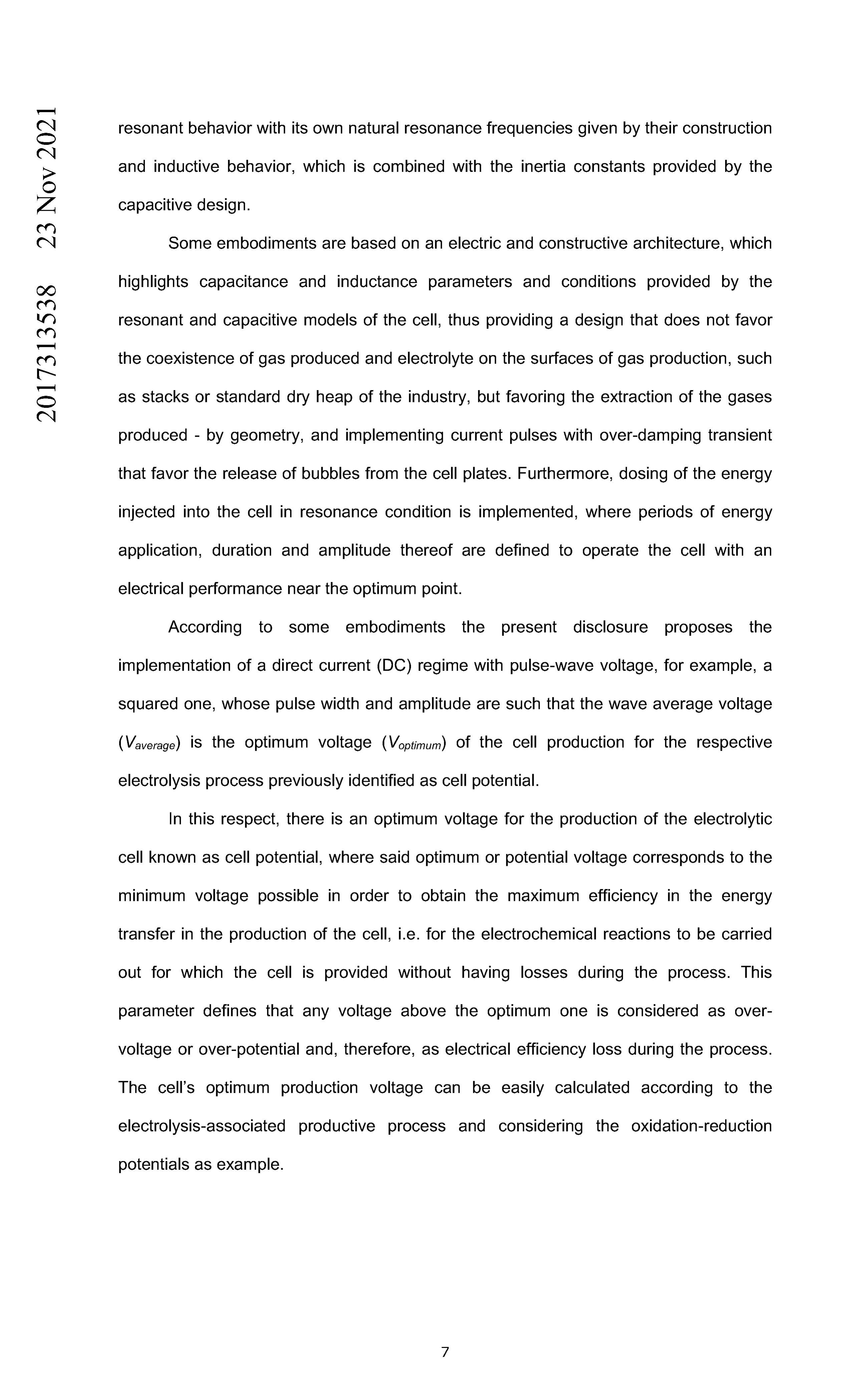

resonant behavior with its own natural resonance frequencies given by their construction and inductive behavior, which is combined with the inertia constants provided by the capacitive design.

Some embodiments are based on an electric and constructive architecture, which highlights capacitance and inductance parameters and conditions provided by the resonant and capacitive models of the cell, thus providing a design that does not favor the coexistence of gas produced and electrolyte on the surfaces of gas production, such as stacks or standard dry heap of the industry, but favoring the extraction of the gases produced - by geometry, and implementing current pulses with over-damping transient that favor the release of bubbles from the cell plates. Furthermore, dosing of the energy injected into the cell in resonance condition is implemented, where periods of energy application, duration and amplitude thereof are defined to operate the cell with an electrical performance near the optimum point.

According to some embodiments the present disclosure proposes the implementation of a direct current (DC) regime with pulse-wave voltage, for example, a squared one, whose pulse width and amplitude are such that the wave average voltage (Vaverage) is the optimum voltage (Vptimum) of the cell production for the respective electrolysis process previously identified as cell potential.

In this respect, there is an optimum voltage for the production of the electrolytic cell known as cell potential, where said optimum or potential voltage corresponds to the minimum voltage possible in order to obtain the maximum efficiency in the energy transfer in the production of the cell, i.e. for the electrochemical reactions to be carried out for which the cell is provided without having losses during the process. This parameter defines that any voltage above the optimum one is considered as over voltage or over-potential and, therefore, as electrical efficiency loss during the process. The cell's optimum production voltage can be easily calculated according to the electrolysis-associated productive process and considering the oxidation-reduction potentials as example.

Page 11

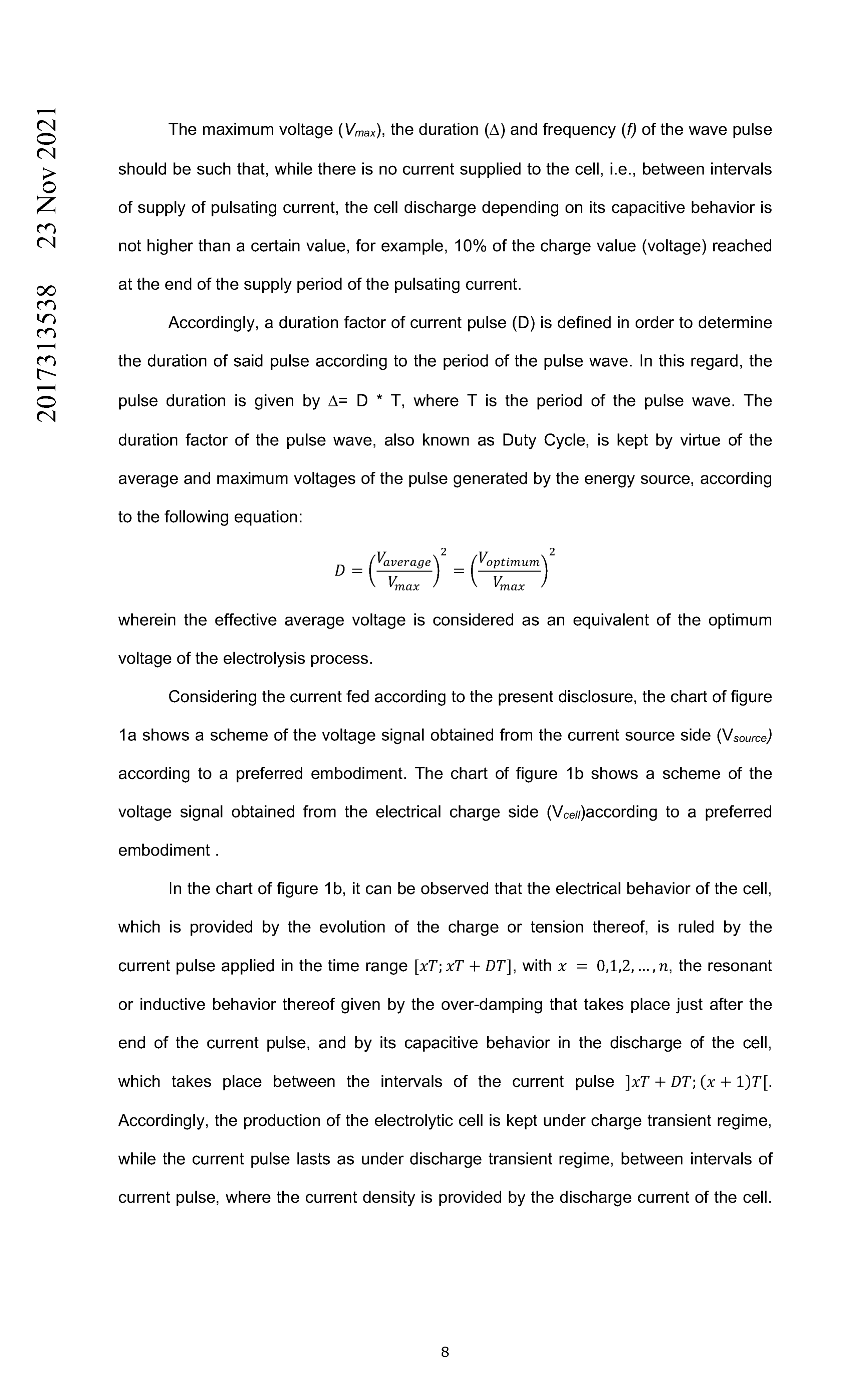

The maximum voltage (Vmax), the duration (A) and frequency (f) of the wave pulse should be such that, while there is no current supplied to the cell, i.e., between intervals of supply of pulsating current, the cell discharge depending on its capacitive behavior is not higher than a certain value, for example, 10% of the charge value (voltage) reached at the end of the supply period of the pulsating current.

Accordingly, a duration factor of current pulse (D) is defined in order to determine the duration of said pulse according to the period of the pulse wave. In this regard, the pulse duration is given by A= D * T, where T is the period of the pulse wave. The duration factor of the pulse wave, also known as Duty Cycle, is kept by virtue of the average and maximum voltages of the pulse generated by the energy source, according to the following equation:

wherein the effective average voltage is considered as an equivalent of the optimum voltage of the electrolysis process.

Considering the current fed according to the present disclosure, the chart of figure 1a shows a scheme of the voltage signal obtained from the current source side (Vsorce) according to a preferred embodiment. The chart of figure lb shows a scheme of the voltage signal obtained from the electrical charge side (Vceii)according to a preferred embodiment.

In the chart of figure 1b, it can be observed that the electrical behavior of the cell, which is provided by the evolution of the charge or tension thereof, is ruled by the current pulse applied in the time range [xT; xT + DT], with x = 0,1,2,..., n, the resonant or inductive behavior thereof given by the over-damping that takes place just after the end of the current pulse, and by its capacitive behavior in the discharge of the cell, which takes place between the intervals of the current pulse ]xT + DT; (x + 1)T[. Accordingly, the production of the electrolytic cell is kept under charge transient regime, while the current pulse lasts as under discharge transient regime, between intervals of current pulse, where the current density is provided by the discharge current of the cell.

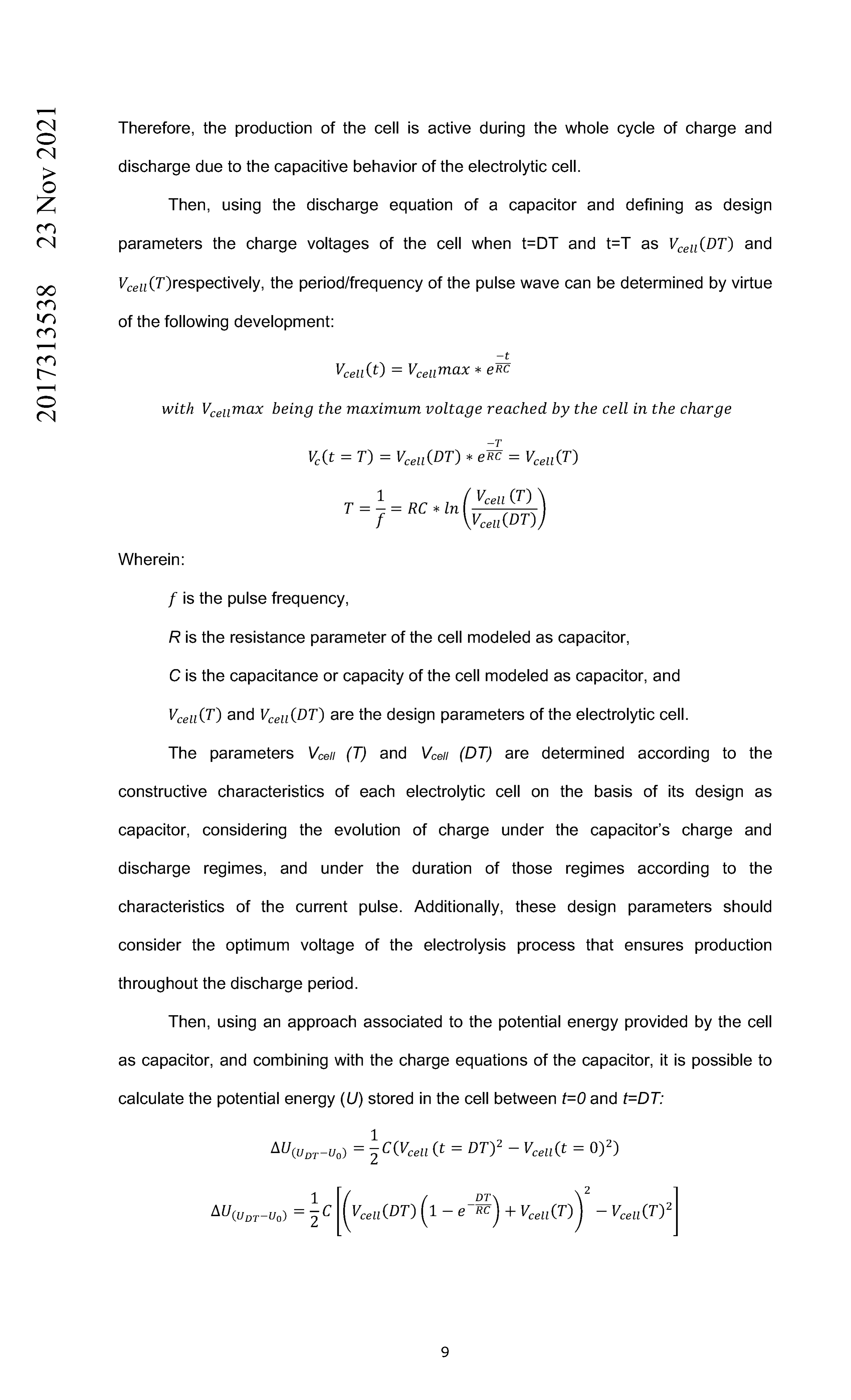

Page 12

Therefore, the production of the cell is active during the whole cycle of charge and discharge due to the capacitive behavior of the electrolytic cell. Then, using the discharge equation of a capacitor and defining as design parameters the charge voltages of the cell when t=DT and t=T as Vi(DT) and Ve,(T)respectively, the period/frequency of the pulse wave can be determined by virtue of the following development:

Vceui(t) = Vceimax * eRC with Vceuimax being the maximum voltage reached by the cell in the charge

Wherein:

f is the pulse frequency,

R is the resistance parameter of the cell modeled as capacitor,

C is the capacitance or capacity of the cell modeled as capacitor, and Vcei(T) and Vei(DT) are the design parameters of the electrolytic cell. The parameters Vcei (T) and Vcei (DT) are determined according to the constructive characteristics of each electrolytic cell on the basis of its design as capacitor, considering the evolution of charge under the capacitor's charge and discharge regimes, and under the duration of those regimes according to the characteristics of the current pulse. Additionally, these design parameters should consider the optimum voltage of the electrolysis process that ensures production throughout the discharge period.

Then, using an approach associated to the potential energy provided by the cell as capacitor, and combining with the charge equations of the capacitor, it is possible to calculate the potential energy (U) stored in the cell between t=O and t=DT:

AU(UDT-UO) =C[(Vcei(DT) (1-e IC Vce(T) - Vcei(T)2]

Page 13

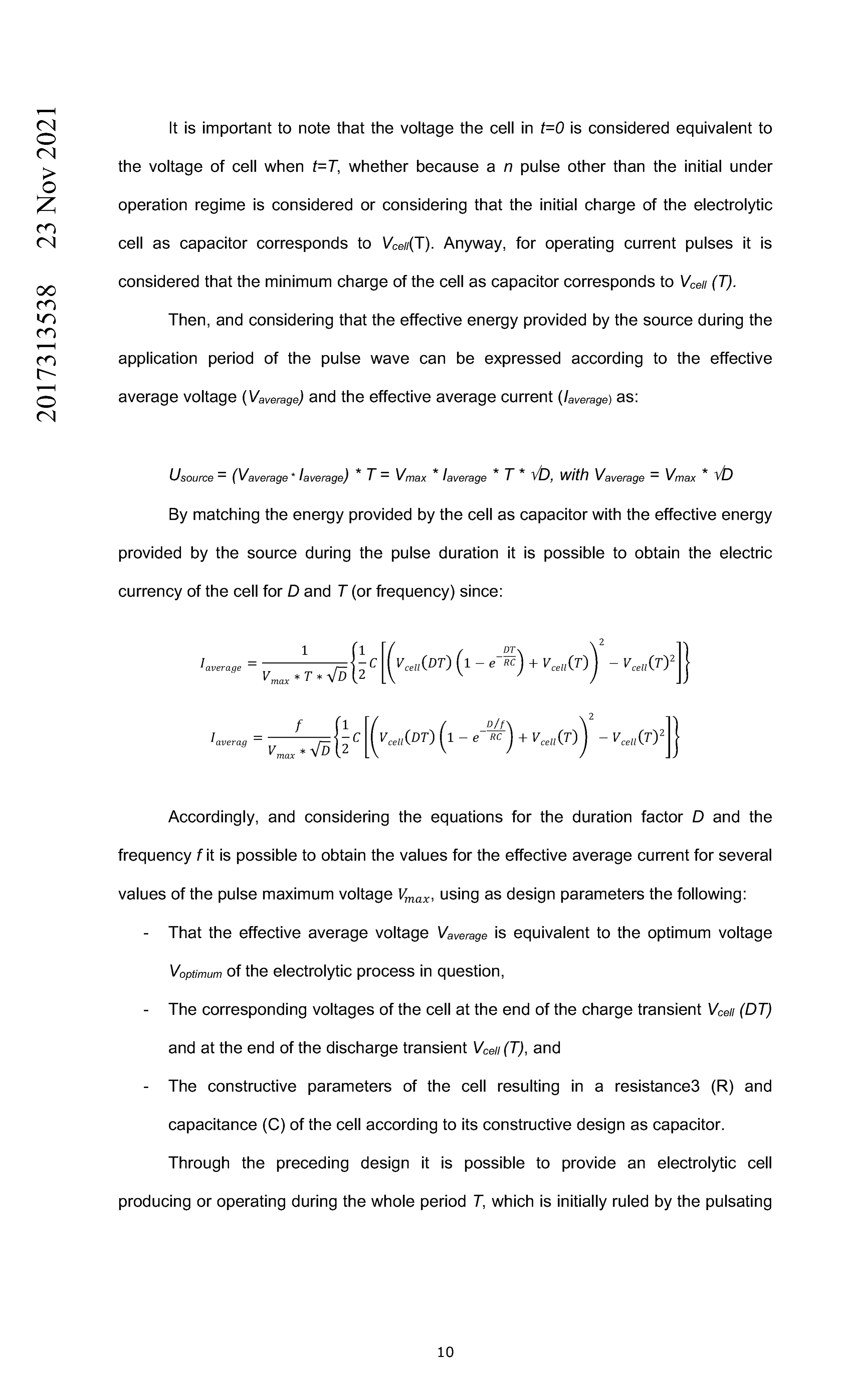

It is important to note that the voltage the cell in t= is considered equivalent to the voltage of cell when t=T, whether because a n pulse other than the initial under operation regime is considered or considering that the initial charge of the electrolytic cell as capacitor corresponds to Vcei(T). Anyway, for operating current pulses it is considered that the minimum charge of the cell as capacitor corresponds to Vcell (T). Then, and considering that the effective energy provided by the source during the application period of the pulse wave can be expressed according to the effective average voltage (Vaverage) and the effective average current (laverage) as: Usource = (Vaverage* laverage) * T = Vmax * average * T * VD, with Vaverage = Vmax * vb By matching the energy provided by the cell as capacitor with the effective energy provided by the source during the pulse duration it is possible to obtain the electric currency of the cell for D and T (or frequency) since:

,average =C

Iaverag = Va -C VelI(DT) 1 - e RC + Vcell(T) 2

Vmax * VDf2KII

Accordingly, and considering the equations for the duration factor D and the frequency f it is possible to obtain the values for the effective average current for several values of the pulse maximum voltage Vmax, using as design parameters the following: - That the effective average voltage Vaverage is equivalent to the optimum voltage Voptimum of the electrolytic process in question, - The corresponding voltages of the cell at the end of the charge transient Vcel (DT) and at the end of the discharge transient Vceu (T), and - The constructive parameters of the cell resulting in a resistance3 (R) and capacitance (C) of the cell according to its constructive design as capacitor. Through the preceding design it is possible to provide an electrolytic cell producing or operating during the whole period T, which is initially ruled by the pulsating

Page 14

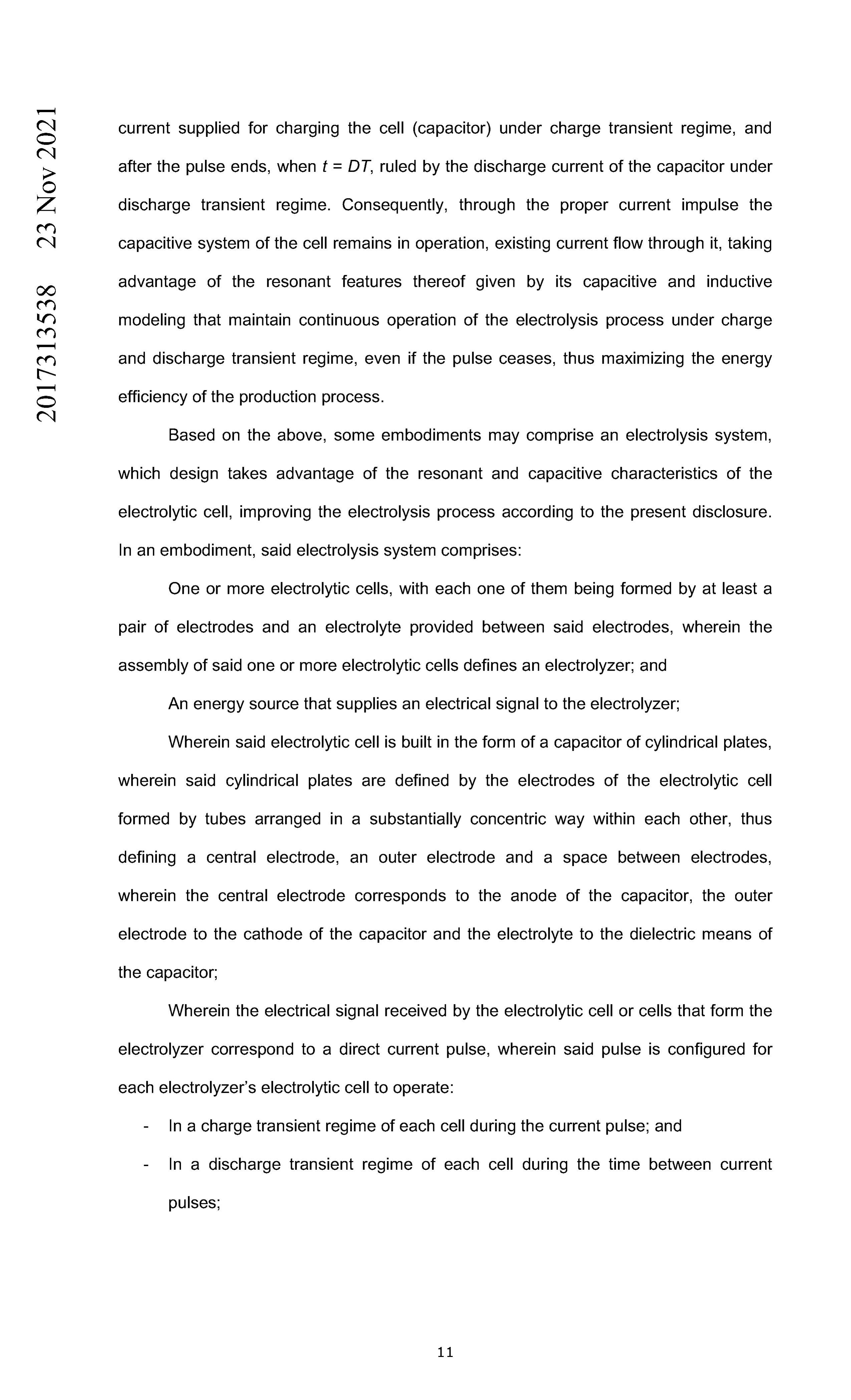

current supplied for charging the cell (capacitor) under charge transient regime, and after the pulse ends, when t = DT, ruled by the discharge current of the capacitor under discharge transient regime. Consequently, through the proper current impulse the capacitive system of the cell remains in operation, existing current flow through it, taking advantage of the resonant features thereof given by its capacitive and inductive modeling that maintain continuous operation of the electrolysis process under charge and discharge transient regime, even if the pulse ceases, thus maximizing the energy efficiency of the production process.

Based on the above, some embodiments may comprise an electrolysis system, which design takes advantage of the resonant and capacitive characteristics of the electrolytic cell, improving the electrolysis process according to the present disclosure. In an embodiment, said electrolysis system comprises:

One or more electrolytic cells, with each one of them being formed by at least a pair of electrodes and an electrolyte provided between said electrodes, wherein the assembly of said one or more electrolytic cells defines an electrolyzer; and An energy source that supplies an electrical signal to the electrolyzer; Wherein said electrolytic cell is built in the form of a capacitor of cylindrical plates, wherein said cylindrical plates are defined by the electrodes of the electrolytic cell formed by tubes arranged in a substantially concentric way within each other, thus defining a central electrode, an outer electrode and a space between electrodes, wherein the central electrode corresponds to the anode of the capacitor, the outer electrode to the cathode of the capacitor and the electrolyte to the dielectric means of the capacitor;

Wherein the electrical signal received by the electrolytic cell or cells that form the electrolyzer correspond to a direct current pulse, wherein said pulse is configured for each electrolyzer's electrolytic cell to operate:

- In a charge transient regime of each cell during the current pulse; and - In a discharge transient regime of each cell during the time between current pulses;

Page 15

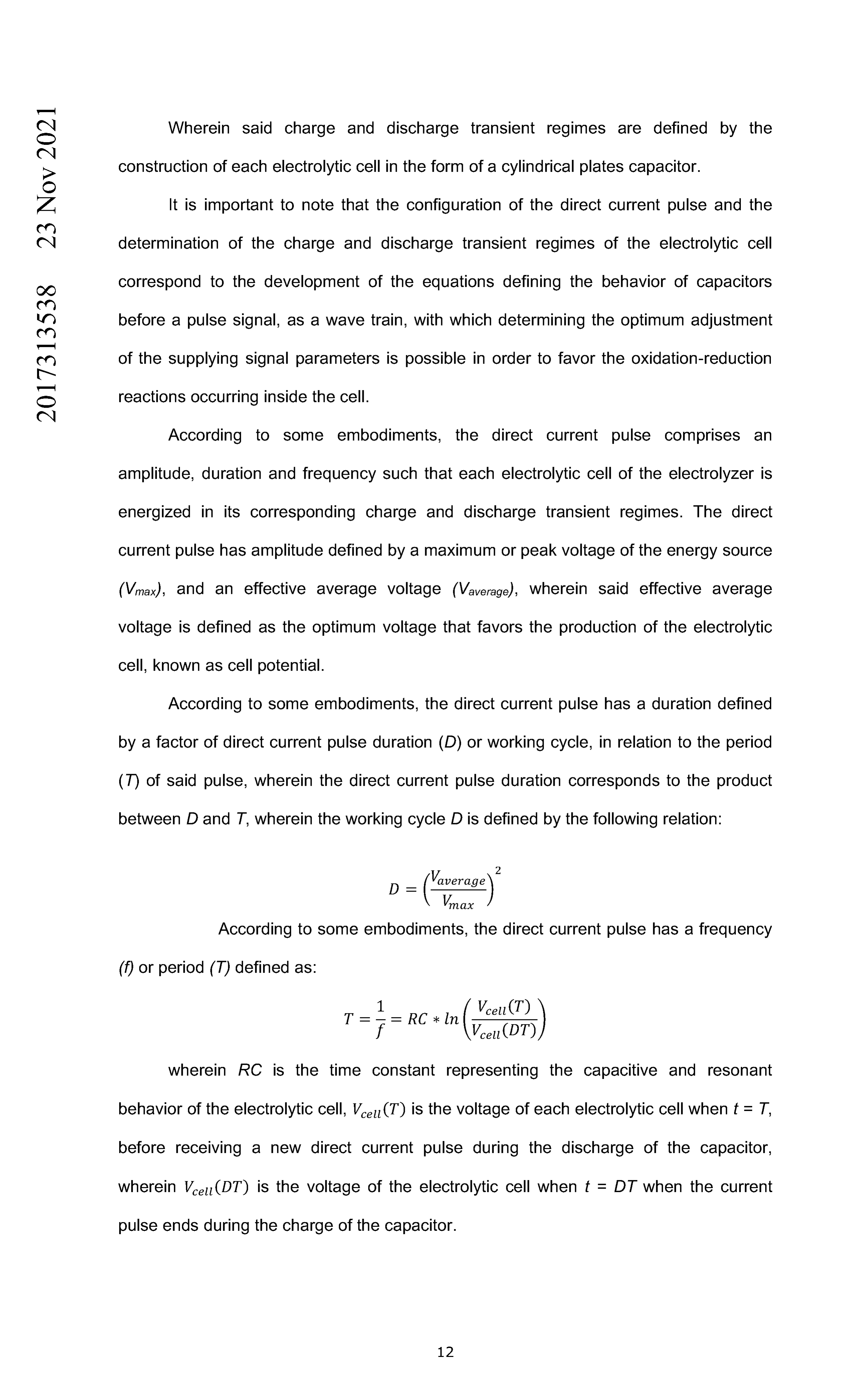

Wherein said charge and discharge transient regimes are defined by the construction of each electrolytic cell in the form of a cylindrical plates capacitor. It is important to note that the configuration of the direct current pulse and the determination of the charge and discharge transient regimes of the electrolytic cell correspond to the development of the equations defining the behavior of capacitors before a pulse signal, as a wave train, with which determining the optimum adjustment of the supplying signal parameters is possible in order to favor the oxidation-reduction reactions occurring inside the cell.

According to some embodiments, the direct current pulse comprises an amplitude, duration and frequency such that each electrolytic cell of the electrolyzer is energized in its corresponding charge and discharge transient regimes. The direct current pulse has amplitude defined by a maximum or peak voltage of the energy source (Vmax), and an effective average voltage (Vaverage), wherein said effective average voltage is defined as the optimum voltage that favors the production of the electrolytic cell, known as cell potential.

According to some embodiments, the direct current pulse has a duration defined by a factor of direct current pulse duration (D) or working cycle, in relation to the period (T) of said pulse, wherein the direct current pulse duration corresponds to the product between D and T, wherein the working cycle D is defined by the following relation:

D averagee max

According to some embodiments, the direct current pulse has a frequency (f) or period (T) defined as:

wherein RC is the time constant representing the capacitive and resonant behavior of the electrolytic cell, Vei(T) is the voltage of each electrolytic cell when t = T, before receiving a new direct current pulse during the discharge of the capacitor, wherein Vei(DT) is the voltage of the electrolytic cell when t = DT when the current pulse ends during the charge of the capacitor.

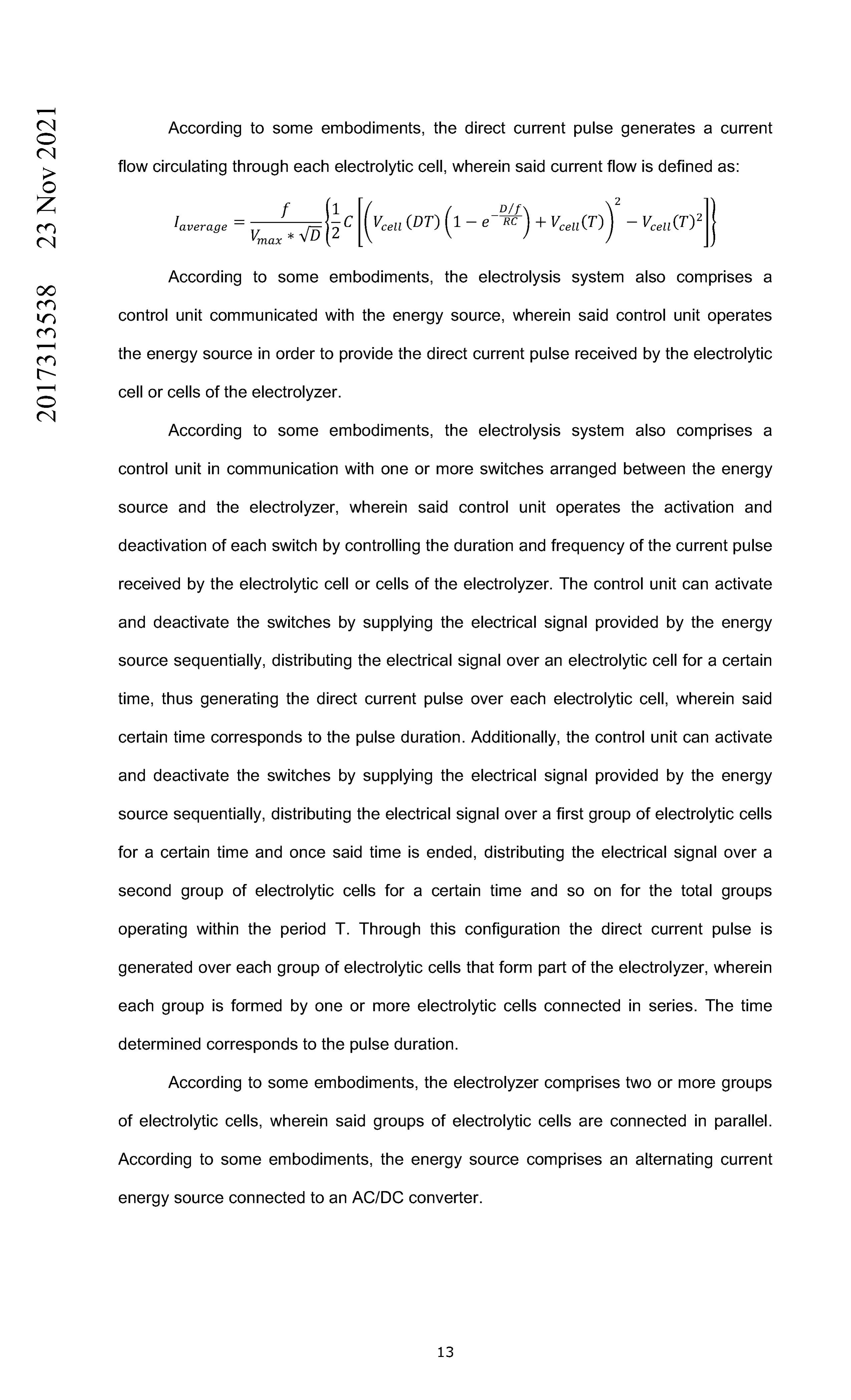

Page 16

According to some embodiments, the direct current pulse generates a current flow circulating through each electrolytic cell, wherein said current flow is defined as:

'average = C* Vceii (DT) (1 - e Df) + Vcell (T)- ceii(T

According to some embodiments, the electrolysis system also comprises a control unit communicated with the energy source, wherein said control unit operates the energy source in order to provide the direct current pulse received by the electrolytic cell or cells of the electrolyzer.

According to some embodiments, the electrolysis system also comprises a control unit in communication with one or more switches arranged between the energy source and the electrolyzer, wherein said control unit operates the activation and deactivation of each switch by controlling the duration and frequency of the current pulse received by the electrolytic cell or cells of the electrolyzer. The control unit can activate and deactivate the switches by supplying the electrical signal provided by the energy source sequentially, distributing the electrical signal over an electrolytic cell for a certain time, thus generating the direct current pulse over each electrolytic cell, wherein said certain time corresponds to the pulse duration. Additionally, the control unit can activate and deactivate the switches by supplying the electrical signal provided by the energy source sequentially, distributing the electrical signal over a first group of electrolytic cells for a certain time and once said time is ended, distributing the electrical signal over a second group of electrolytic cells for a certain time and so on for the total groups operating within the period T. Through this configuration the direct current pulse is generated over each group of electrolytic cells that form part of the electrolyzer, wherein each group is formed by one or more electrolytic cells connected in series. The time determined corresponds to the pulse duration.

According to some embodiments, the electrolyzer comprises two or more groups of electrolytic cells, wherein said groups of electrolytic cells are connected in parallel. According to some embodiments, the energy source comprises an alternating current energy source connected to an AC/DC converter.

Page 17

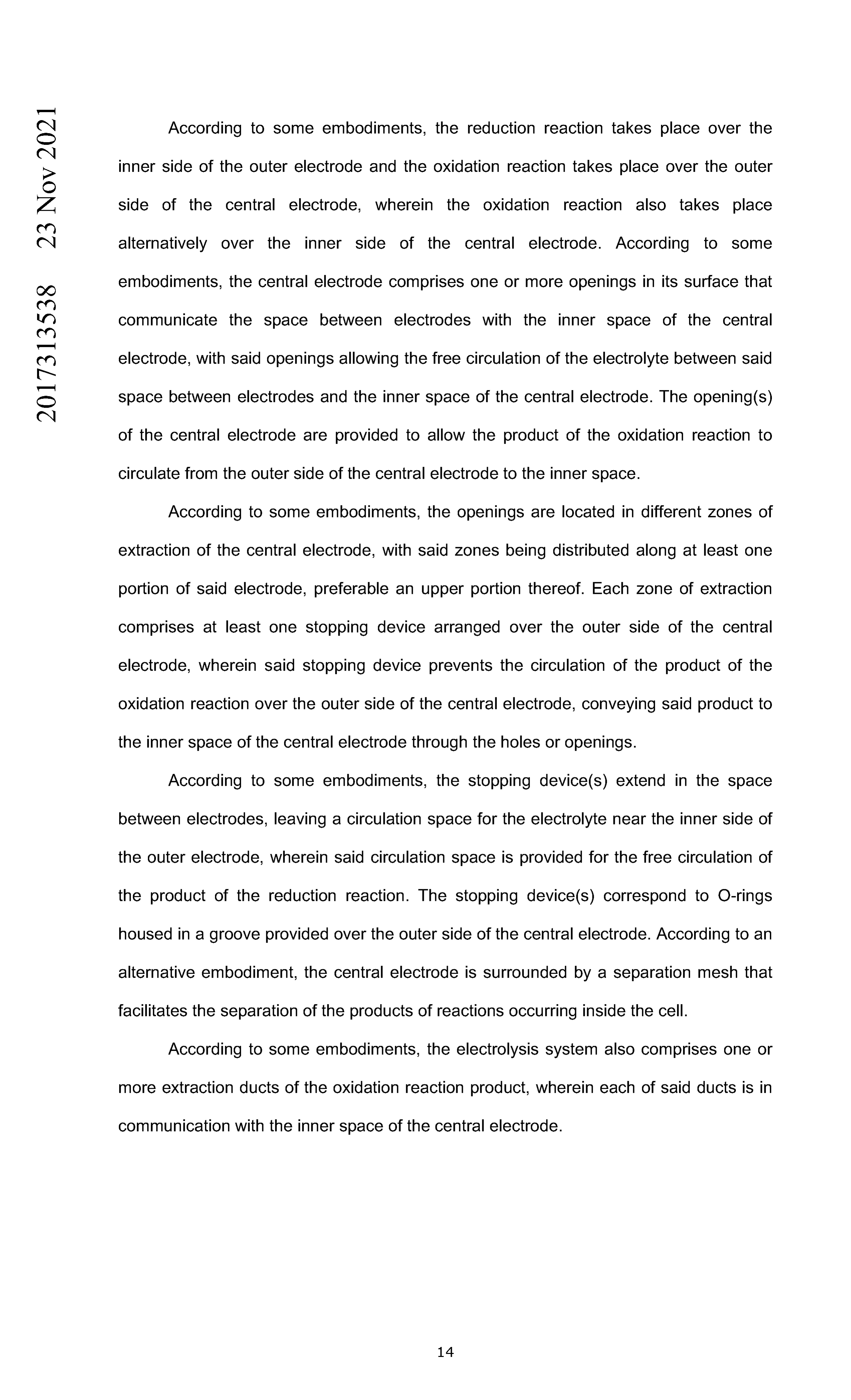

According to some embodiments, the reduction reaction takes place over the inner side of the outer electrode and the oxidation reaction takes place over the outer side of the central electrode, wherein the oxidation reaction also takes place alternatively over the inner side of the central electrode. According to some embodiments, the central electrode comprises one or more openings in its surface that communicate the space between electrodes with the inner space of the central electrode, with said openings allowing the free circulation of the electrolyte between said space between electrodes and the inner space of the central electrode. The opening(s) of the central electrode are provided to allow the product of the oxidation reaction to circulate from the outer side of the central electrode to the inner space. According to some embodiments, the openings are located in different zones of extraction of the central electrode, with said zones being distributed along at least one portion of said electrode, preferable an upper portion thereof. Each zone of extraction comprises at least one stopping device arranged over the outer side of the central electrode, wherein said stopping device prevents the circulation of the product of the oxidation reaction over the outer side of the central electrode, conveying said product to the inner space of the central electrode through the holes or openings. According to some embodiments, the stopping device(s) extend in the space between electrodes, leaving a circulation space for the electrolyte near the inner side of the outer electrode, wherein said circulation space is provided for the free circulation of the product of the reduction reaction. The stopping device(s) correspond to O-rings housed in a groove provided over the outer side of the central electrode. According to an alternative embodiment, the central electrode is surrounded by a separation mesh that facilitates the separation of the products of reactions occurring inside the cell. According to some embodiments, the electrolysis system also comprises one or more extraction ducts of the oxidation reaction product, wherein each of said ducts is in communication with the inner space of the central electrode.

Page 18

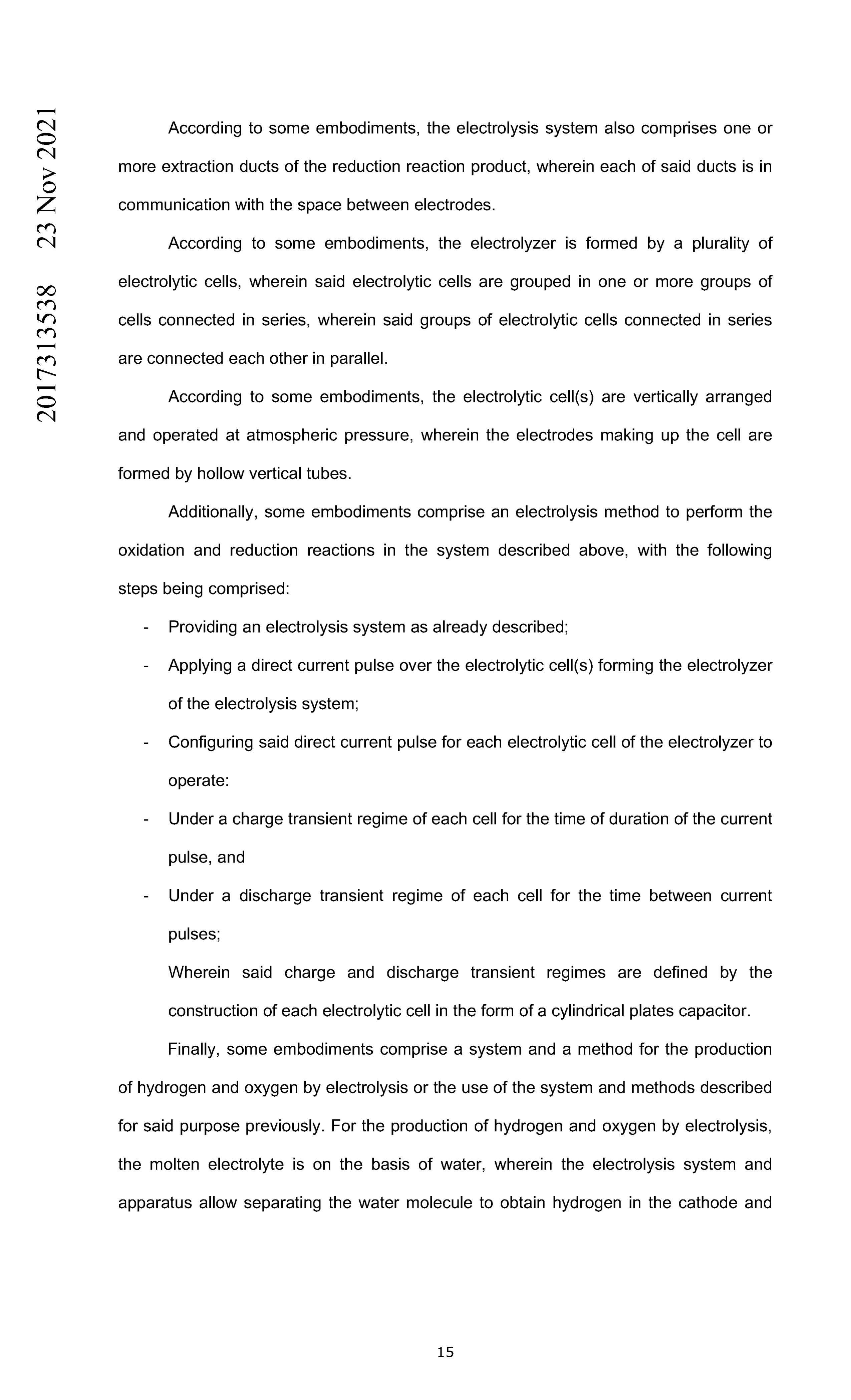

According to some embodiments, the electrolysis system also comprises one or more extraction ducts of the reduction reaction product, wherein each of said ducts is in communication with the space between electrodes.

According to some embodiments, the electrolyzer is formed by a plurality of electrolytic cells, wherein said electrolytic cells are grouped in one or more groups of cells connected in series, wherein said groups of electrolytic cells connected in series are connected each other in parallel.

According to some embodiments, the electrolytic cell(s) are vertically arranged and operated at atmospheric pressure, wherein the electrodes making up the cell are formed by hollow vertical tubes.

Additionally, some embodiments comprise an electrolysis method to perform the oxidation and reduction reactions in the system described above, with the following steps being comprised:

- Providing an electrolysis system as already described;

- Applying a direct current pulse over the electrolytic cell(s) forming the electrolyzer of the electrolysis system;

- Configuring said direct current pulse for each electrolytic cell of the electrolyzer to operate:

- Under a charge transient regime of each cell for the time of duration of the current pulse, and - Under a discharge transient regime of each cell for the time between current pulses;

Wherein said charge and discharge transient regimes are defined by the construction of each electrolytic cell in the form of a cylindrical plates capacitor. Finally, some embodiments comprise a system and a method for the production of hydrogen and oxygen by electrolysis or the use of the system and methods described for said purpose previously. For the production of hydrogen and oxygen by electrolysis, the molten electrolyte is on the basis of water, wherein the electrolysis system and apparatus allow separating the water molecule to obtain hydrogen in the cathode and

Page 19

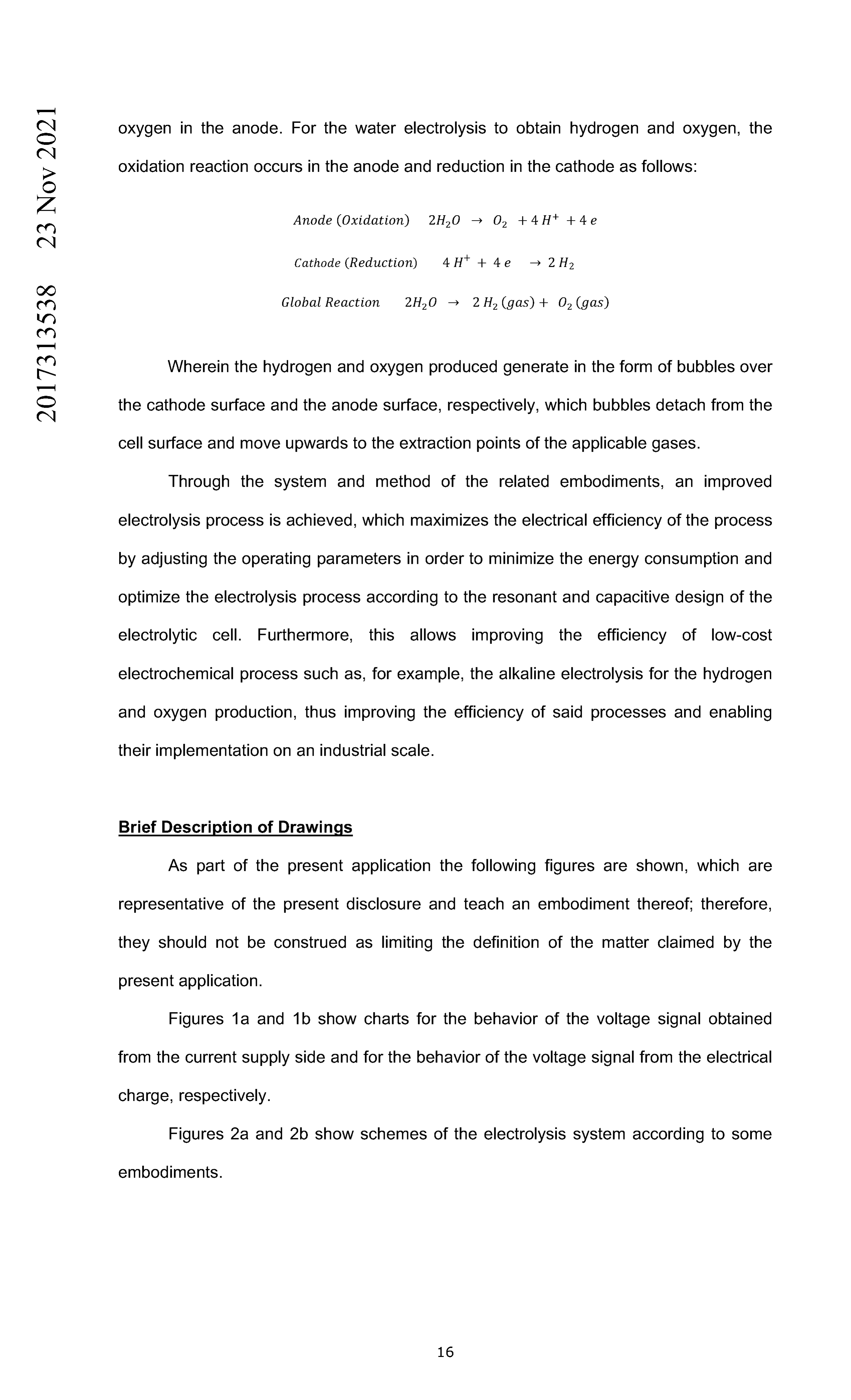

oxygen in the anode. For the water electrolysis to obtain hydrogen and oxygen, the oxidation reaction occurs in the anode and reduction in the cathode as follows:

Wherein the hydrogen and oxygen produced generate in the form of bubbles over the cathode surface and the anode surface, respectively, which bubbles detach from the cell surface and move upwards to the extraction points of the applicable gases. Through the system and method of the related embodiments, an improved electrolysis process is achieved, which maximizes the electrical efficiency of the process by adjusting the operating parameters in order to minimize the energy consumption and optimize the electrolysis process according to the resonant and capacitive design of the electrolytic cell. Furthermore, this allows improving the efficiency of low-cost electrochemical process such as, for example, the alkaline electrolysis for the hydrogen and oxygen production, thus improving the efficiency of said processes and enabling their implementation on an industrial scale.

Brief Description of Drawings

As part of the present application the following figures are shown, which are representative of the present disclosure and teach an embodiment thereof; therefore, they should not be construed as limiting the definition of the matter claimed by the present application.

Figures 1a and lb show charts for the behavior of the voltage signal obtained from the current supply side and for the behavior of the voltage signal from the electrical charge, respectively.

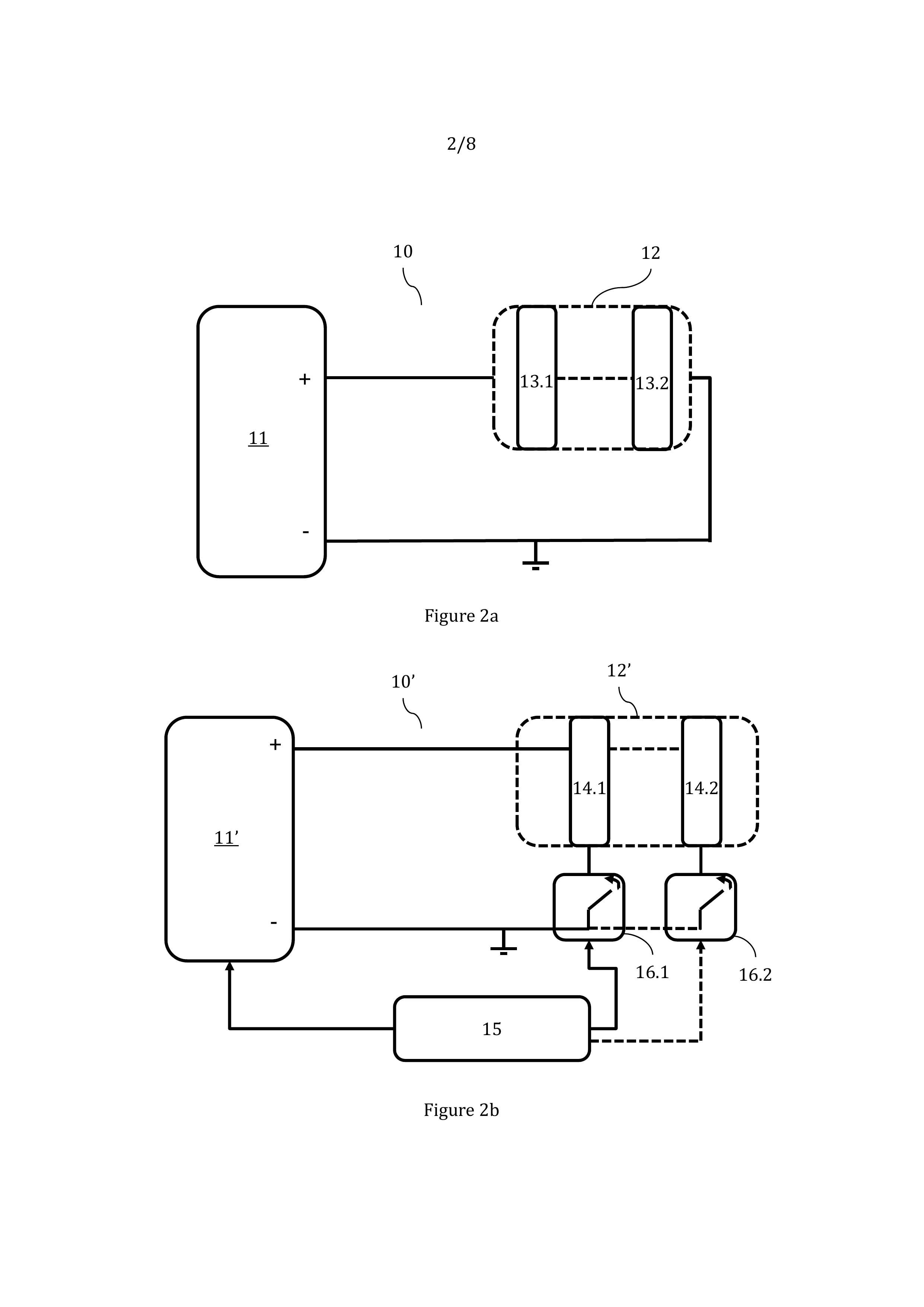

Figures 2a and 2b show schemes of the electrolysis system according to some embodiments.

Page 20

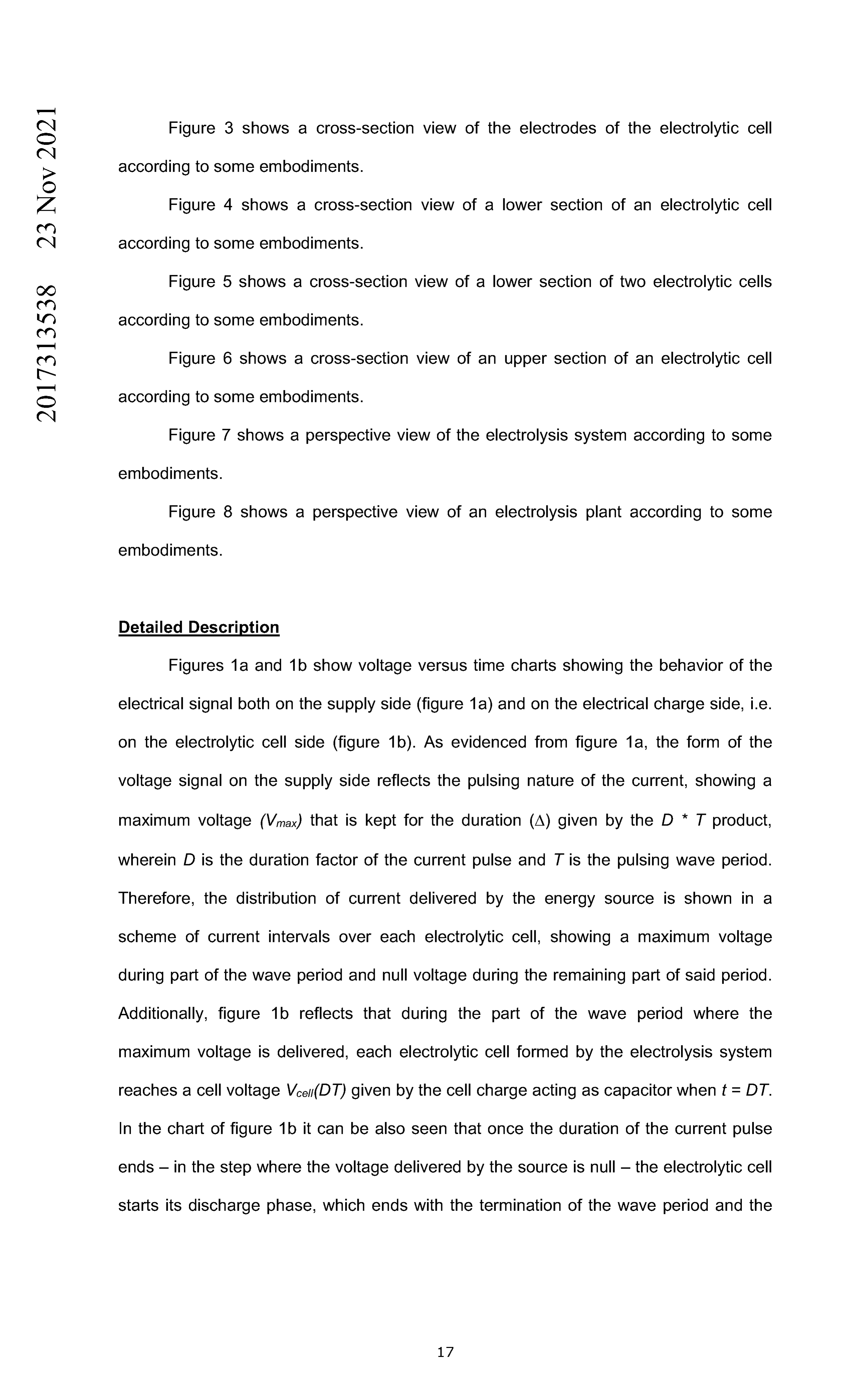

Figure 3 shows a cross-section view of the electrodes of the electrolytic cell according to some embodiments.

Figure 4 shows a cross-section view of a lower section of an electrolytic cell according to some embodiments.

Figure 5 shows a cross-section view of a lower section of two electrolytic cells according to some embodiments.

Figure 6 shows a cross-section view of an upper section of an electrolytic cell according to some embodiments.

Figure 7 shows a perspective view of the electrolysis system according to some embodiments.

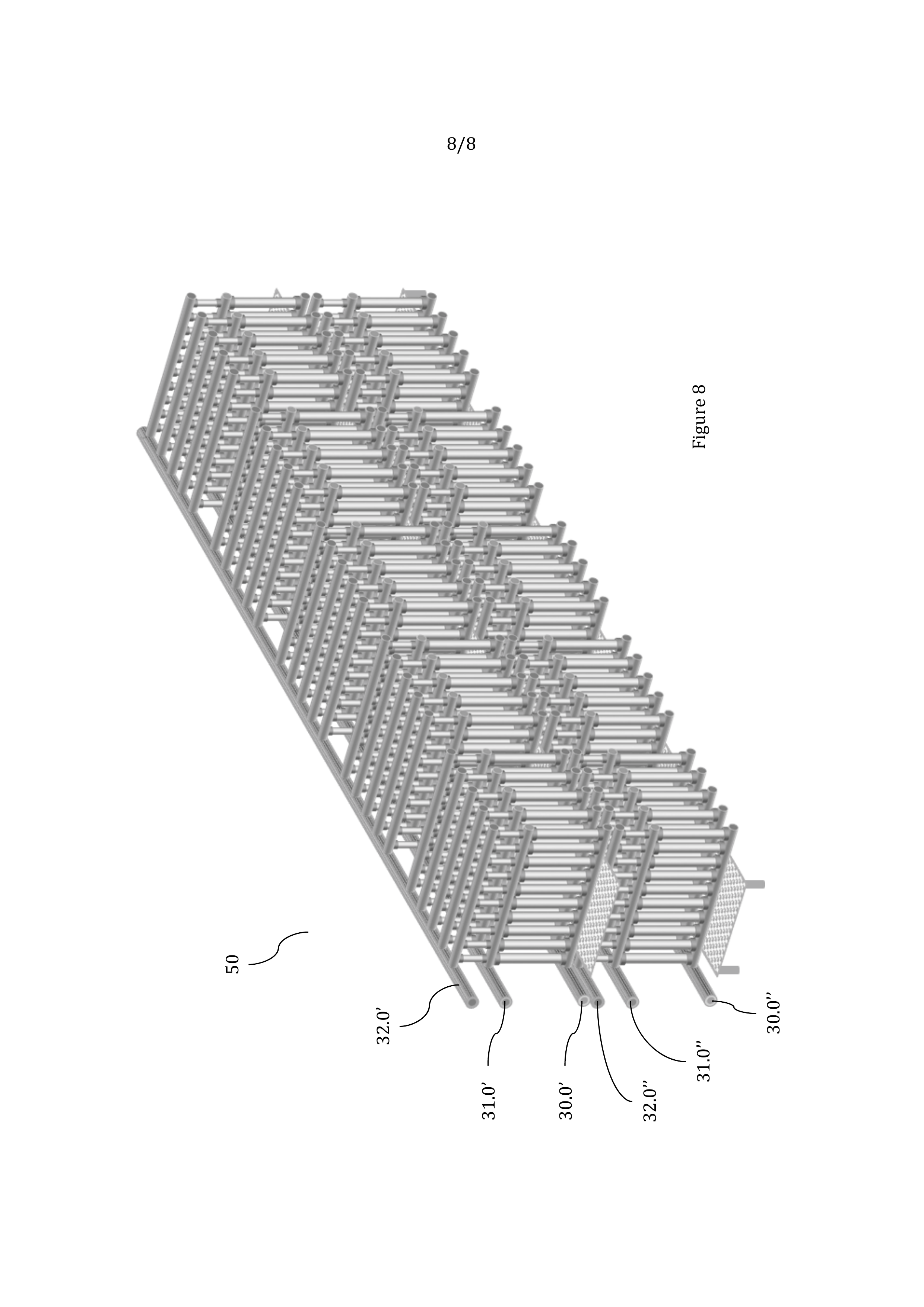

Figure 8 shows a perspective view of an electrolysis plant according to some embodiments.

Detailed Description

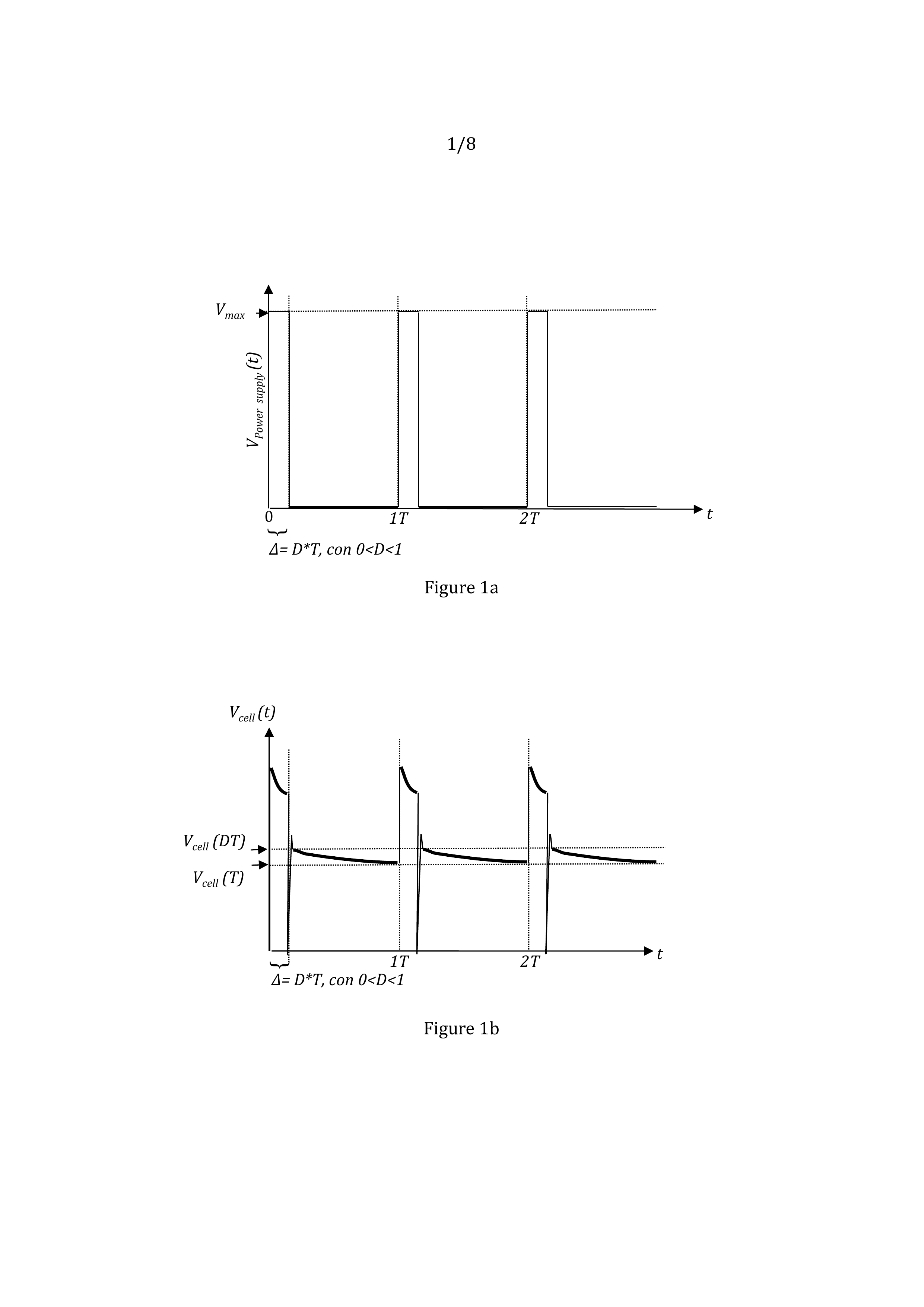

Figures la and lb show voltage versus time charts showing the behavior of the electrical signal both on the supply side (figure 1a) and on the electrical charge side, i.e. on the electrolytic cell side (figure 1b). As evidenced from figure la, the form of the voltage signal on the supply side reflects the pulsing nature of the current, showing a maximum voltage (Vmax) that is kept for the duration (A) given by the D * T product, wherein D is the duration factor of the current pulse and T is the pulsing wave period. Therefore, the distribution of current delivered by the energy source is shown in a scheme of current intervals over each electrolytic cell, showing a maximum voltage during part of the wave period and null voltage during the remaining part of said period. Additionally, figure lb reflects that during the part of the wave period where the maximum voltage is delivered, each electrolytic cell formed by the electrolysis system reaches a cell voltage Vcen(DT) given by the cell charge acting as capacitor when t = DT. In the chart of figure lb it can be also seen that once the duration of the current pulse ends - in the step where the voltage delivered by the source is null - the electrolytic cell starts its discharge phase, which ends with the termination of the wave period and the

Page 21

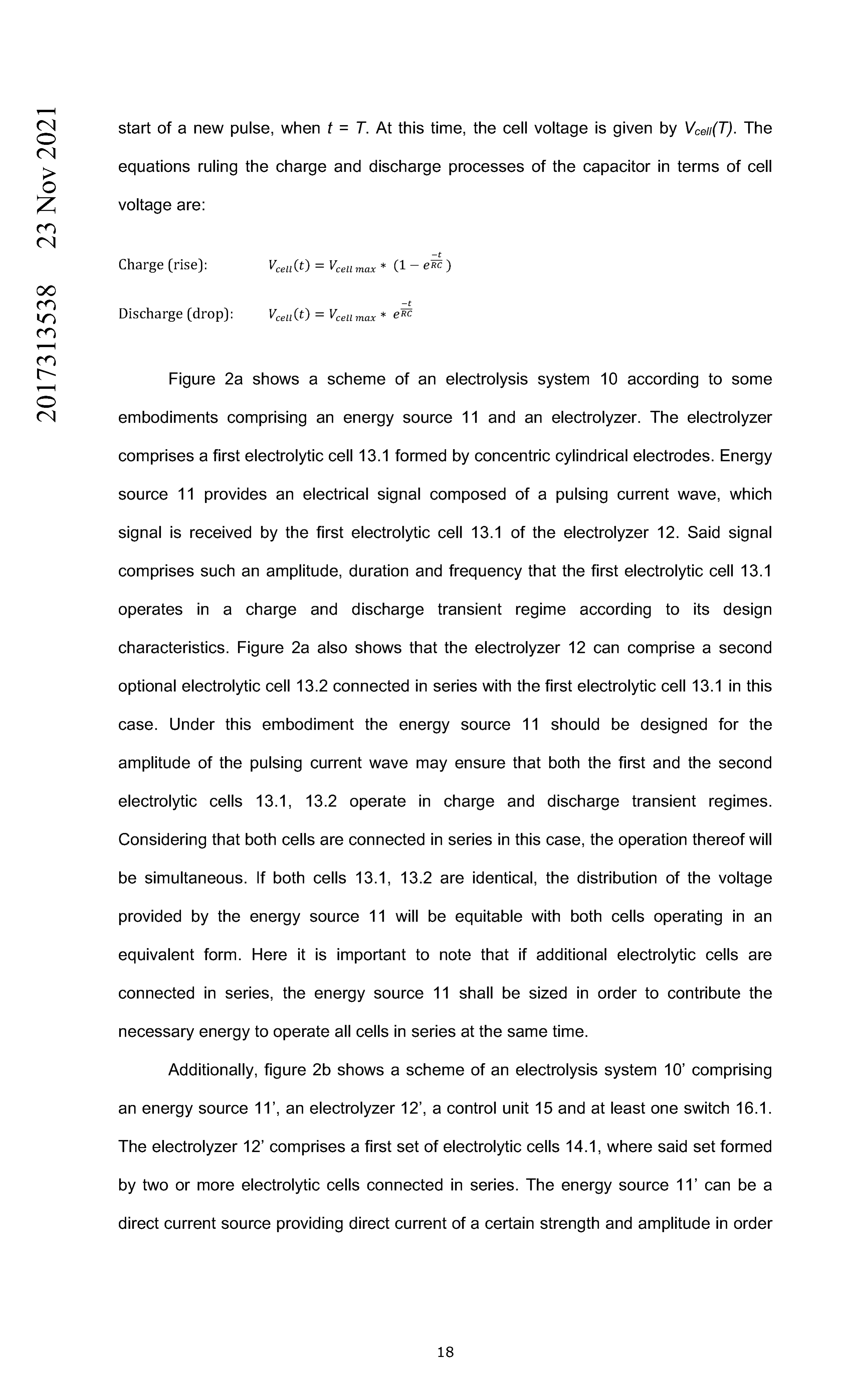

start of a new pulse, when t = T. At this time, the cell voltage is given by Vc(T). The equations ruling the charge and discharge processes of the capacitor in terms of cell voltage are:

Discharge (drop): Vce(t) = Vceul max * eRC

Figure 2a shows a scheme of an electrolysis system 10 according to some embodiments comprising an energy source 11 and an electrolyzer. The electrolyzer comprises a first electrolytic cell 13.1 formed by concentric cylindrical electrodes. Energy source 11 provides an electrical signal composed of a pulsing current wave, which signal is received by the first electrolytic cell 13.1 of the electrolyzer 12. Said signal comprises such an amplitude, duration and frequency that the first electrolytic cell 13.1 operates in a charge and discharge transient regime according to its design characteristics. Figure 2a also shows that the electrolyzer 12 can comprise a second optional electrolytic cell 13.2 connected in series with the first electrolytic cell 13.1 in this case. Under this embodiment the energy source 11 should be designed for the amplitude of the pulsing current wave may ensure that both the first and the second electrolytic cells 13.1, 13.2 operate in charge and discharge transient regimes. Considering that both cells are connected in series in this case, the operation thereof will be simultaneous. If both cells 13.1, 13.2 are identical, the distribution of the voltage provided by the energy source 11 will be equitable with both cells operating in an equivalent form. Here it is important to note that if additional electrolytic cells are connected in series, the energy source 11 shall be sized in order to contribute the necessary energy to operate all cells in series at the same time.

Additionally, figure 2b shows a scheme of an electrolysis system 10' comprising an energy source 11', an electrolyzer 12', a control unit 15 and at least one switch 16.1. The electrolyzer 12' comprises a first set of electrolytic cells 14.1, where said set formed by two or more electrolytic cells connected in series. The energy source 11' can be a direct current source providing direct current of a certain strength and amplitude in order

Page 22

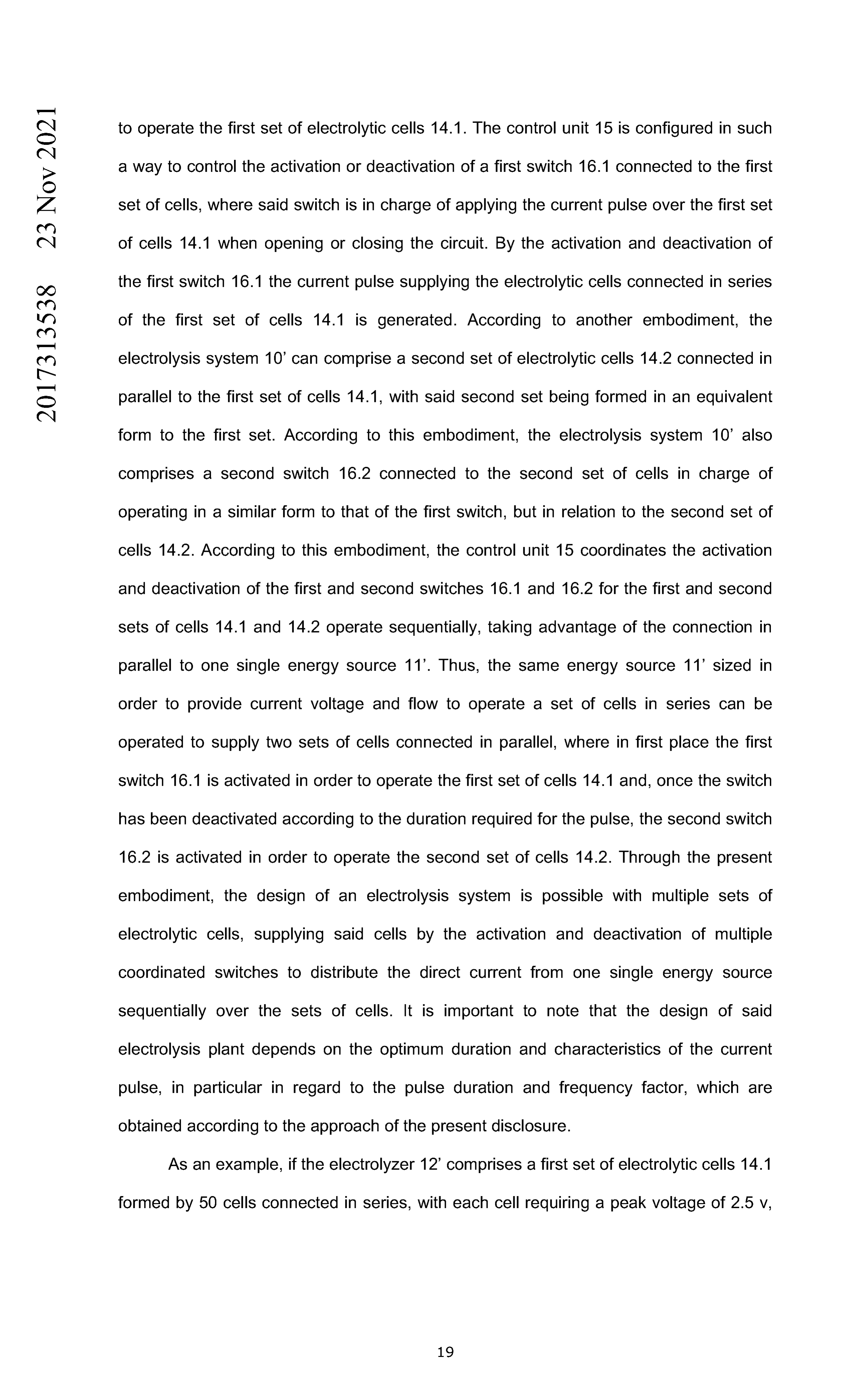

to operate the first set of electrolytic cells 14.1. The control unit 15 is configured in such a way to control the activation or deactivation of a first switch 16.1 connected to the first set of cells, where said switch is in charge of applying the current pulse over the first set of cells 14.1 when opening or closing the circuit. By the activation and deactivation of the first switch 16.1 the current pulse supplying the electrolytic cells connected in series of the first set of cells 14.1 is generated. According to another embodiment, the electrolysis system 10' can comprise a second set of electrolytic cells 14.2 connected in parallel to the first set of cells 14.1, with said second set being formed in an equivalent form to the first set. According to this embodiment, the electrolysis system 10' also comprises a second switch 16.2 connected to the second set of cells in charge of operating in a similar form to that of the first switch, but in relation to the second set of cells 14.2. According to this embodiment, the control unit 15 coordinates the activation and deactivation of the first and second switches 16.1 and 16.2 for the first and second sets of cells 14.1 and 14.2 operate sequentially, taking advantage of the connection in parallel to one single energy source 11'. Thus, the same energy source 11' sized in order to provide current voltage and flow to operate a set of cells in series can be operated to supply two sets of cells connected in parallel, where in first place the first switch 16.1 is activated in order to operate the first set of cells 14.1 and, once the switch has been deactivated according to the duration required for the pulse, the second switch 16.2 is activated in order to operate the second set of cells 14.2. Through the present embodiment, the design of an electrolysis system is possible with multiple sets of electrolytic cells, supplying said cells by the activation and deactivation of multiple coordinated switches to distribute the direct current from one single energy source sequentially over the sets of cells. It is important to note that the design of said electrolysis plant depends on the optimum duration and characteristics of the current pulse, in particular in regard to the pulse duration and frequency factor, which are obtained according to the approach of the present disclosure.

As an example, if the electrolyzer 12' comprises a first set of electrolytic cells 14.1 formed by 50 cells connected in series, with each cell requiring a peak voltage of 2.5 v,

Page 23

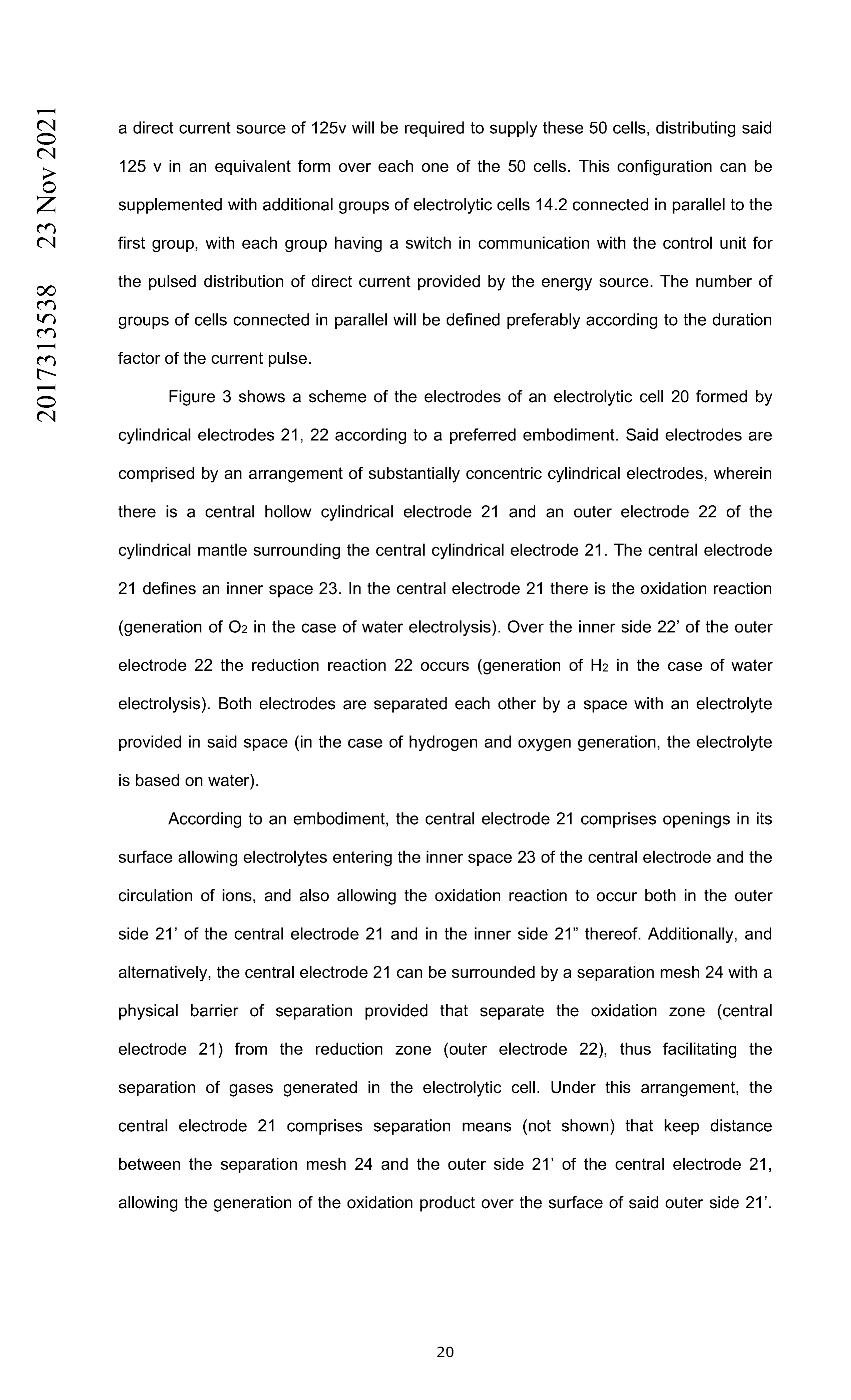

a direct current source of 125v will be required to supply these 50 cells, distributing said 125 v in an equivalent form over each one of the 50 cells. This configuration can be supplemented with additional groups of electrolytic cells 14.2 connected in parallel to the first group, with each group having a switch in communication with the control unit for the pulsed distribution of direct current provided by the energy source. The number of groups of cells connected in parallel will be defined preferably according to the duration factor of the current pulse.

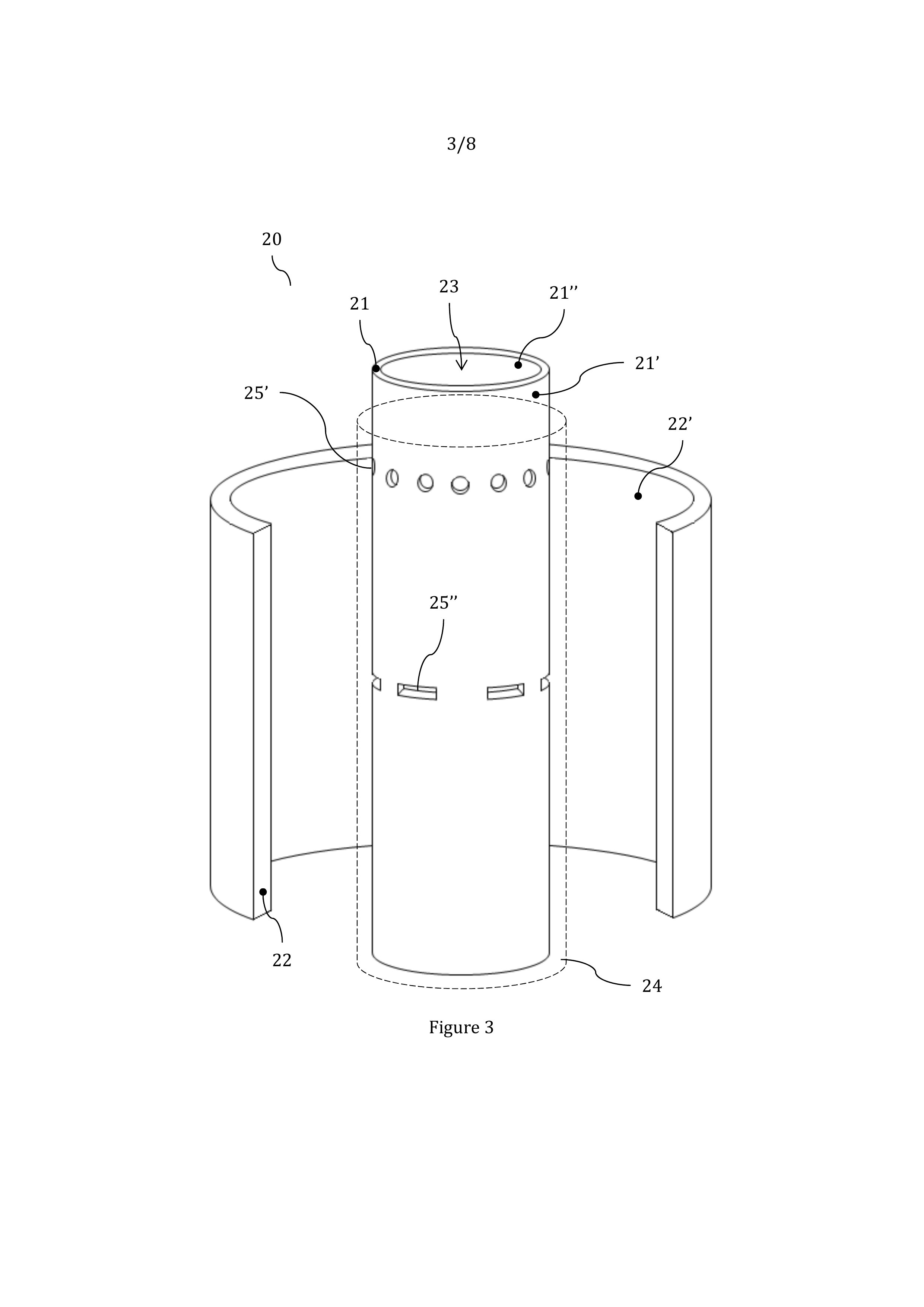

Figure 3 shows a scheme of the electrodes of an electrolytic cell 20 formed by cylindrical electrodes 21, 22 according to a preferred embodiment. Said electrodes are comprised by an arrangement of substantially concentric cylindrical electrodes, wherein there is a central hollow cylindrical electrode 21 and an outer electrode 22 of the cylindrical mantle surrounding the central cylindrical electrode 21. The central electrode 21 defines an inner space 23. In the central electrode 21 there is the oxidation reaction (generation of 02 in the case of water electrolysis). Over the inner side 22' of the outer electrode 22 the reduction reaction 22 occurs (generation of H2 in the case of water electrolysis). Both electrodes are separated each other by a space with an electrolyte provided in said space (in the case of hydrogen and oxygen generation, the electrolyte is based on water).

According to an embodiment, the central electrode 21 comprises openings in its surface allowing electrolytes entering the inner space 23 of the central electrode and the circulation of ions, and also allowing the oxidation reaction to occur both in the outer side 21' of the central electrode 21 and in the inner side 21" thereof. Additionally, and alternatively, the central electrode 21 can be surrounded by a separation mesh 24 with a physical barrier of separation provided that separate the oxidation zone (central electrode 21) from the reduction zone (outer electrode 22), thus facilitating the separation of gases generated in the electrolytic cell. Under this arrangement, the central electrode 21 comprises separation means (not shown) that keep distance between the separation mesh 24 and the outer side 21' of the central electrode 21, allowing the generation of the oxidation product over the surface of said outer side 21'.

Page 24

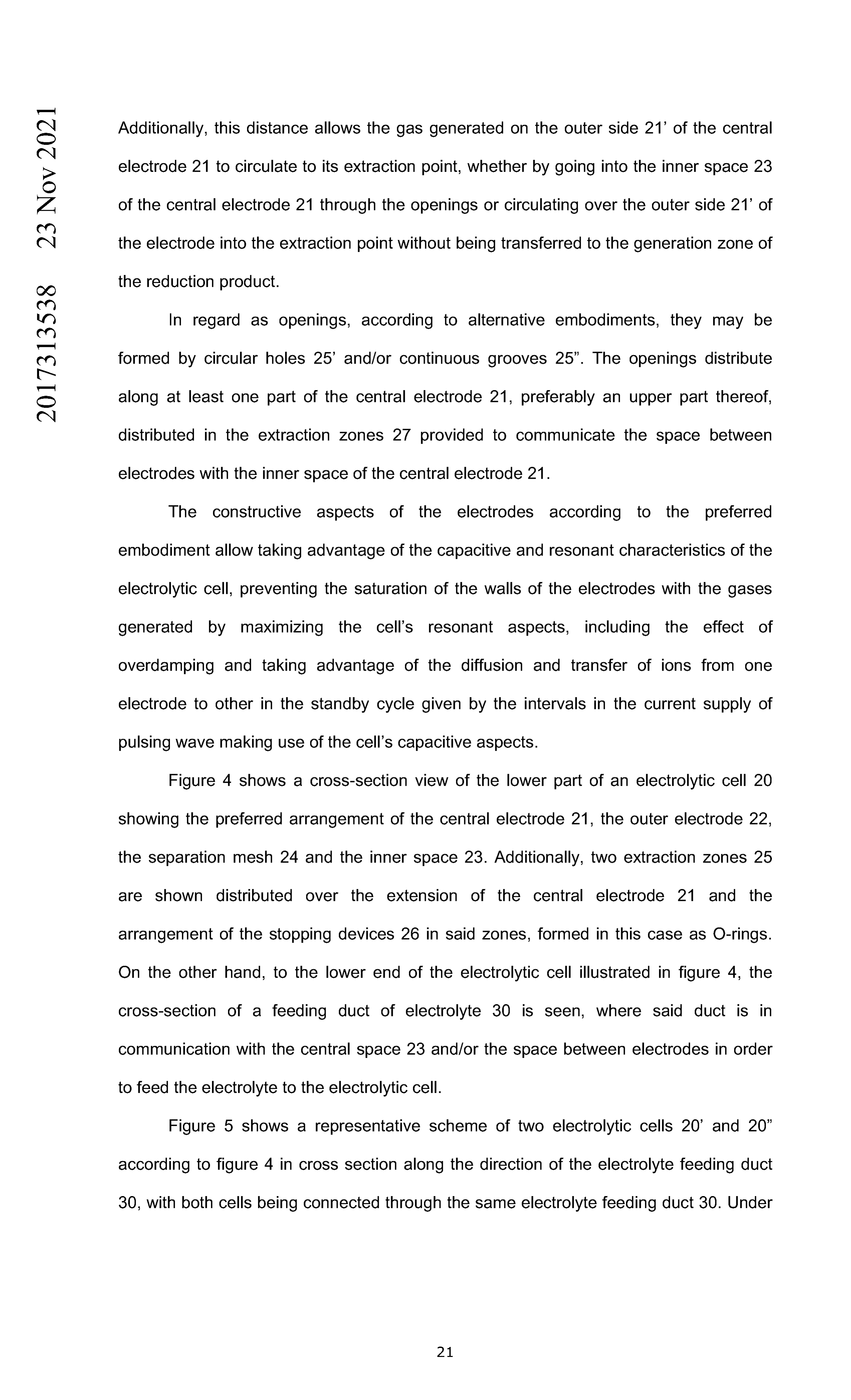

Additionally, this distance allows the gas generated on the outer side 21' of the central electrode 21 to circulate to its extraction point, whether by going into the inner space 23 of the central electrode 21 through the openings or circulating over the outer side 21' of the electrode into the extraction point without being transferred to the generation zone of the reduction product.

In regard as openings, according to alternative embodiments, they may be formed by circular holes 25' and/or continuous grooves 25". The openings distribute along at least one part of the central electrode 21, preferably an upper part thereof, distributed in the extraction zones 27 provided to communicate the space between electrodes with the inner space of the central electrode 21.

The constructive aspects of the electrodes according to the preferred embodiment allow taking advantage of the capacitive and resonant characteristics of the electrolytic cell, preventing the saturation of the walls of the electrodes with the gases generated by maximizing the cell's resonant aspects, including the effect of overdamping and taking advantage of the diffusion and transfer of ions from one electrode to other in the standby cycle given by the intervals in the current supply of pulsing wave making use of the cell's capacitive aspects.

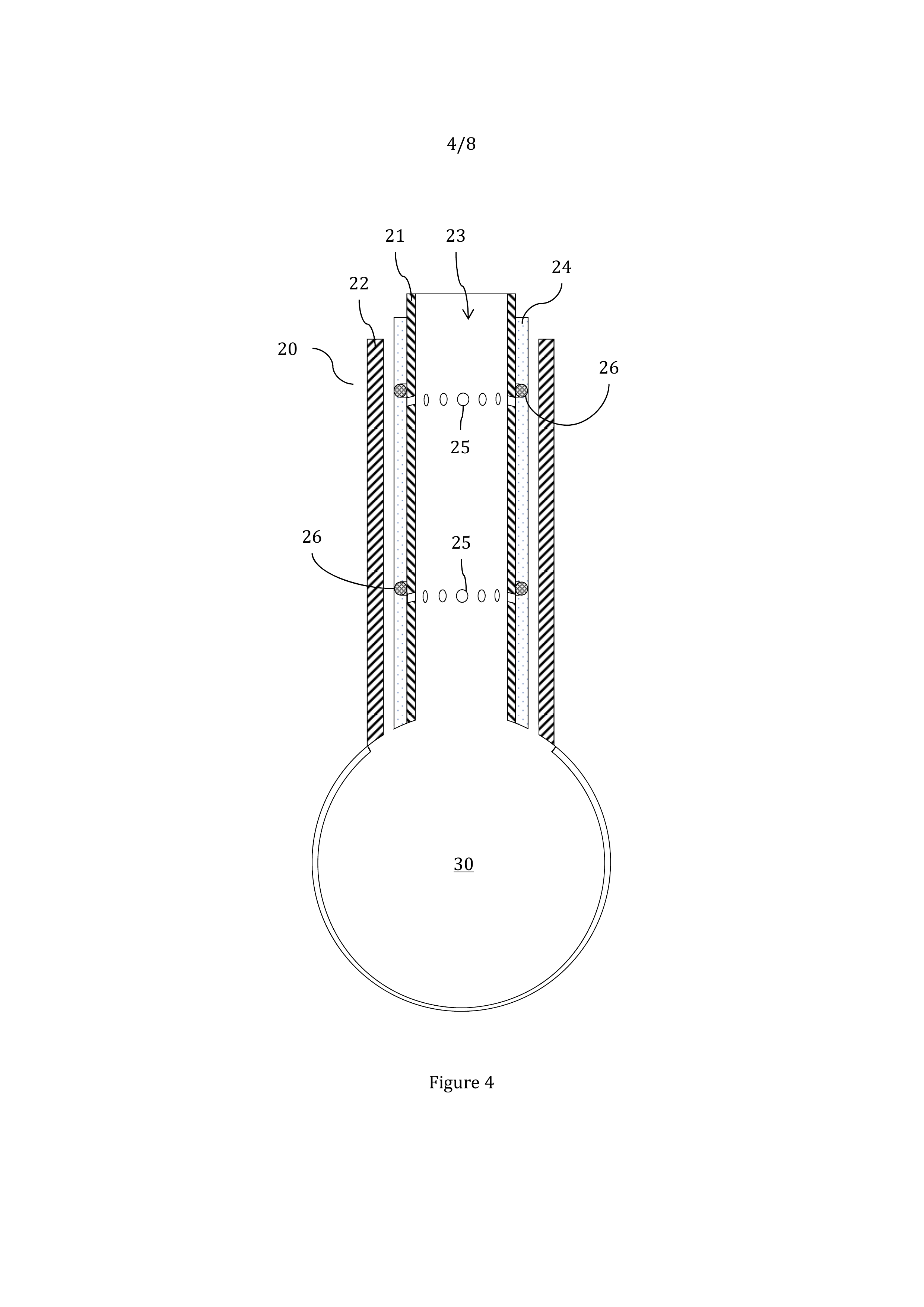

Figure 4 shows a cross-section view of the lower part of an electrolytic cell 20 showing the preferred arrangement of the central electrode 21, the outer electrode 22, the separation mesh 24 and the inner space 23. Additionally, two extraction zones 25 are shown distributed over the extension of the central electrode 21 and the arrangement of the stopping devices 26 in said zones, formed in this case as O-rings. On the other hand, to the lower end of the electrolytic cell illustrated in figure 4, the cross-section of a feeding duct of electrolyte 30 is seen, where said duct is in communication with the central space 23 and/or the space between electrodes in order to feed the electrolyte to the electrolytic cell.

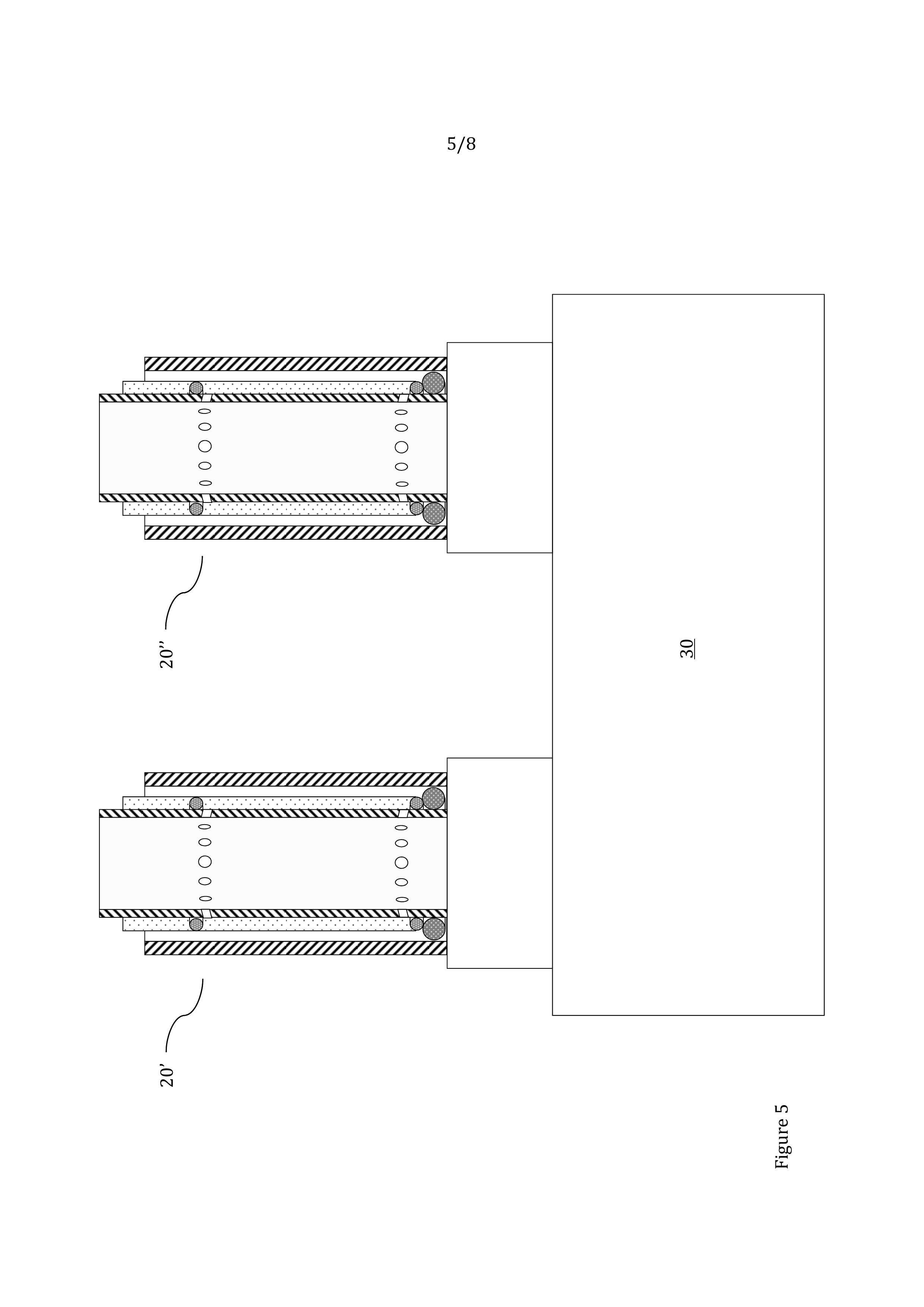

Figure 5 shows a representative scheme of two electrolytic cells 20' and 20" according to figure 4 in cross section along the direction of the electrolyte feeding duct 30, with both cells being connected through the same electrolyte feeding duct 30. Under

Page 25

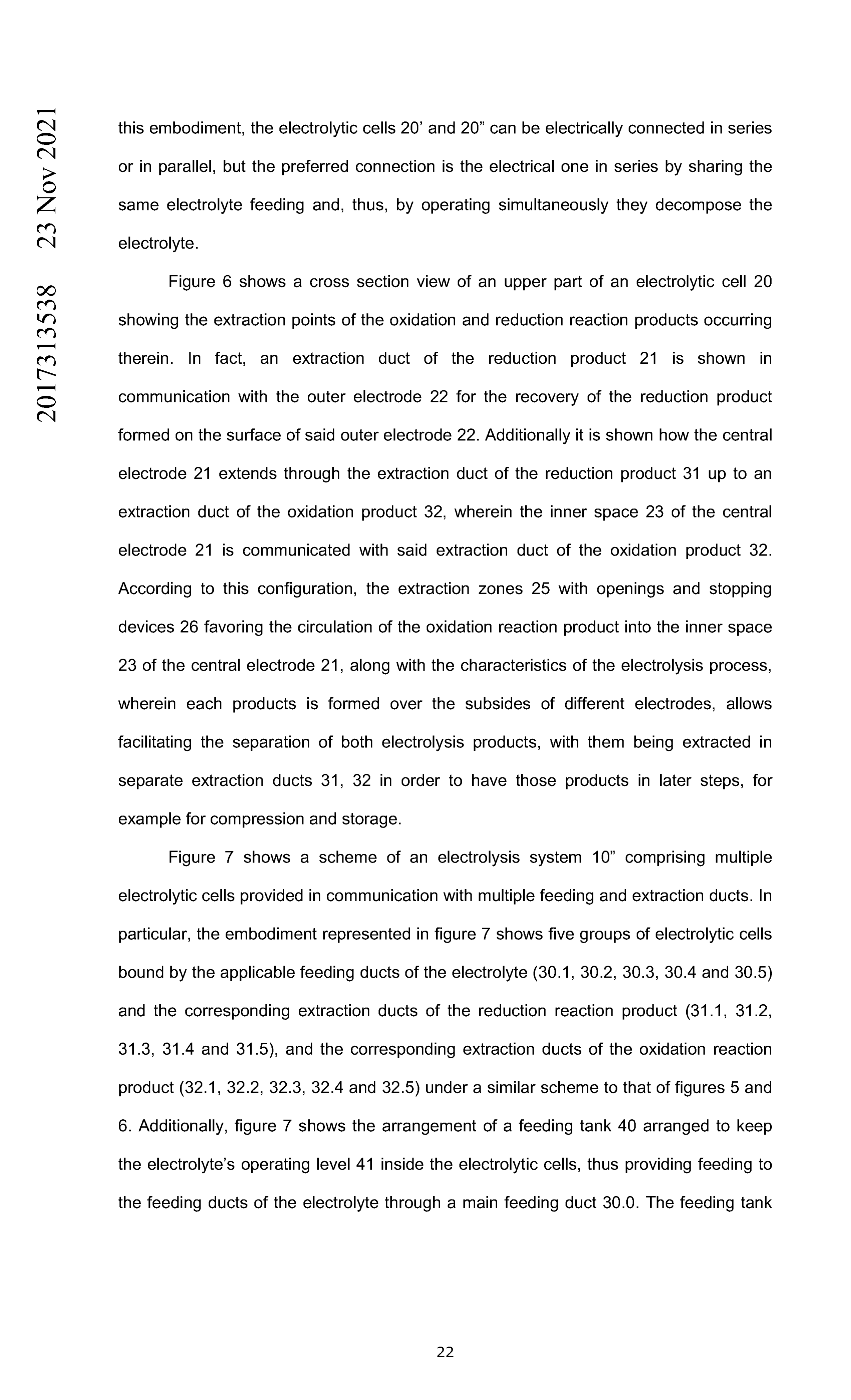

this embodiment, the electrolytic cells 20' and 20" can be electrically connected in series or in parallel, but the preferred connection is the electrical one in series by sharing the same electrolyte feeding and, thus, by operating simultaneously they decompose the electrolyte.

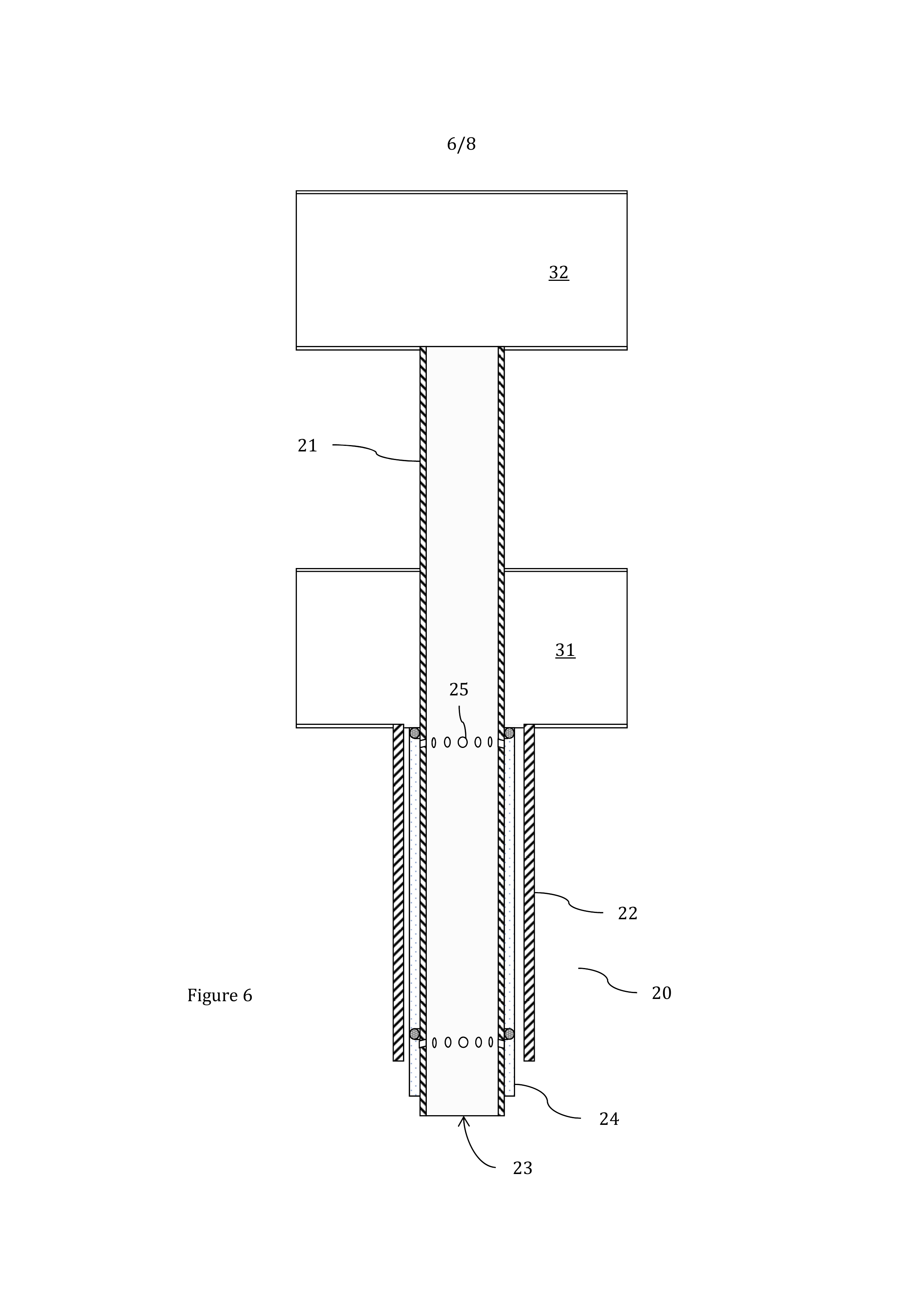

Figure 6 shows a cross section view of an upper part of an electrolytic cell 20 showing the extraction points of the oxidation and reduction reaction products occurring therein. In fact, an extraction duct of the reduction product 21 is shown in communication with the outer electrode 22 for the recovery of the reduction product formed on the surface of said outer electrode 22. Additionally it is shown how the central electrode 21 extends through the extraction duct of the reduction product 31 up to an extraction duct of the oxidation product 32, wherein the inner space 23 of the central electrode 21 is communicated with said extraction duct of the oxidation product 32. According to this configuration, the extraction zones 25 with openings and stopping devices 26 favoring the circulation of the oxidation reaction product into the inner space 23 of the central electrode 21, along with the characteristics of the electrolysis process, wherein each products is formed over the subsides of different electrodes, allows facilitating the separation of both electrolysis products, with them being extracted in separate extraction ducts 31, 32 in order to have those products in later steps, for example for compression and storage.

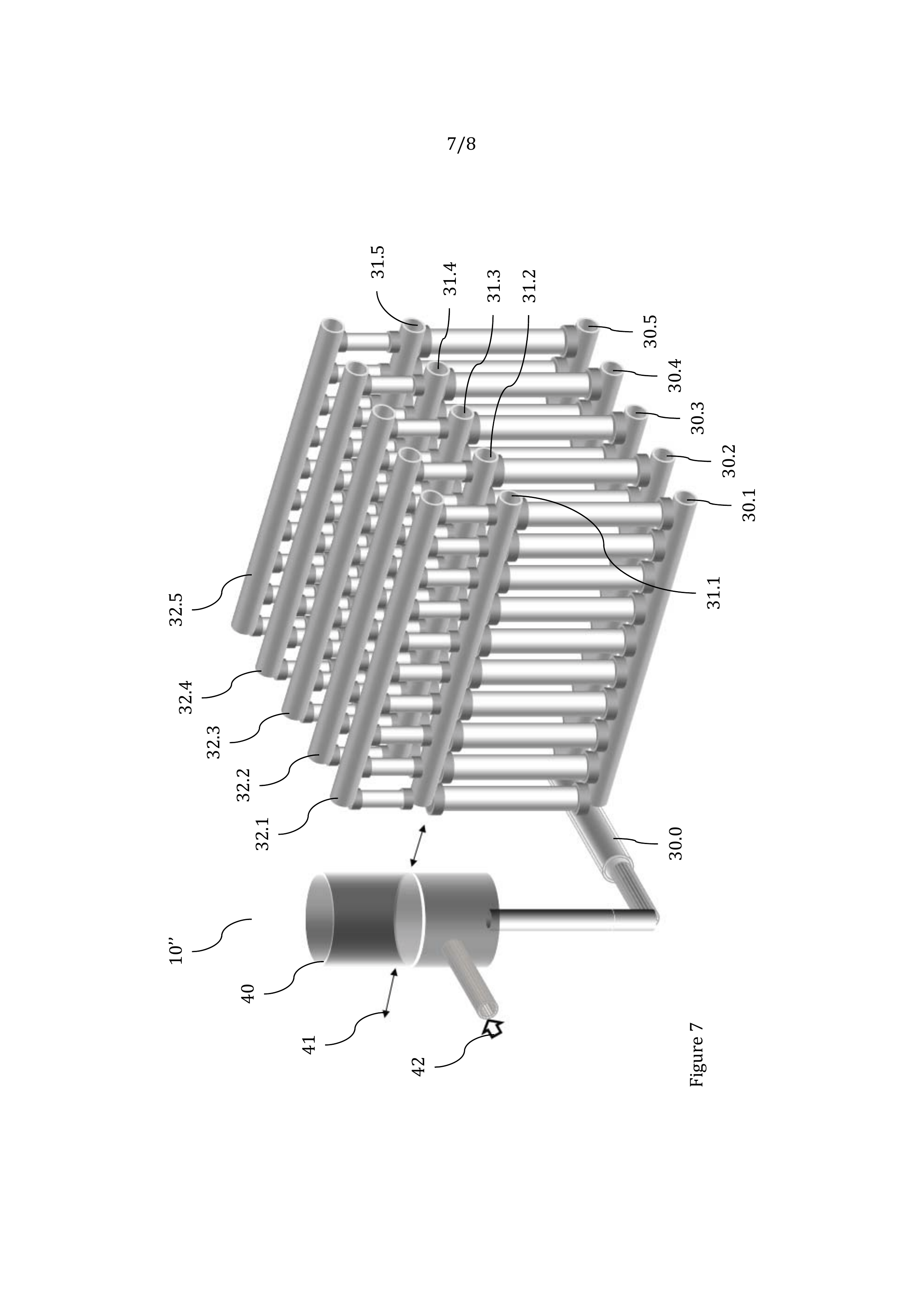

Figure 7 shows a scheme of an electrolysis system 10" comprising multiple electrolytic cells provided in communication with multiple feeding and extraction ducts. In particular, the embodiment represented in figure 7 shows five groups of electrolytic cells bound by the applicable feeding ducts of the electrolyte (30.1, 30.2, 30.3, 30.4 and 30.5) and the corresponding extraction ducts of the reduction reaction product (31.1, 31.2, 31.3, 31.4 and 31.5), and the corresponding extraction ducts of the oxidation reaction product (32.1, 32.2, 32.3, 32.4 and 32.5) under a similar scheme to that of figures 5 and 6. Additionally, figure 7 shows the arrangement of a feeding tank 40 arranged to keep the electrolyte's operating level 41 inside the electrolytic cells, thus providing feeding to the feeding ducts of the electrolyte through a main feeding duct 30.0. The feeding tank

Page 26

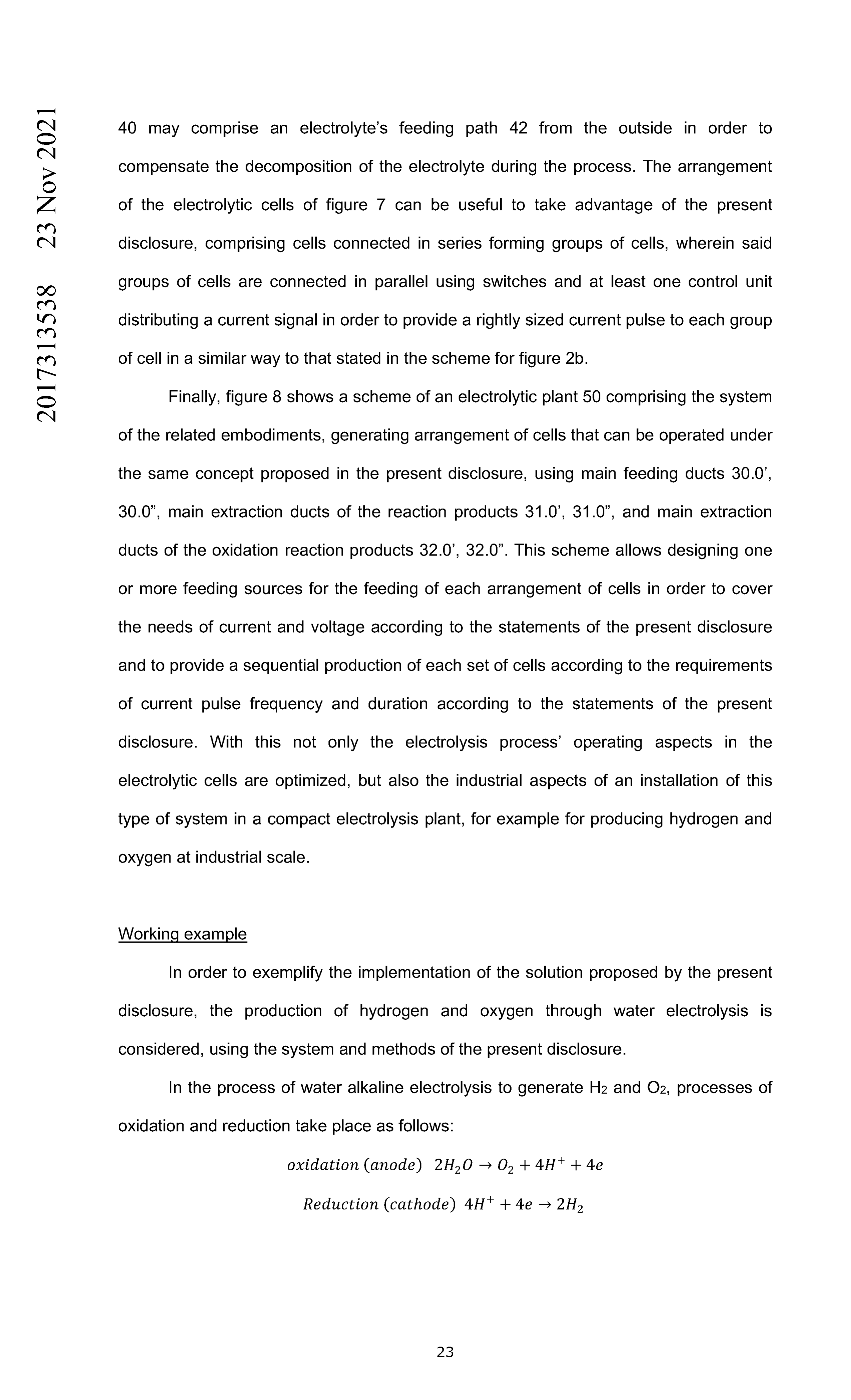

40 may comprise an electrolyte's feeding path 42 from the outside in order to compensate the decomposition of the electrolyte during the process. The arrangement of the electrolytic cells of figure 7 can be useful to take advantage of the present disclosure, comprising cells connected in series forming groups of cells, wherein said groups of cells are connected in parallel using switches and at least one control unit distributing a current signal in order to provide a rightly sized current pulse to each group of cell in a similar way to that stated in the scheme for figure 2b. Finally, figure 8 shows a scheme of an electrolytic plant 50 comprising the system of the related embodiments, generating arrangement of cells that can be operated under the same concept proposed in the present disclosure, using main feeding ducts 30.0', 30.0", main extraction ducts of the reaction products 31.0', 31.0", and main extraction ducts of the oxidation reaction products 32.0', 32.0". This scheme allows designing one or more feeding sources for the feeding of each arrangement of cells in order to cover the needs of current and voltage according to the statements of the present disclosure and to provide a sequential production of each set of cells according to the requirements of current pulse frequency and duration according to the statements of the present disclosure. With this not only the electrolysis process' operating aspects in the electrolytic cells are optimized, but also the industrial aspects of an installation of this type of system in a compact electrolysis plant, for example for producing hydrogen and oxygen at industrial scale.

Working example

In order to exemplify the implementation of the solution proposed by the present disclosure, the production of hydrogen and oxygen through water electrolysis is considered, using the system and methods of the present disclosure.

In the process of water alkaline electrolysis to generate H2 and 02, processes of oxidation and reduction take place as follows:

Reduction (cathode) 4H'+4e -_ 2H2

Page 27

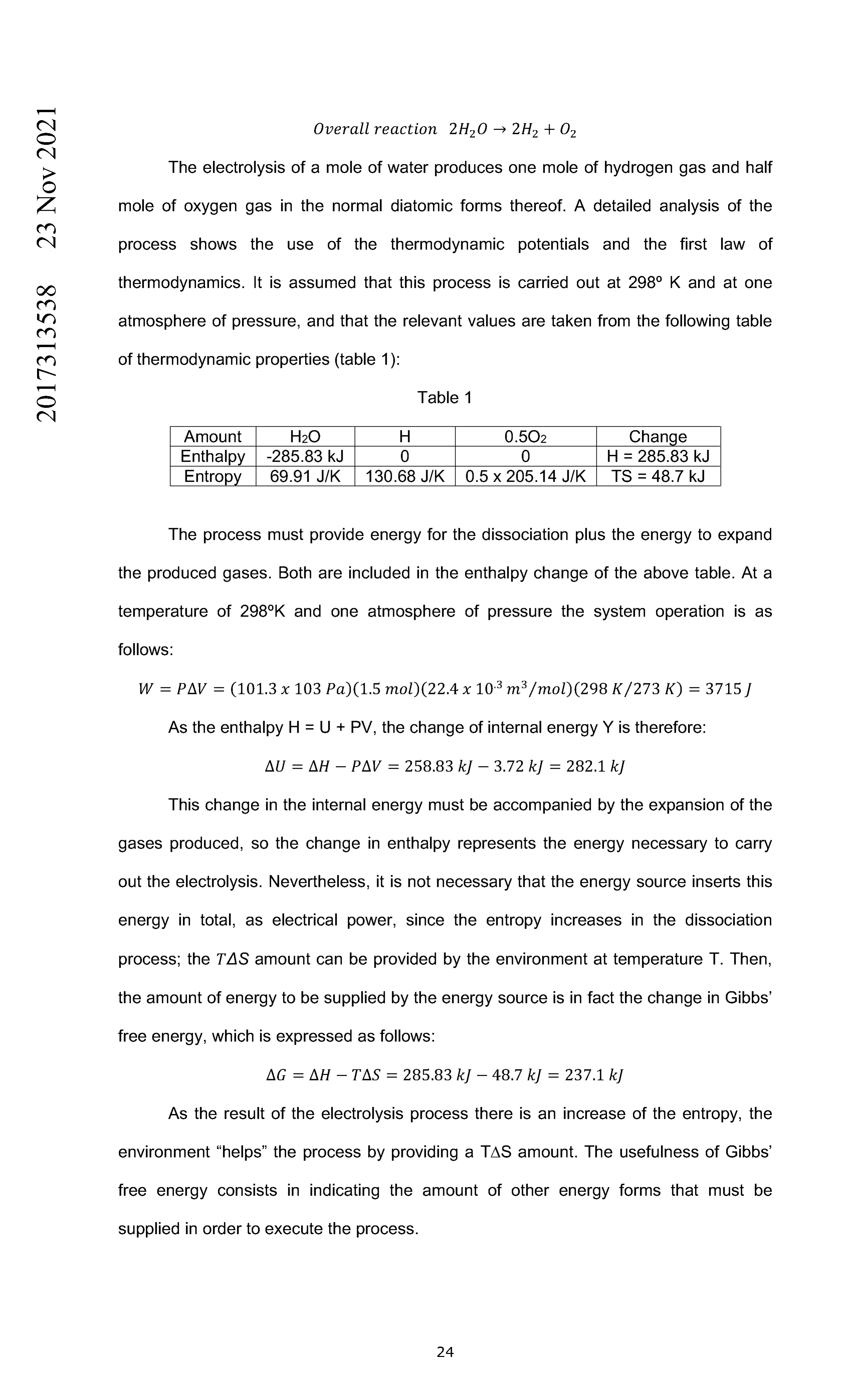

The electrolysis of a mole of water produces one mole of hydrogen gas and half mole of oxygen gas in the normal diatomic forms thereof. A detailed analysis of the process shows the use of the thermodynamic potentials and the first law of thermodynamics. It is assumed that this process is carried out at 298° K and at one atmosphere of pressure, and that the relevant values are taken from the following table of thermodynamic properties (table 1):

Table 1

Amount H20 H 0.502 Change Enthalpy -285.83 kJ 0 0 H = 285.83 kJ Entropy 69.91 J/K 130.68 J/K 0.5 x 205.14 J/K TS = 48.7 kJ The process must provide energy for the dissociation plus the energy to expand the produced gases. Both are included in the enthalpy change of the above table. At a temperature of 298 0K and one atmosphere of pressure the system operation is as follows:

W = PAV = (101.3 x 103 Pa)(1.5 mol)(22.4 x 10-3 m 3 /mol)(298 K/273 K) = 3715 J As the enthalpy H = U + PV, the change of internal energy Y is therefore:

This change in the internal energy must be accompanied by the expansion of the gases produced, so the change in enthalpy represents the energy necessary to carry out the electrolysis. Nevertheless, it is not necessary that the energy source inserts this energy in total, as electrical power, since the entropy increases in the dissociation process; the TAS amount can be provided by the environment at temperature T. Then, the amount of energy to be supplied by the energy source is in fact the change in Gibbs' free energy, which is expressed as follows:

As the result of the electrolysis process there is an increase of the entropy, the environment "helps" the process by providing a TAS amount. The usefulness of Gibbs' free energy consists in indicating the amount of other energy forms that must be supplied in order to execute the process.

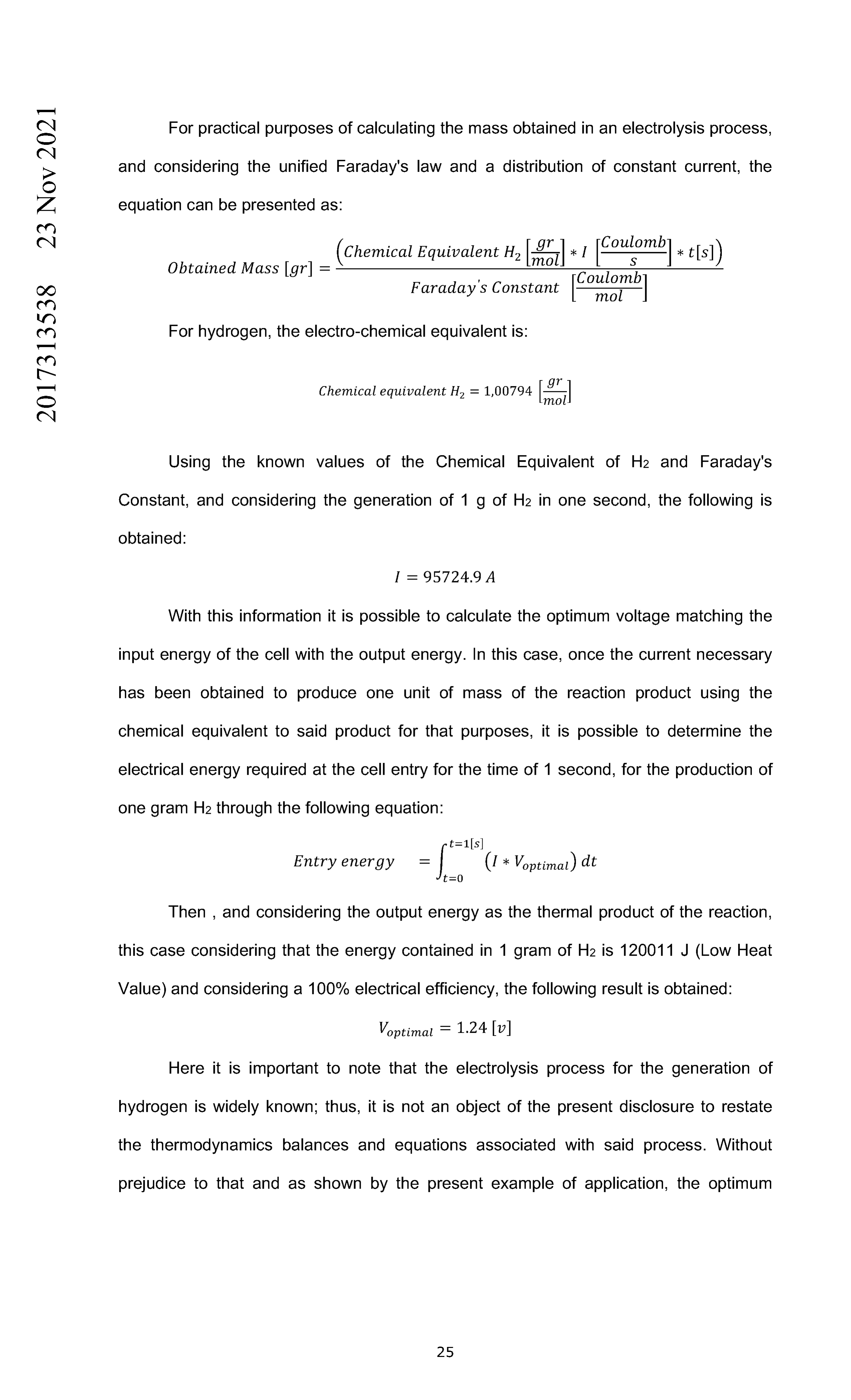

Page 28

For practical purposes of calculating the mass obtained in an electrolysis process, and considering the unified Faraday's law and a distribution of constant current, the equation can be presented as:

Obtained Mass [gr] = , oulombs Faraday'sConstant Coulomb

For hydrogen, the electro-chemical equivalent is:

Chemical equivalent H2 = 1,00794

Using the known values of the Chemical Equivalent of H2 and Faraday's Constant, and considering the generation of 1 g of H2 in one second, the following is obtained:

With this information it is possible to calculate the optimum voltage matching the input energy of the cell with the output energy. In this case, once the current necessary has been obtained to produce one unit of mass of the reaction product using the chemical equivalent to said product for that purposes, it is possible to determine the electrical energy required at the cell entry for the time of 1 second, for the production of one gram H2 through the following equation:

Then , and considering the output energy as the thermal product of the reaction, this case considering that the energy contained in 1 gram of H2 is 120011 J (Low Heat Value) and considering a 100% electrical efficiency, the following result is obtained:

Here it is important to note that the electrolysis process for the generation of hydrogen is widely known; thus, it is not an object of the present disclosure to restate the thermodynamics balances and equations associated with said process. Without prejudice to that and as shown by the present example of application, the optimum

Page 29

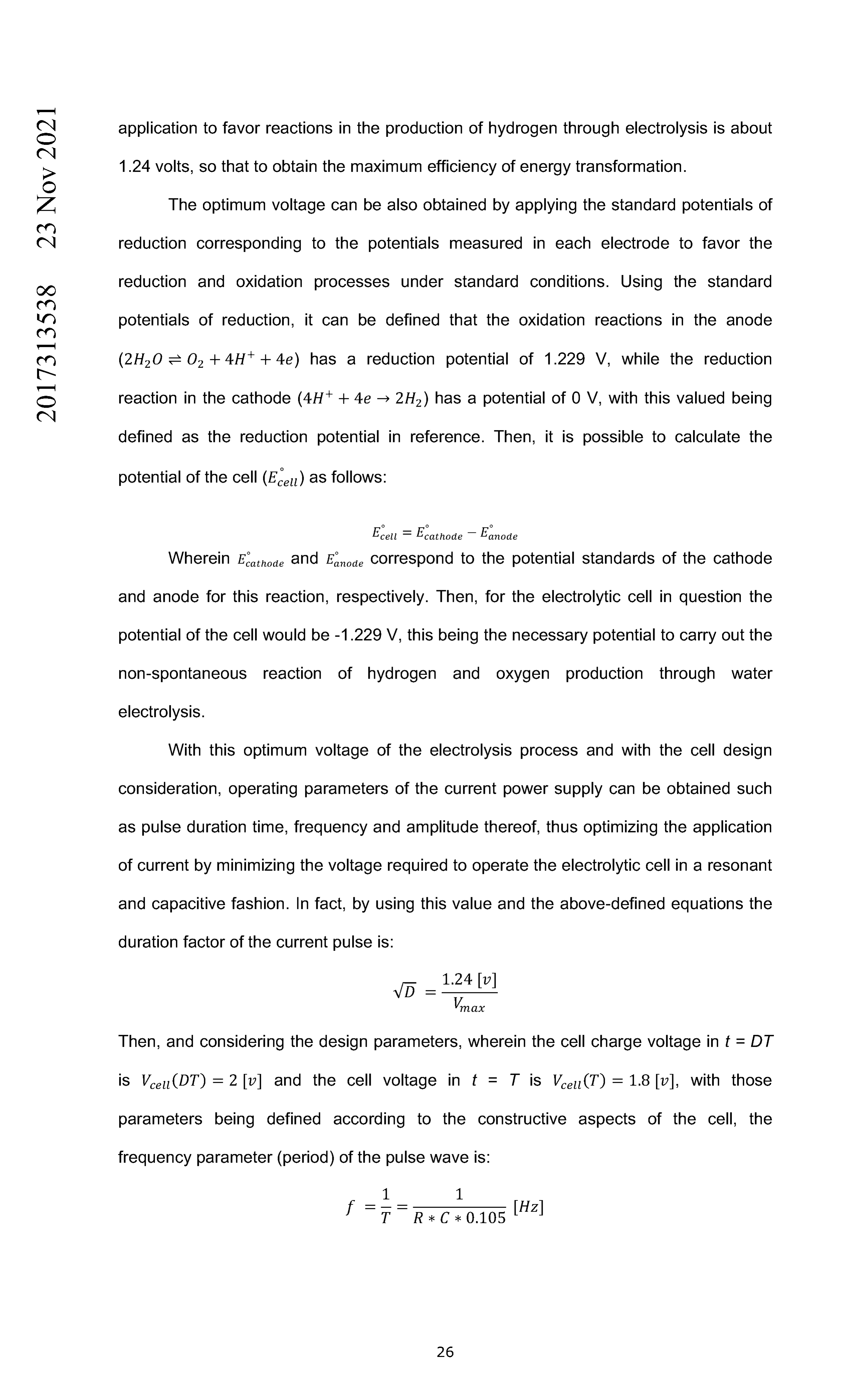

application to favor reactions in the production of hydrogen through electrolysis is about 1.24 volts, so that to obtain the maximum efficiency of energy transformation. The optimum voltage can be also obtained by applying the standard potentials of reduction corresponding to the potentials measured in each electrode to favor the reduction and oxidation processes under standard conditions. Using the standard potentials of reduction, it can be defined that the oxidation reactions in the anode (2H2 0 + 02+ 4H+ + 4e) has a reduction potential of 1.229 V, while the reduction reaction in the cathode (4H+ + 4e -> 2H2 ) has a potential of 0 V, with this valued being defined as the reduction potential in reference. Then, it is possible to calculate the potential of the cell (Ecei) as follows:

Eceu = Ecathode - Eanode

Wherein Ecatode and Eanode orrespond to the potential standards of the cathode and anode for this reaction, respectively. Then, for the electrolytic cell in question the potential of the cell would be -1.229 V, this being the necessary potential to carry out the non-spontaneous reaction of hydrogen and oxygen production through water electrolysis.

With this optimum voltage of the electrolysis process and with the cell design consideration, operating parameters of the current power supply can be obtained such as pulse duration time, frequency and amplitude thereof, thus optimizing the application of current by minimizing the voltage required to operate the electrolytic cell in a resonant and capacitive fashion. In fact, by using this value and the above-defined equations the duration factor of the current pulse is:

Vmax

Then, and considering the design parameters, wherein the cell charge voltage in t = DT is Vcei(DT) = 2 [v] and the cell voltage in t = T is Vcei(T) = 1.8 [v], with those parameters being defined according to the constructive aspects of the cell, the frequency parameter (period) of the pulse wave is:

Page 30

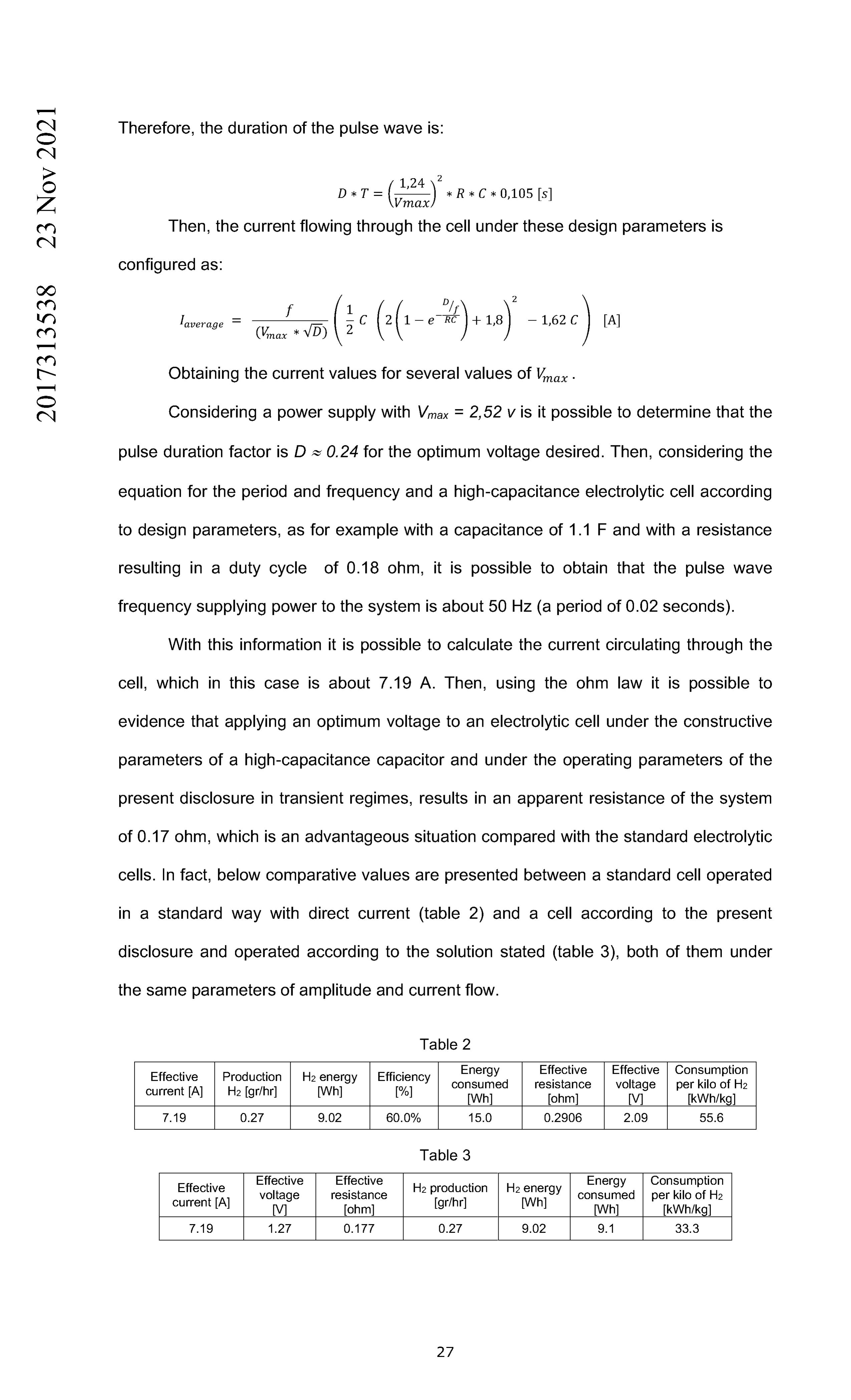

Therefore, the duration of the pulse wave is:

Then, the current flowing through the cell under these design parameters is configured as:

Average = (VC 2 1 - eRC) - 1,8 -1,62 C [A]

Obtaining the current values for several valuesof Vmax.

Considering a power supply with Vmax = 2,52 v is it possible to determine that the pulse duration factor is D ~~ 0.24 for the optimum voltage desired. Then, considering the equation for the period and frequency and a high-capacitance electrolytic cell according to design parameters, as for example with a capacitance of 1.1 F and with a resistance resulting in a duty cycle of 0.18 ohm, it is possible to obtain that the pulse wave frequency supplying power to the system is about 50 Hz (a period of 0.02 seconds). With this information it is possible to calculate the current circulating through the cell, which in this case is about 7.19 A. Then, using the ohm law it is possible to evidence that applying an optimum voltage to an electrolytic cell under the constructive parameters of a high-capacitance capacitor and under the operating parameters of the present disclosure in transient regimes, results in an apparent resistance of the system of 0.17 ohm, which is an advantageous situation compared with the standard electrolytic cells. In fact, below comparative values are presented between a standard cell operated in a standard way with direct current (table 2) and a cell according to the present disclosure and operated according to the solution stated (table 3), both of them under the same parameters of amplitude and current flow.

Table 2

Effective Production H2 energy Efficiency Energy Effective Effective Consumption curet[] 2[r/r] [W] %] consumed resistance voltage per kilo of H2

7.19 0.27 9.02 60.0% 15.0 0.2906 2.09 55.6 Table 3

Efcie Effective Effective Hprdcin 2eegy Energy Consumption voltage resistance H2prohrction H2energy consumed per kilo ofH2 cfent v]E

[V] [ohm] [Wh] [kWh/kg]

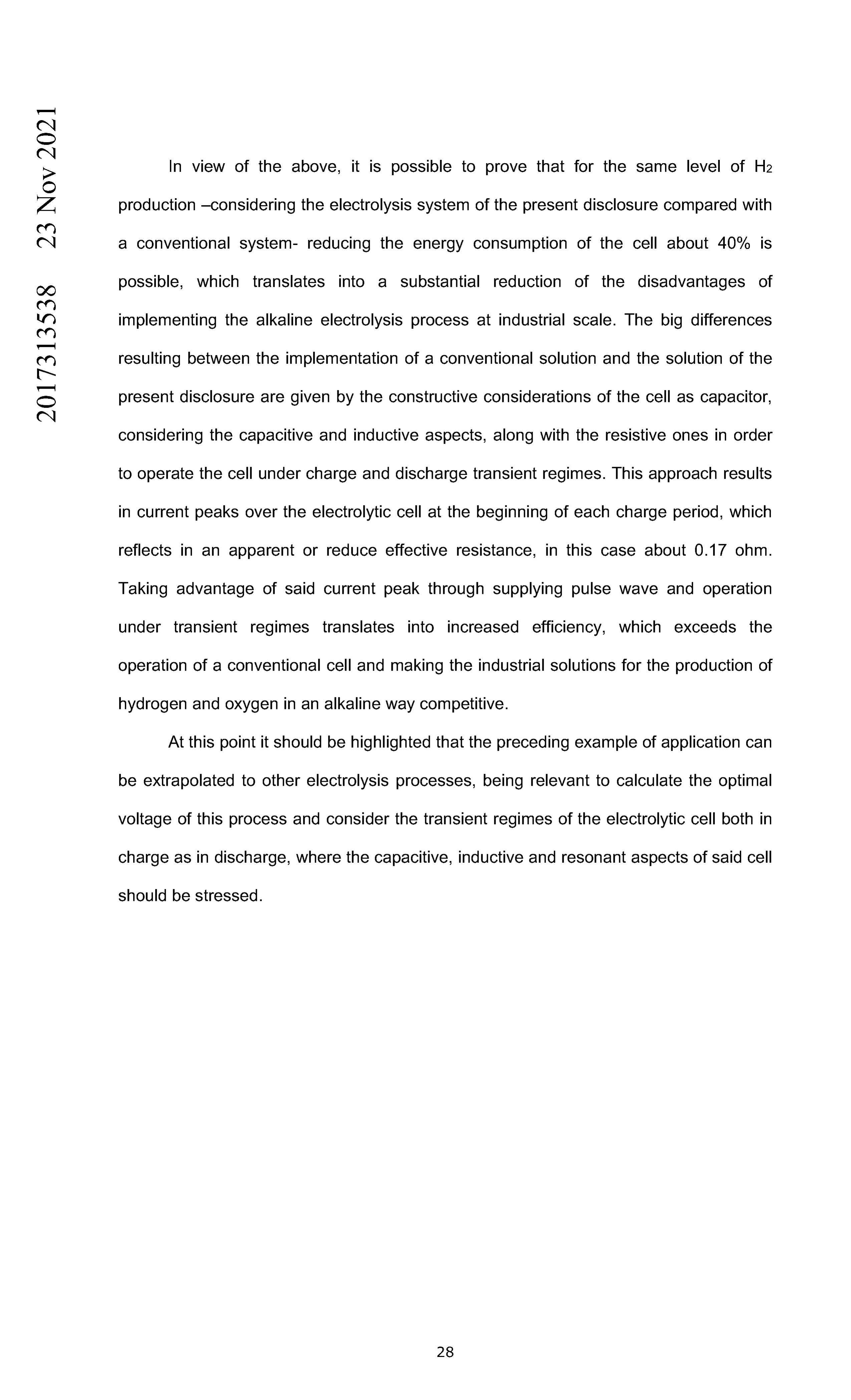

Page 31

In view of the above, it is possible to prove that for the same level of H2 production -considering the electrolysis system of the present disclosure compared with a conventional system- reducing the energy consumption of the cell about 40% is possible, which translates into a substantial reduction of the disadvantages of implementing the alkaline electrolysis process at industrial scale. The big differences resulting between the implementation of a conventional solution and the solution of the present disclosure are given by the constructive considerations of the cell as capacitor, considering the capacitive and inductive aspects, along with the resistive ones in order to operate the cell under charge and discharge transient regimes. This approach results in current peaks over the electrolytic cell at the beginning of each charge period, which reflects in an apparent or reduce effective resistance, in this case about 0.17 ohm. Taking advantage of said current peak through supplying pulse wave and operation under transient regimes translates into increased efficiency, which exceeds the operation of a conventional cell and making the industrial solutions for the production of hydrogen and oxygen in an alkaline way competitive.

At this point it should be highlighted that the preceding example of application can be extrapolated to other electrolysis processes, being relevant to calculate the optimal voltage of this process and consider the transient regimes of the electrolytic cell both in charge as in discharge, where the capacitive, inductive and resonant aspects of said cell should be stressed.

Page 32

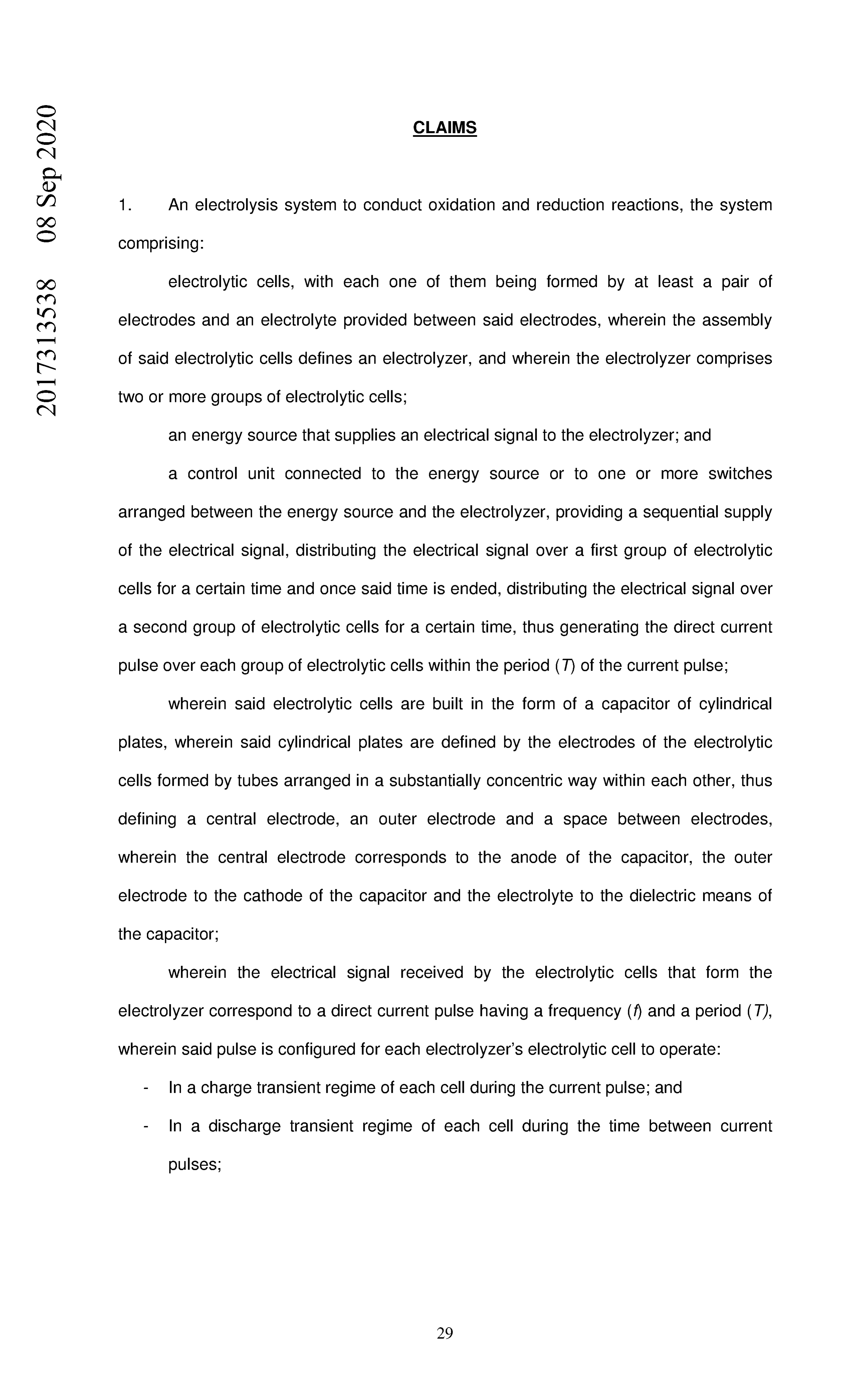

CLAIMS

1. An electrolysis system to conduct oxidation and reduction reactions, the system comprising:

electrolytic cells, with each one of them being formed by at least a pair of electrodes and an electrolyte provided between said electrodes, wherein the assembly of said electrolytic cells defines an electrolyzer, and wherein the electrolyzer comprises two or more groups of electrolytic cells;

an energy source that supplies an electrical signal to the electrolyzer; and a control unit connected to the energy source or to one or more switches arranged between the energy source and the electrolyzer, providing a sequential supply of the electrical signal, distributing the electrical signal over a first group of electrolytic cells for a certain time and once said time is ended, distributing the electrical signal over a second group of electrolytic cells for a certain time, thus generating the direct current pulse over each group of electrolytic cells within the period (T) of the current pulse; wherein said electrolytic cells are built in the form of a capacitor of cylindrical plates, wherein said cylindrical plates are defined by the electrodes of the electrolytic cells formed by tubes arranged in a substantially concentric way within each other, thus defining a central electrode, an outer electrode and a space between electrodes, wherein the central electrode corresponds to the anode of the capacitor, the outer electrode to the cathode of the capacitor and the electrolyte to the dielectric means of the capacitor;

wherein the electrical signal received by the electrolytic cells that form the electrolyzer correspond to a direct current pulse having a frequency () and a period (T), wherein said pulse is configured for each electrolyzer's electrolytic cell to operate: - In a charge transient regime of each cell during the current pulse; and - In a discharge transient regime of each cell during the time between current pulses;

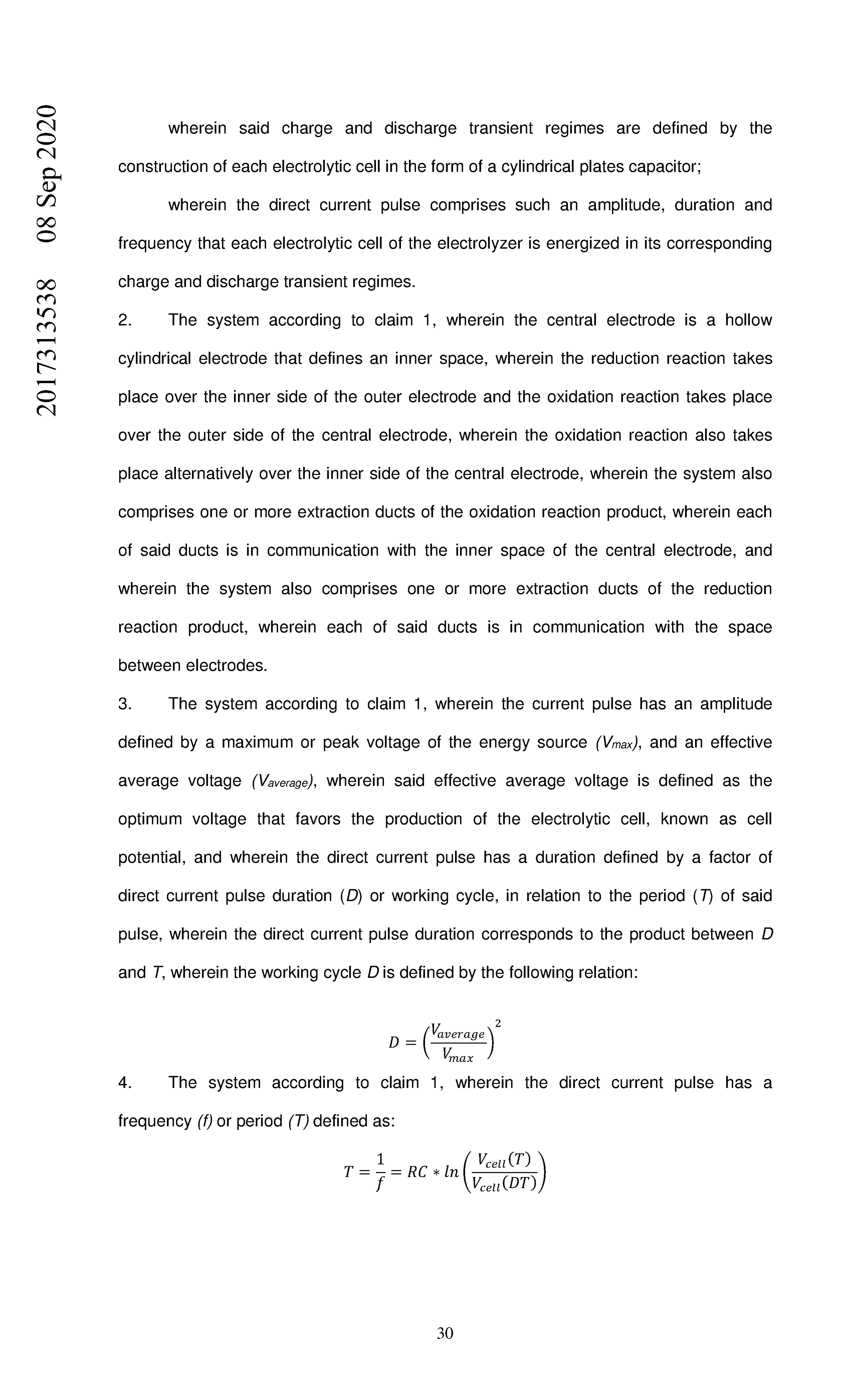

Page 33

wherein said charge and discharge transient regimes are defined by the construction of each electrolytic cell in the form of a cylindrical plates capacitor; wherein the direct current pulse comprises such an amplitude, duration and frequency that each electrolytic cell of the electrolyzer is energized in its corresponding charge and discharge transient regimes.

2. The system according to claim 1, wherein the central electrode is a hollow cylindrical electrode that defines an inner space, wherein the reduction reaction takes place over the inner side of the outer electrode and the oxidation reaction takes place over the outer side of the central electrode, wherein the oxidation reaction also takes place alternatively over the inner side of the central electrode, wherein the system also comprises one or more extraction ducts of the oxidation reaction product, wherein each of said ducts is in communication with the inner space of the central electrode, and wherein the system also comprises one or more extraction ducts of the reduction reaction product, wherein each of said ducts is in communication with the space between electrodes.

3. The system according to claim 1, wherein the current pulse has an amplitude defined by a maximum or peak voltage of the energy source (Vmax), and an effective average voltage(Vaverage), wherein said effective average voltage is defined as the optimum voltage that favors the production of the electrolytic cell, known as cell potential, and wherein the direct current pulse has a duration defined by a factor of direct current pulse duration (D) or working cycle, in relation to the period (T) of said pulse, wherein the direct current pulse duration corresponds to the product between D and T, wherein the working cycle D is defined by the following relation:

D (average

4. The system according to claim 1, wherein the direct current pulse has a frequency (f) or period (T) defined as:

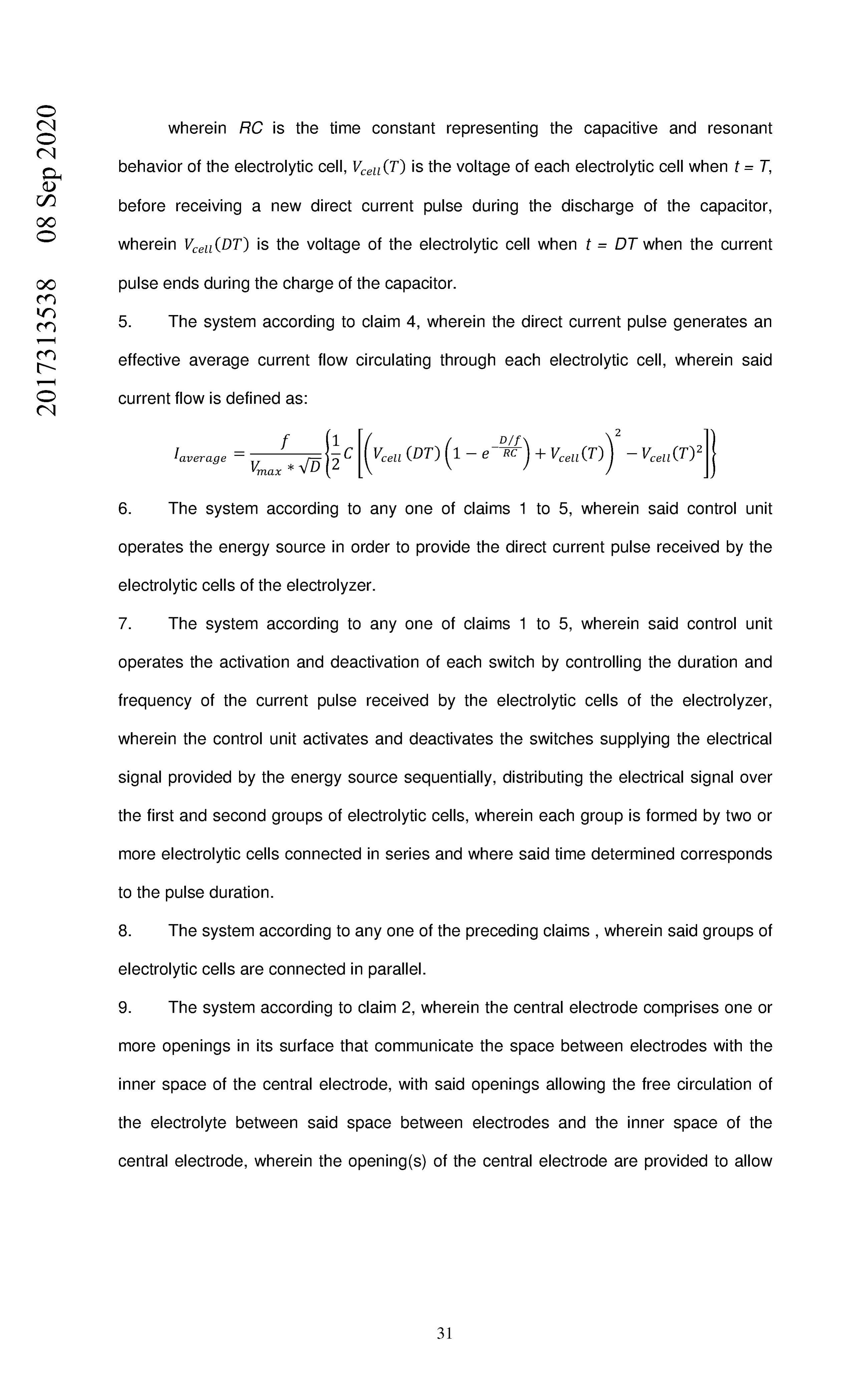

Page 34

wherein RC is the time constant representing the capacitive and resonant behavior of the electrolytic cell, Vei(T) is the voltage of each electrolytic cell when t = T, before receiving a new direct current pulse during the discharge of the capacitor, wherein Ve(DT) is the voltage of the electrolytic cell when t = DT when the current pulse ends during the charge of the capacitor.

5. The system according to claim 4, wherein the direct current pulse generates an effective average current flow circulating through each electrolytic cell, wherein said current flow is defined as:

Average = -*C Vce (DT) (1 - e R + Vce (T) - cei(T]

6. The system according to any one of claims 1 to 5, wherein said control unit operates the energy source in order to provide the direct current pulse received by the electrolytic cells of the electrolyzer.

7. The system according to any one of claims 1 to 5, wherein said control unit operates the activation and deactivation of each switch by controlling the duration and frequency of the current pulse received by the electrolytic cells of the electrolyzer, wherein the control unit activates and deactivates the switches supplying the electrical signal provided by the energy source sequentially, distributing the electrical signal over the first and second groups of electrolytic cells, wherein each group is formed by two or more electrolytic cells connected in series and where said time determined corresponds to the pulse duration.

8. The system according to any one of the preceding claims , wherein said groups of electrolytic cells are connected in parallel.

9. The system according to claim 2, wherein the central electrode comprises one or more openings in its surface that communicate the space between electrodes with the inner space of the central electrode, with said openings allowing the free circulation of the electrolyte between said space between electrodes and the inner space of the central electrode, wherein the opening(s) of the central electrode are provided to allow

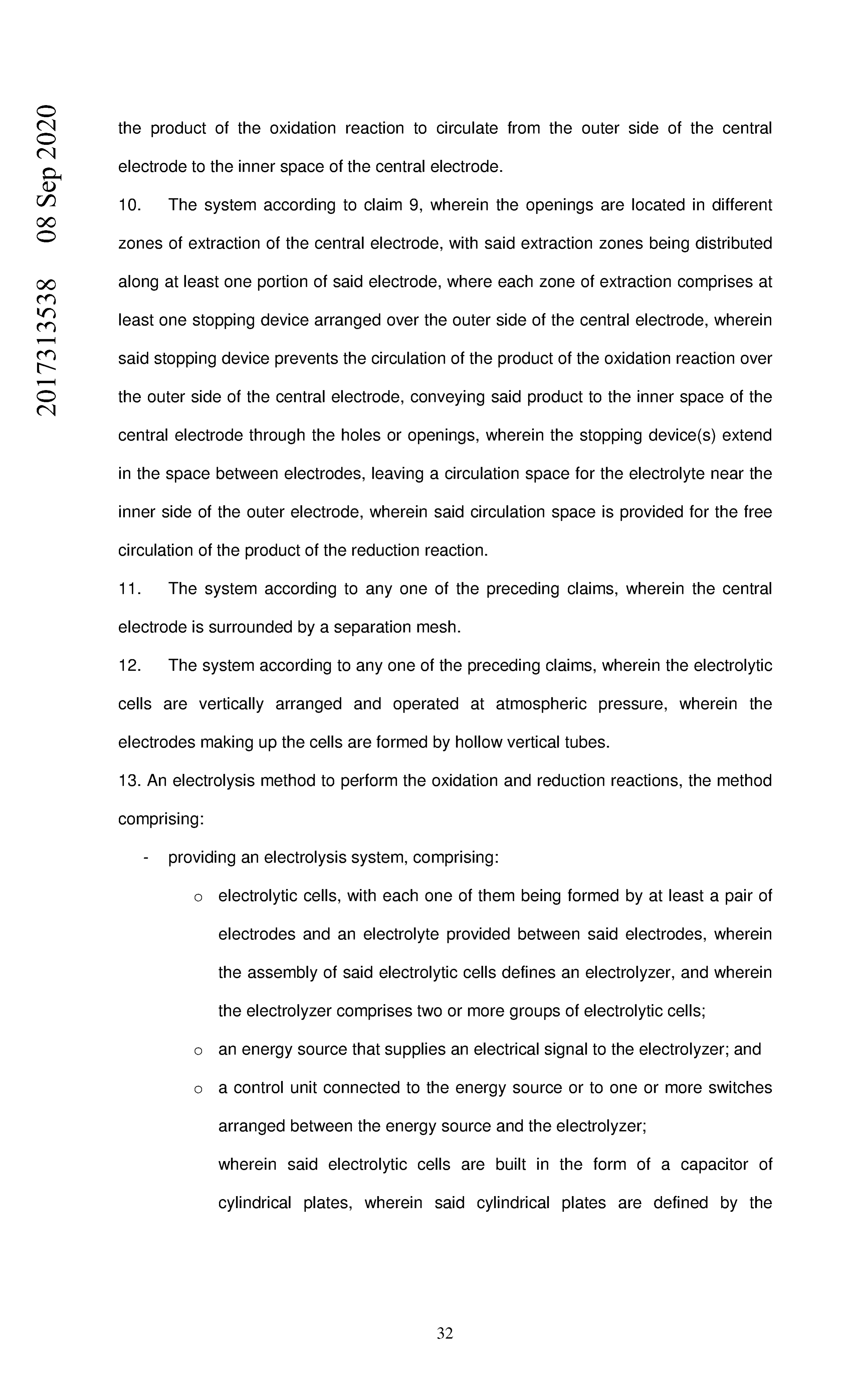

Page 35

the product of the oxidation reaction to circulate from the outer side of the central electrode to the inner space of the central electrode.

10. The system according to claim 9, wherein the openings are located in different zones of extraction of the central electrode, with said extraction zones being distributed along at least one portion of said electrode, where each zone of extraction comprises at least one stopping device arranged over the outer side of the central electrode, wherein said stopping device prevents the circulation of the product of the oxidation reaction over the outer side of the central electrode, conveying said product to the inner space of the central electrode through the holes or openings, wherein the stopping device(s) extend in the space between electrodes, leaving a circulation space for the electrolyte near the inner side of the outer electrode, wherein said circulation space is provided for the free circulation of the product of the reduction reaction.

11. The system according to any one of the preceding claims, wherein the central electrode is surrounded by a separation mesh.

12. The system according to any one of the preceding claims, wherein the electrolytic cells are vertically arranged and operated at atmospheric pressure, wherein the electrodes making up the cells are formed by hollow vertical tubes.

13. An electrolysis method to perform the oxidation and reduction reactions, the method comprising:

- providing an electrolysis system, comprising:

o electrolytic cells, with each one of them being formed by at least a pair of electrodes and an electrolyte provided between said electrodes, wherein the assembly of said electrolytic cells defines an electrolyzer, and wherein the electrolyzer comprises two or more groups of electrolytic cells;

o an energy source that supplies an electrical signal to the electrolyzer; and o a control unit connected to the energy source or to one or more switches arranged between the energy source and the electrolyzer;

wherein said electrolytic cells are built in the form of a capacitor of cylindrical plates, wherein said cylindrical plates are defined by the

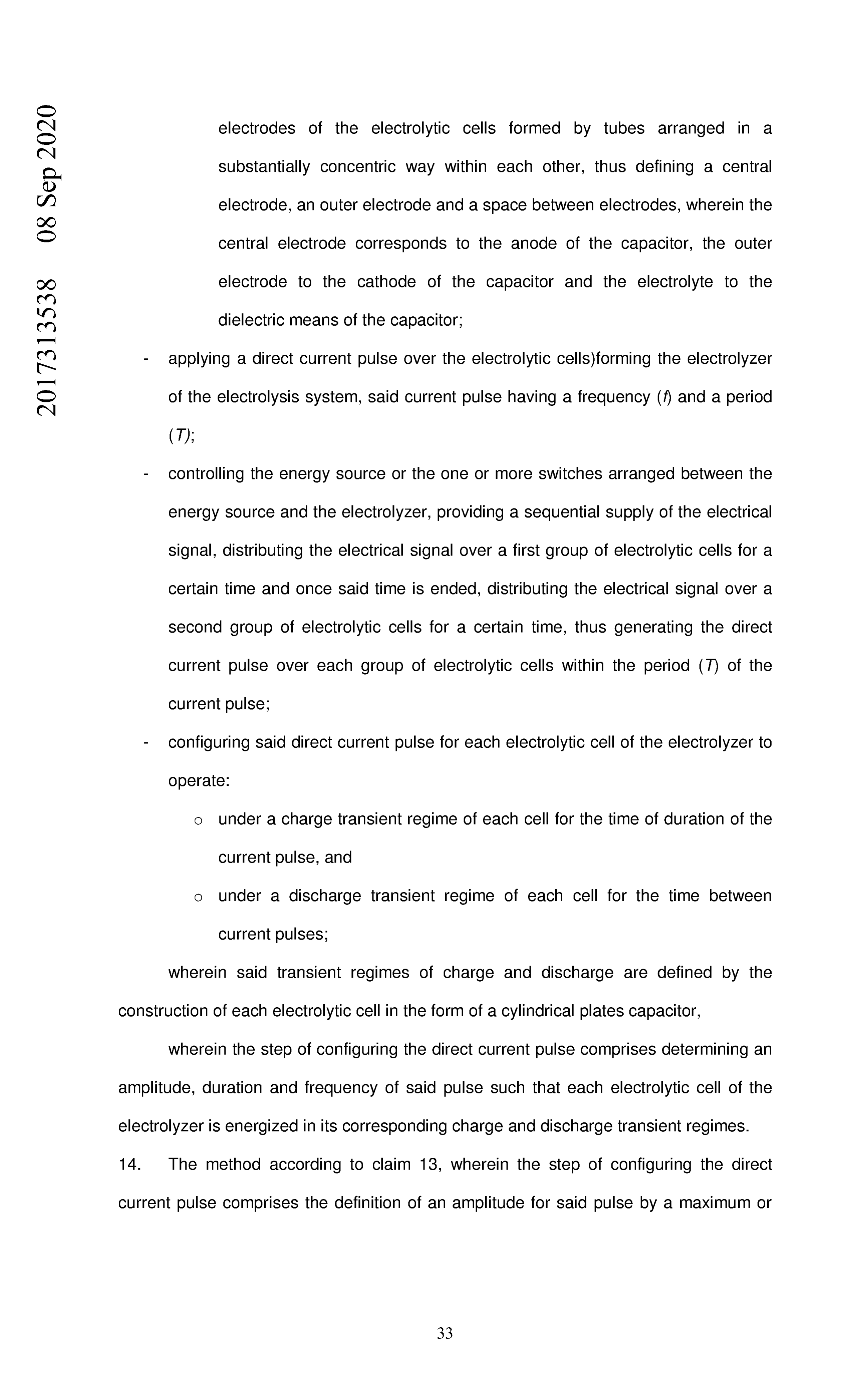

Page 36

electrodes of the electrolytic cells formed by tubes arranged in a substantially concentric way within each other, thus defining a central electrode, an outer electrode and a space between electrodes, wherein the central electrode corresponds to the anode of the capacitor, the outer electrode to the cathode of the capacitor and the electrolyte to the dielectric means of the capacitor;

- applying a direct current pulse over the electrolytic cells)forming the electrolyzer of the electrolysis system, said current pulse having a frequency () and a period

- controlling the energy source or the one or more switches arranged between the energy source and the electrolyzer, providing a sequential supply of the electrical signal, distributing the electrical signal over a first group of electrolytic cells for a certain time and once said time is ended, distributing the electrical signal over a second group of electrolytic cells for a certain time, thus generating the direct current pulse over each group of electrolytic cells within the period (T) of the current pulse;

- configuring said direct current pulse for each electrolytic cell of the electrolyzer to operate:

o under a charge transient regime of each cell for the time of duration of the current pulse, and o under a discharge transient regime of each cell for the time between current pulses;

wherein said transient regimes of charge and discharge are defined by the construction of each electrolytic cell in the form of a cylindrical plates capacitor, wherein the step of configuring the direct current pulse comprises determining an amplitude, duration and frequency of said pulse such that each electrolytic cell of the electrolyzer is energized in its corresponding charge and discharge transient regimes. 14. The method according to claim 13, wherein the step of configuring the direct current pulse comprises the definition of an amplitude for said pulse by a maximum or

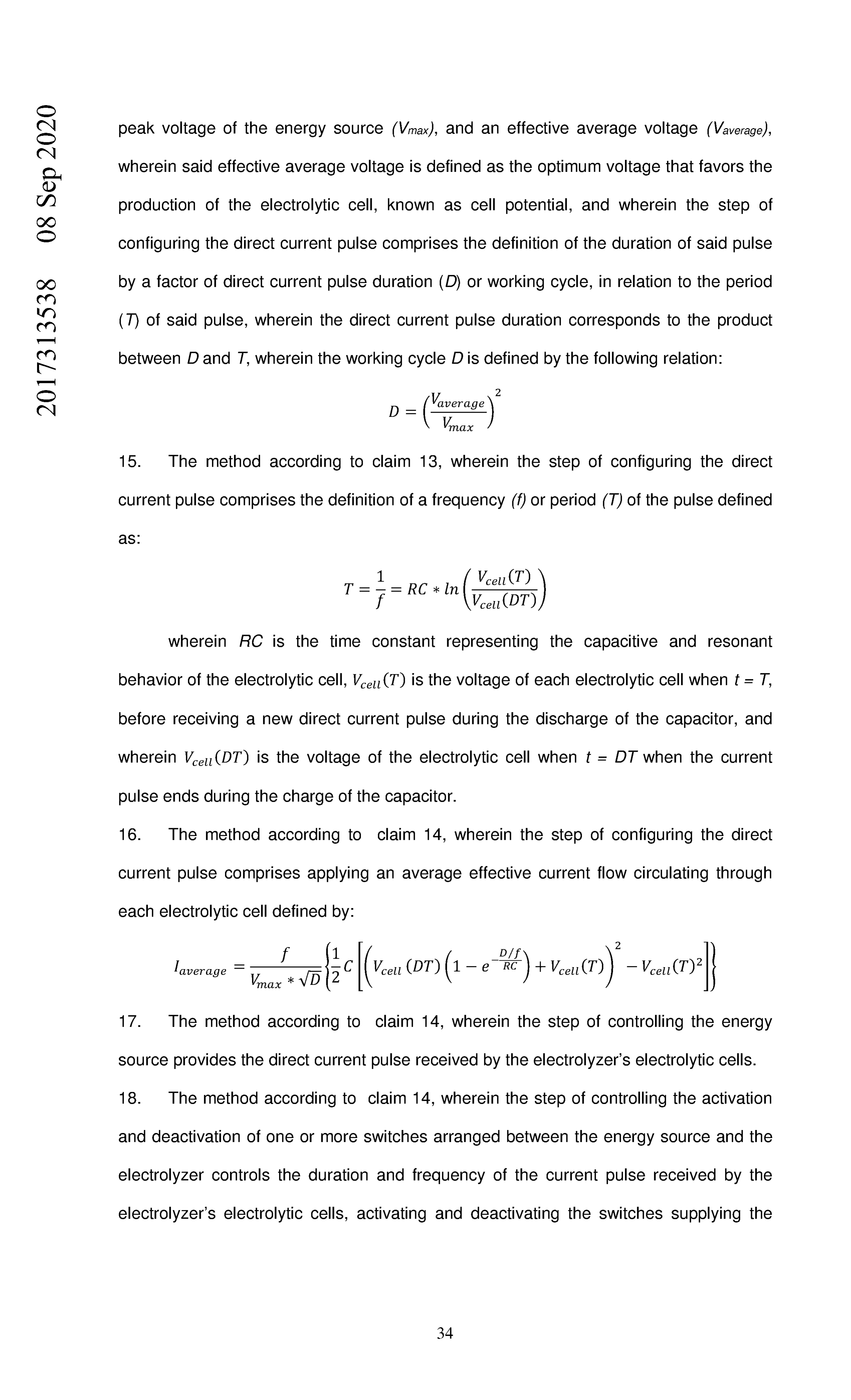

Page 37

peak voltage of the energy source (Vmax), and an effective average voltage(Vaverage), wherein said effective average voltage is defined as the optimum voltage that favors the production of the electrolytic cell, known as cell potential, and wherein the step of configuring the direct current pulse comprises the definition of the duration of said pulse by a factor of direct current pulse duration (D) or working cycle, in relation to the period (T) of said pulse, wherein the direct current pulse duration corresponds to the product between D and T, wherein the working cycle D is defined by the following relation:

15. The method according to claim 13, wherein the step of configuring the direct current pulse comprises the definition of a frequency (f) or period (T) of the pulse defined

wherein RC is the time constant representing the capacitive and resonant behavior of the electrolytic cell, Veii(T) is the voltage of each electrolytic cell when t = T, before receiving a new direct current pulse during the discharge of the capacitor, and wherein Vei(DT) is the voltage of the electrolytic cell when t = DT when the current pulse ends during the charge of the capacitor.

16. The method according to claim 14, wherein the step of configuring the direct current pulse comprises applying an average effective current flow circulating through each electrolytic cell defined by:

Average = -C (Vce (DT) (1 - e RC + Vceu(T) - ceui(T

17. The method according to claim 14, wherein the step of controlling the energy source provides the direct current pulse received by the electrolyzer's electrolytic cells. 18. The method according to claim 14, wherein the step of controlling the activation and deactivation of one or more switches arranged between the energy source and the electrolyzer controls the duration and frequency of the current pulse received by the electrolyzer's electrolytic cells, activating and deactivating the switches supplying the

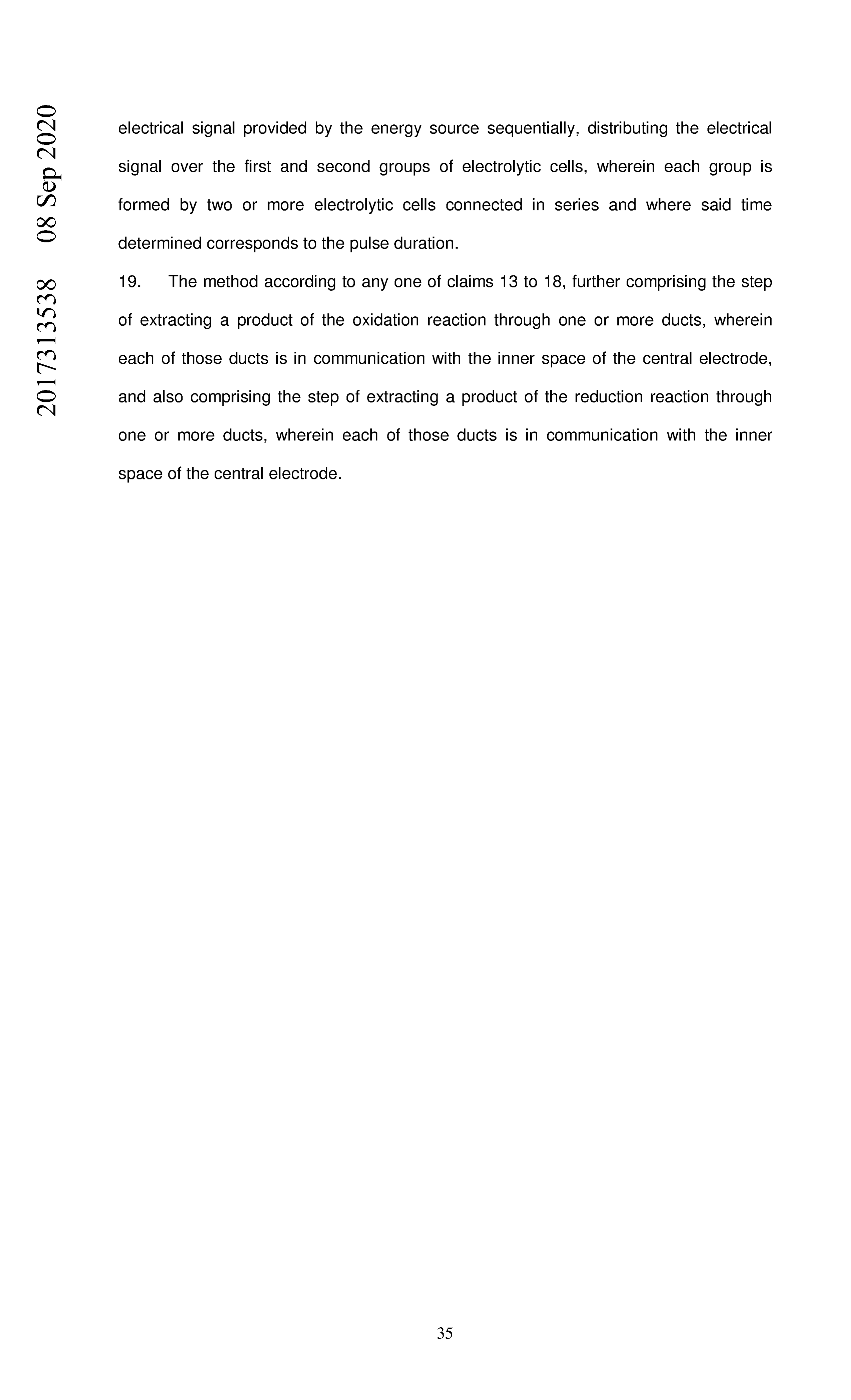

Page 38

electrical signal provided by the energy source sequentially, distributing the electrical signal over the first and second groups of electrolytic cells, wherein each group is formed by two or more electrolytic cells connected in series and where said time determined corresponds to the pulse duration.

19. The method according to any one of claims 13 to 18, further comprising the step of extracting a product of the oxidation reaction through one or more ducts, wherein each of those ducts is in communication with the inner space of the central electrode, and also comprising the step of extracting a product of the reduction reaction through one or more ducts, wherein each of those ducts is in communication with the inner space of the central electrode.

Page 39

Drawing sheet — no readable text.

Page 40

Drawing sheet — no readable text.

Page 41

Drawing sheet — no readable text.

Page 42

Drawing sheet — no readable text.

Page 43

Drawing sheet — no readable text.

Page 44

Drawing sheet — no readable text.

Page 45

Drawing sheet — no readable text.

Page 46

Drawing sheet — no readable text.
